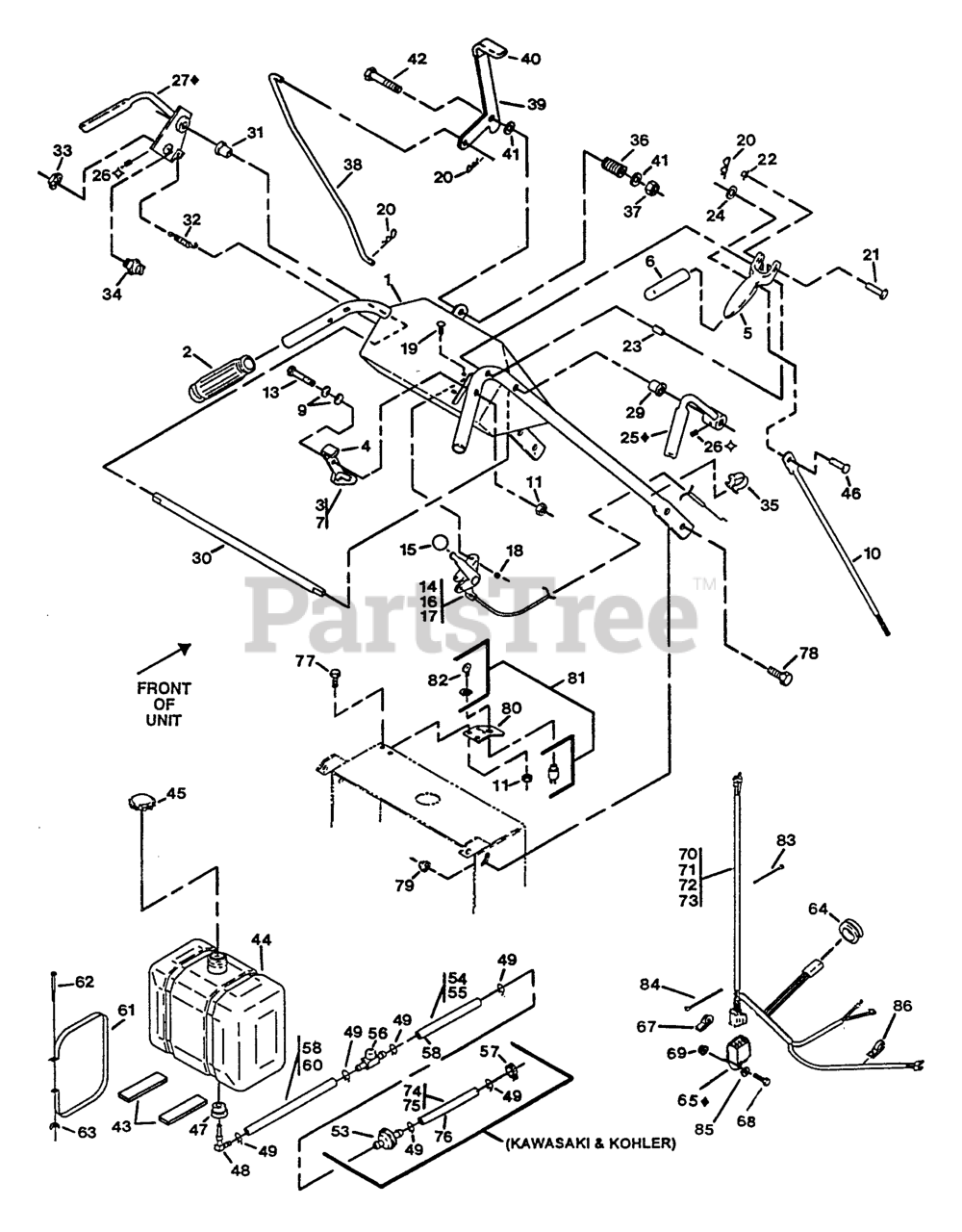

M48-14K-5 - Exmark 48" Metro Walk-Behind Mower, 14hp Kawasaki (SN: 115000 - 129999) (1996) Upper Handles And Controls Parts Diagram

48" Metro Walk-Behind Mower, 14hp Kawasaki

Upper Handles And Controls Parts Diagram

  • Title

1

Exmark 1-322181-03

103-0229
(Superseded to 103-0229)

$854.99

$

Usually ships in 3-6 days

0

Exmark 1-322179-03

103-0230
(Superseded to 103-0230)

$578.99

$

Usually ships in 3-6 days

0

2

Exmark 1-303097

104-9838
(Superseded to 104-9838)

$5.99

$

In Stock, Qty 20+

0

3

Exmark 1-302005

LATCH,W/GRIP LH

$23.99

$

In Stock, only 1 left!

0

4

Exmark 1-303019

GRIP-LATCH

$2.99

$

In Stock, Qty 5

0

5

Exmark 1-302006

DRIVE LEVER ASM

$55.99

$

In Stock, Qty 7

0

6

Exmark 1-303021

GRIP-LEVER, DRIVE

$1.49

$

In Stock, Qty 17

0

7

Exmark 1-302007

LATCH,W/GRIP RH

$

$

Not available

Exmark 1-303019

GRIP-LATCH

$2.99

$

In Stock, Qty 5

0

9

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0

10

Exmark 1-323359

LINKAGE-WHEEL, DRIVE

$21.99

$

In Stock, Qty 6

0

11

Exmark 1-804255

3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

Exmark 1-804255

3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

13

Exmark 1-800257

321-10
(Superseded to 321-10)

$1.49

$

In Stock, Qty 20+

0

14

Exmark 1-323322

CABLE-CONTROL, THROTTLE

$66.99

$

Usually ships in 3-6 days

0

15

Exmark 1-513592

KNOB-BALL

$6.99

$

In Stock, Qty 18

0

16

Exmark 1-323377

1-323552
(Superseded to 1-323552)

$

$

Not available

Exmark 1-513592

KNOB-BALL

$6.99

$

In Stock, Qty 18

0

17

Exmark 1-543697

1-633696
(Superseded to 1-633696)

$62.99

$

In Stock, only 1 left!

0

Exmark 1-513592

KNOB-BALL

$6.99

$

In Stock, Qty 18

0

18

Exmark 1-804252

3296-2
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

19

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

20

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

21

Exmark 1-808250

PIN-LEVER, DRIVE

$2.99

$

In Stock, Qty 20+

0

22

Exmark 1-803001

NUT-PUSH

$1.49

$

In Stock, Qty 20+

0

23

Exmark 1-806340

PIN-ROLL
(Superseded to 1-806340)

$5.49

$

In Stock, Qty 20+

0

24

Exmark 1-805258

3256-3
(Superseded to 3256-3)

$0.99

$

In Stock, Qty 20+

0

25

Exmark 1-302138-03

1-412185-03
(Superseded to 1-412185-03)

Note: OPC refers to Operator Presence Control.

$81.99

$

In Stock, only 4 left!

0

26

Exmark 1-803322

SCREW-SET

Note: Use Pro-lock (Nut Type) Part No. 840022 (.5 mm tube) on setscrew threads.

$1.49

$

In Stock, Qty 20+

0

Exmark 1-840023

PRO-LOCK-RETAINING 1

Note: Not Illustrated Use Pro-lock (Retaining) on inside of OPC hub (See Operator's Manual).

$21.99

$

In Stock, only 1 left!

0

27

Exmark 1-602507-03

DISCONTINUED (EXMARK)

Note: OPC refers to Operator Presence Control.

$

$

Not available

Exmark 1-803322

SCREW-SET

$1.49

$

In Stock, Qty 20+

0

Exmark 1-840023

PRO-LOCK-RETAINING 1

Note: Not Illustrated Use Pro-lock (Retaining) on inside of OPC hub (See Operator's Manual).

$21.99

$

In Stock, only 1 left!

0

29

Exmark 1-303365

BUSHING-NYLON

$5.49

$

In Stock, Qty 20+

0

30

Exmark 1-303474

ROD,CONNECTING

$

$

Not available

31

Exmark 1-303369

BUSHING,FLANGED

$

$

Not available

32

Exmark 1-303363

SPRING-EXTENSION

$6.49

$

In Stock, Qty 11

0

33

Exmark 1-803034

DISCONTINUED (EXMARK)

$

$

Not available

34

Exmark 1-303372

SWITCH,OPERATOR CNTRL

$96.99

$

Usually ships in 3-6 days

0

35

Exmark 1-303088

CLIP-CABLE

$2.99

$

Usually ships in 3-6 days

0

36

Exmark 1-303160

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

37

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

38

Exmark 1-323298

LINKAGE-BLADE, UPPER

$90.99

$

Usually ships in 3-6 days

0

39

Exmark 1-322157

116-6331
(Superseded to 116-6331)

$54.99

$

Usually ships in 3-6 days

0

40

Exmark 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 6

0

41

Exmark 1-805260

3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

42

Exmark 1-800296

323-10
(Superseded to 323-10)

$0.99

$

In Stock, Qty 20+

0

43

Exmark 1-303315

PAD,PLASTIC TANK

$

$

Not available

44

Exmark 1-543364

DISCONTINUED

$

$

Not available

45

Exmark 1-513508

CAP-FUEL

$27.99

$

In Stock, only 1 left!

0

46

Exmark 1-323370

PIN,CLEVIS

$5.99

$

Usually ships in 3-6 days

0

47

Exmark 1-513645

46-6560
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

48

Exmark 1-543277

ELBOW-TANK, FUEL

$12.99

$

In Stock, Qty 6

0

49

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 20+

0

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 20+

0

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 20+

0

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 20+

0

53

Exmark 1-303197

109585
(Superseded to 139-5916)

$9.49

$

In Stock, Qty 20+

0

54

Exmark 1-603776

HOSE-LINE, FUEL

$

$

Not available

55

Exmark 1-303471

LINE-FUEL

$8.49

$

In Stock, only 2 left!

0

56

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 5

0

57

Exmark 1-303308

CLAMP-HOSE

$

$

Not available

58

Exmark 1-603955

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

59

Exmark 1-603955

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

60

Exmark 1-543649

DISCONTINUED

$

$

Not available

61

Exmark 1-303465-03

1-303465
(Superseded to 1-303465)

$41.99

$

In Stock, only 1 left!

0

62

Exmark 1-801062

SCRW,MACH CRPH

$2.99

$

In Stock, only 1 left!

0

63

Exmark 1-543792

WINGNUT

$6.49

$

In Stock, Qty 14

0

64

Exmark 1-543296

GROMMET

$8.49

$

In Stock, only 4 left!

0

65

Exmark 1-323430

MODULE-INTERLOCK

Note: OPC refers to Operator Presence Control

$140.99

$

In Stock, only 4 left!

0

67

Exmark 1-323229

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

0

68

Exmark 1-800252

321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

69

Exmark 1-804255

3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

70

Exmark 1-323432

DISCONTINUED

$

$

Not available

71

Exmark 1-323433

DISCONTINUED

$

$

Not available

72

Exmark 1-323434

DISCONTINUED

$

$

Not available

73

Exmark 1-323429

DISCONTINUED

$

$

Not available

74

Exmark 1-603954

HOSE-LINE, FUEL

$8.99

$

In Stock, only 1 left!

0

75

Exmark 1-303022

HOSE-FUEL

$5.49

$

In Stock, only 3 left!

0

76

Exmark 1-303471

LINE-FUEL

$8.49

$

In Stock, only 2 left!

0

77

Exmark 1-800251

321-3
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

78

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

79

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

80

Exmark 1-403118-01

DISCONTINUED

$

$

Not available

81

Exmark 1-403121

SWITCH & KEY (INCLUDES NU

$22.99

$

In Stock, Qty 5

0

82

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0

83

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

84

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

85

Exmark 1-805256

3256-2
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

86

Exmark 1-323423

1-323229
(Superseded to 1-323229)

$2.99

$

Usually ships in 3-6 days

0
