M48-12.5KO-5 - Exmark 48" Metro Walk-Behind Mower, 12.5hp Kohler (SN: 090000 - 101999) (1994) Engine Deck Group Supplement Parts Diagram

48" Metro Walk-Behind Mower, 12.5hp Kohler

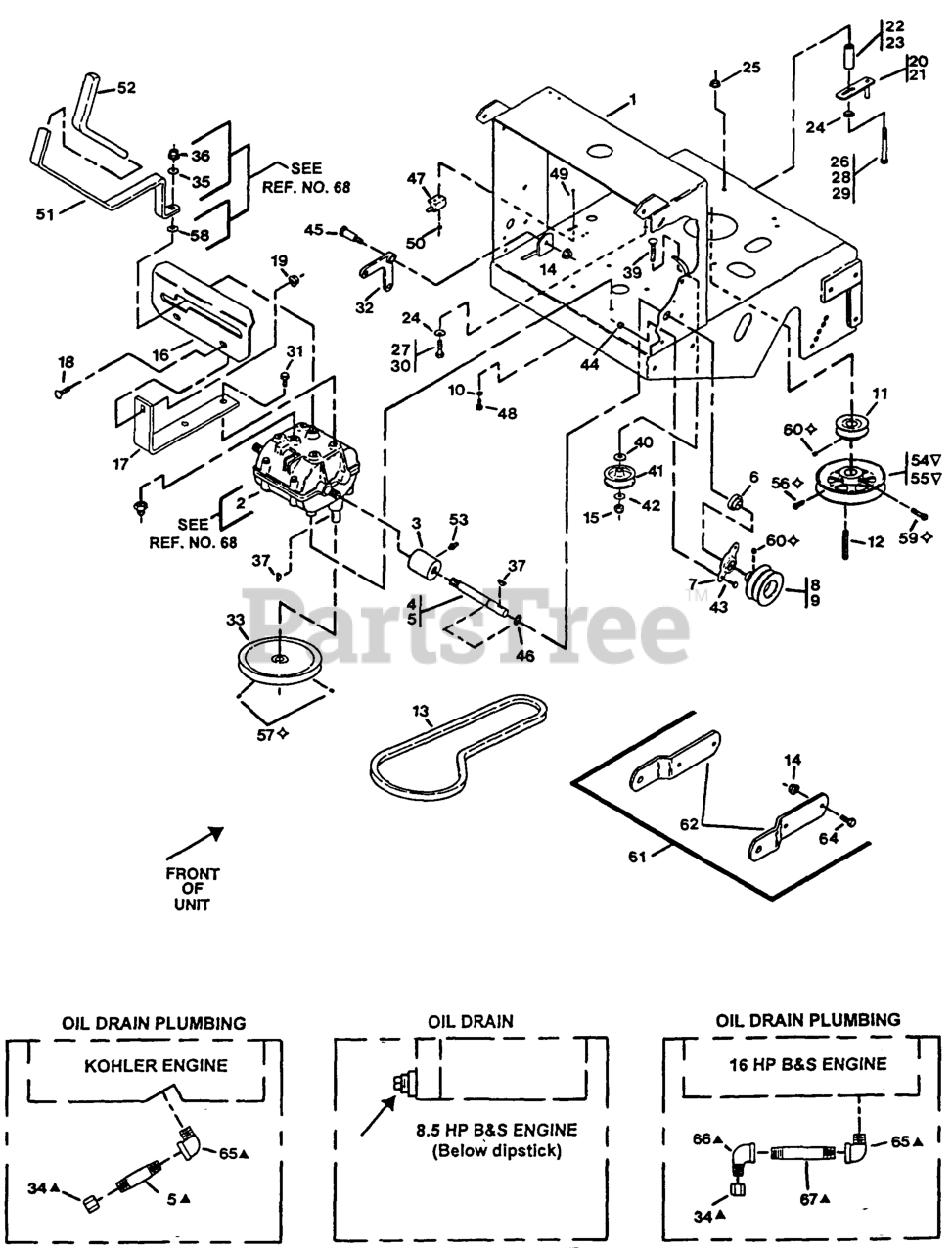

Engine Deck Group Supplement Parts Diagram

  • Title

1

Exmark 1-322151

116-6131
(Superseded to 116-6131)

$948.99

$

Usually ships in 3-6 days

0

2

Exmark 1-323378

1-301024
(Superseded to 1-301024)

$948.99

$

Usually ships in 3-6 days

0

3

Exmark 1-323275

1-324157
(Superseded to 1-324157)

$86.99

$

Usually ships in 3-6 days

0

4

Exmark 1-323274

DISCONTINUED

$

$

Not available

5

Exmark 1-323326

NIPPLE

Note: Use Teflon Pipe Sealant (or equivalent) on all threaded areas.

$

$

Not available

6

Exmark 1-323252

BEARING-SHAFT

$18.99

$

In Stock, Qty 8

0

7

Exmark 1-323254

FLANGE-OUTPUT

$10.99

$

In Stock, Qty 11

0

8

Exmark 1-323257-03

103-6511
(Superseded to 103-6511)

$119.99

$

In Stock, only 4 left!

0

9

Exmark 1-323363-03

103-6512
(Superseded to 103-6512)

Note: (Single Belt Pulley for 32" Model)

$119.99

$

Usually ships in 3-6 days

0

10

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

11

Exmark 1-323256

SHEAVE-TRANSMISSION

$76.99

$

In Stock, only 1 left!

0

Exmark 1-840023

PRO-LOCK-RETAINING 1

Note: Not Illustrated. [Reference to item 11, use Pro-Lock (Retaining) on sheave bore (Sheave Part No. 323256)]

$18.99

$

In Stock, only 1 left!

0

12

Exmark 1-807264

KEY,MACH 1/4X1/4X2-5/8

$5.49

$

In Stock, Qty 7

0

13

Exmark 1-323280

BELT,TRANS DRIVE
(Superseded to 1-323280-SL)

$35.99

$

In Stock, only 4 left!

0

14

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

15

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 16

0

16

Exmark 1-323387-03

103-3498
(Superseded to 103-3498)

$59.99

$

Usually ships in 3-6 days

0

17

Exmark 1-323389-03

BRACKET-PLATE, SHIFT

$30.99

$

In Stock, only 2 left!

0

18

Exmark 1-807503

3230-1
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

19

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

20

Exmark 1-322110

GUIDE-BELT

Note: (32" and 36")

$12.99

$

In Stock, Qty 8

0

21

Exmark 1-322110

GUIDE-BELT

Note: (48" and 52")

$12.99

$

In Stock, Qty 8

0

22

Exmark 1-323228-01

1-323228
(Superseded to 1-323228)

Note: (32" and 36")

$11.99

$

In Stock, only 3 left!

0

23

Exmark 1-323228-01

1-323228
(Superseded to 1-323228)

Note: (48" and 52")

$11.99

$

In Stock, only 3 left!

0

24

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

25

Exmark 1-809001

32128-20
(Superseded to 32128-20)

Note: (Only with B/S Engines)

$1.49

$

In Stock, Qty 20+

0

26

Exmark 1-800283

322-22
(Superseded to 322-22)

Note: (With 48" & 52" Model B&S Engine)

$4.49

$

In Stock, Qty 12

0

26

Exmark 1-800283

322-22
(Superseded to 322-22)

Note: (With 32" Model 8.5 HP B&S Engine)

$4.49

$

In Stock, Qty 12

0

27

Exmark 1-800275

322-7
(Superseded to 322-7)

Note: (With 48" & 52" Model B&S Engine)

$1.49

$

In Stock, Qty 20+

0

27

Exmark 1-800275

322-7
(Superseded to 322-7)

Note: (With 32" Model 8.5 HP B&S Engine)

$1.49

$

In Stock, Qty 20+

0

28

Exmark 1-809065

SCRW,CAP HH M8X1.25X75M

Note: (32" and 36" Kawasaki & Kohler)

$2.99

$

Usually ships in 3-6 days

0

29

Exmark 1-809065

SCRW,CAP HH M8X1.25X75M

Note: (48" and 52" Kawasaki & Kohler)

$2.99

$

Usually ships in 3-6 days

0

30

Exmark 1-809018

33114-030
(Superseded to 33114-030)

Note: (32" and 36" Kawasaki & Kohler)

$1.49

$

Usually ships in 3-6 days

0

30

Exmark 1-809018

33114-030
(Superseded to 33114-030)

Note: (48" and 52" Kawasaki & Kohler)

$1.49

$

Usually ships in 3-6 days

0

31

Exmark 1-809013

9264964
(Superseded to 9264964)

$1.49

$

Usually ships in 3-6 days

0

32

Exmark 1-303186

BELLCRANK

$58.99

$

In Stock, only 1 left!

0

33

Exmark 1-323278

SHEAVE-TRANSMISSION

$80.99

$

In Stock, only 4 left!

0

34

Exmark 1-543233

CAP-HEX

Note: Use Teflon Pipe Sealant (or equivalent) on all threaded areas.

$

$

Not available

35

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.49

$

In Stock, Qty 20+

0

36

Exmark 1-804264

3296-6
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

37

Exmark 1-807009

3257-5
(Superseded to 3257-5)

$5.99

$

In Stock, only 1 left!

0

38

Exmark 1-303282

SWITCH-START, NEUTRAL

$50.99

$

In Stock, only 2 left!

0

39

Exmark 1-807511

3231-6
(Superseded to 3231-6)

$2.99

$

In Stock, Qty 19

0

40

Exmark 1-805262

3256-5
(Superseded to 3256-5)

$0.99

$

In Stock, Qty 9

0

41

Exmark 1-323285

130-8362
(Superseded to 130-8362)

$38.99

$

In Stock, Qty 7

0

42

Exmark 1-805259

3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

43

Exmark 1-800251

321-3
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

44

Exmark 1-804255

3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

45

Exmark 1-603403

BOLT-SHOULDER

$17.99

$

In Stock, only 2 left!

0

46

Exmark 1-808509

32120-64
(Superseded to 32120-64)

$3.49

$

In Stock, only 2 left!

0

47

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

48

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 16

0

49

Exmark 1-803028

3290-500
(Superseded to 3290-500)

$1.49

$

In Stock, Qty 20+

0

50

Exmark 1-804252

3296-2
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

51

Exmark 1-323376

103-1606
(Superseded to 103-1606)

$54.99

$

Usually ships in 3-6 days

0

52

Exmark 1-323250

DISCONTINUED (EXMARK)

$

$

Not available

53

Exmark 1-811006

302-19
(Superseded to 302-19)

$2.49

$

In Stock, Qty 8

0

54

Exmark 1-303498

SHEAVE,BLADE DRIVE

Note: (For 36" and 52" Models) Apply anti-seize compound to pulley bore.

$145.99

$

In Stock, only 2 left!

0

55

Exmark 1-403087

1-403160
(Superseded to 1-403160)

Note: (For 32" and 48" Models) Apply anti-seize compound to pulley bore.

$79.99

$

Usually ships in 3-6 days

0

56

Exmark 1-803022

SCREW-SET

Note: Use Pro-lock (Nut type) Part No. 840022 (.5mm tube) on setscrew threads.

$2.99

$

In Stock, Qty 20+

0

57

Exmark 1-803293

3245-41
(Superseded to 3245-41)

Note: Use Pro-lock (Nut type) Part No. 840022 (.5mm tube) on setscrew threads.

$2.99

$

In Stock, only 3 left!

0

58

Exmark 1-323379

WASHER

$3.49

$

In Stock, only 2 left!

0

59

Exmark 1-803046

30-1710
(Superseded to 30-1710)

Note: Use Pro-lock (Nut type) Part No. 840022 (.5mm tube) on setscrew threads.

$10.99

$

In Stock, only 2 left!

0

60

Exmark 1-803310

SCREW-SET

Note: Use Pro-lock (Nut type) Part No. 840022 (.5mm tube) on setscrew threads.

$2.99

$

In Stock, only 1 left!

0

61

Exmark 1-301023

Sulky Hitch Kit, Metro

$

$

Currently unavailable

62

Exmark 1-323318-01

HITCH-SULKY

$

$

Not available

14

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

64

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

65

Exmark 1-303431

FITTING-ELBOW-90

Note: Use Teflon Pipe Sealant (or equivalent) on all threaded areas.

$

$

Not available

66

Exmark 1-403124

ELBOW-90 DEG

Note: Use Teflon Pipe Sealant (or equivalent) on all threaded areas.

$

$

Not available

67

Exmark 1-543232

NIPPLE

Note: Use Teflon Pipe Sealant (or equivalent) on all threaded areas.

$21.99

$

Usually ships in 3-6 days

0

68

Exmark 1-321009

1-301024
(Superseded to 1-301024)

Note: Part No's 303327, 323378, 323379, and 804264 are included in the Metro Transmission Kit.

$948.99

$

Usually ships in 3-6 days

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

Note: Use on setscrew threads

$18.99

$

Usually ships in 3-6 days

0
