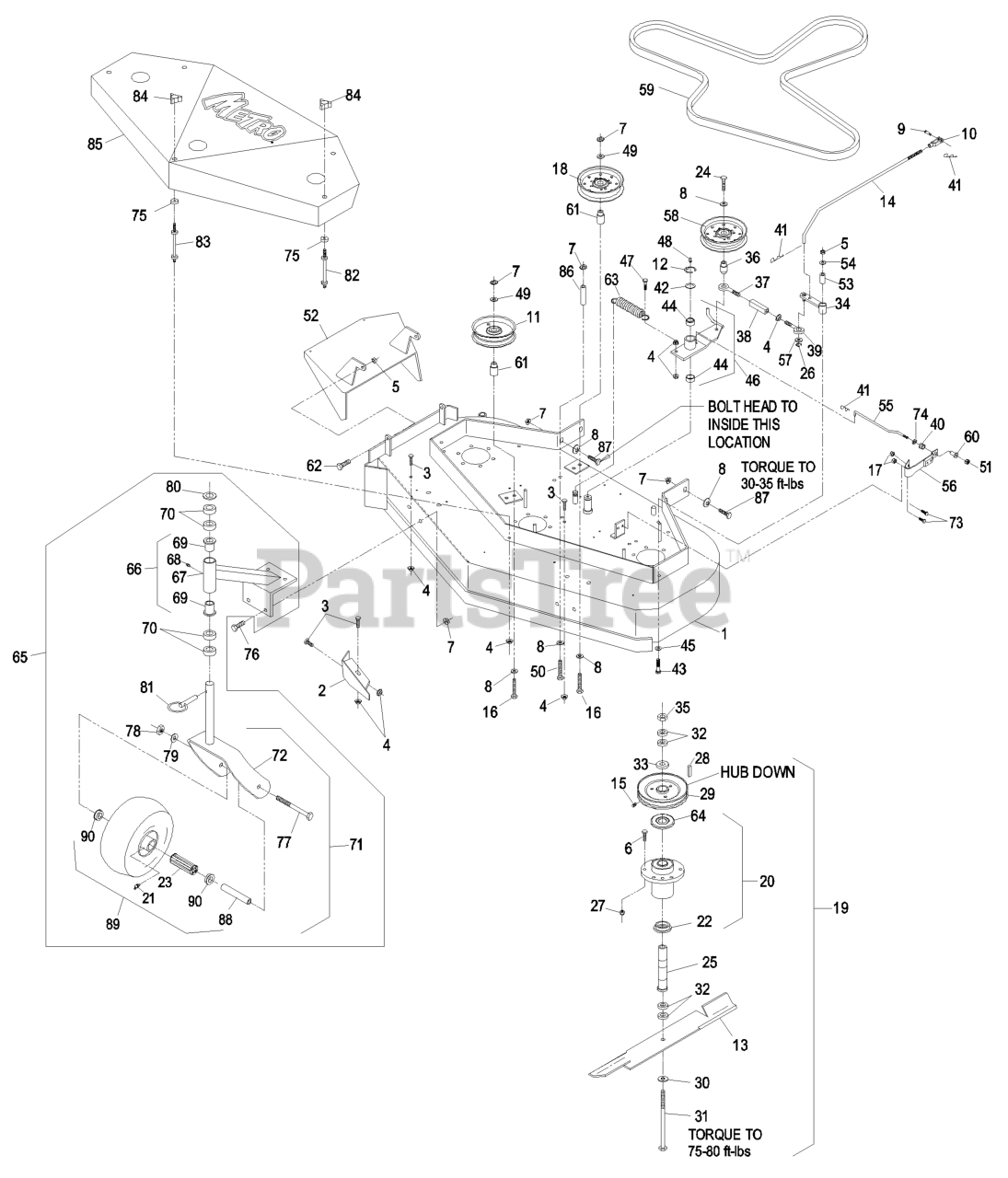

Exmark M3615KCC - Exmark 36" Metro Walk-Behind Mower, 15hp Kohler (SN: 440000 - 509999) (2004) Mower Deck 48" Parts Lookup with Diagrams

1

Exmark 1-404257

DECK-SERVICE, 48

$2899.99

$

Usually ships in 3-6 days

2

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

9

Exmark 1-303105

YOKE-ADJUSTABLE

$13.99

$

In Stock, only 2 left!

11

Exmark 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

13

Exmark 103-2527

103-6583-S

(Superseded to 103-6583-S) 

$34.99

$

In Stock, Qty 20+

Exmark 103-2517

103-6581-S

(Superseded to 103-6581-S) 

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N's MK483.

$36.99

$

In Stock, Qty 20+

Exmark 103-2507

103-6738-S

(Superseded to 103-6738-S) 

Note: Optional

$34.99

$

In Stock, Qty 7

Exmark 103-1577

103-1577-S

(Superseded to 103-1577-S) 

$39.99

$

Usually ships in 3-6 days

14

Exmark 1-323303

ARM-ASSIST, LINKAGE

$26.99

$

In Stock, only 2 left!

15

Exmark 1-803310

SCREW-SET

Note: Use Pro-lock Nut Type (p/n 1-840022 .5 ml tube) on the setscrews.

$2.99

$

In Stock, only 2 left!

16

Exmark 1-403186

126-9187

(Superseded to 126-9187) 

$63.99

$

In Stock, Qty 10

19

Exmark 103-2555

103-8387

(Superseded to 103-8387) 

$613.99

$

Usually ships in 3-6 days

20

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$282.99

$

In Stock, Qty 13

21

Exmark 302-61

FITTING-GREASE

$12.99

$

In Stock, Qty 7

22

Exmark 103-2535

SPACER-GUARD, BOTTOM

$13.99

$

In Stock, only 4 left!

23

Exmark 1-513809

BEARING

$37.99

$

In Stock, Qty 20+

24

Exmark 702809

SCREW-HH

$5.49

$

In Stock, only 3 left!

25

Exmark 1-323529

TUBE-SPINDLE, SHORT

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$94.99

$

In Stock, Qty 8

26

Exmark 32120-35

RING-RETAINING, EXT

$4.49

$

In Stock, only 3 left!

27

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

28

Exmark 1-807267

KEY

$2.99

$

In Stock, Qty 20+

29

Exmark 1-403183

SHEAVE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$74.99

$

In Stock, Qty 6

30

Exmark 1-513208

WASHER-SPRING

$9.49

$

In Stock, Qty 20+

31

Exmark 1-800861

SCREW-CAP, HH

$20.99

$

In Stock, Qty 15

32

Exmark 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

33

Exmark 1-323339

WASHER-RETAINER, SHEAVE

$5.49

$

In Stock, Qty 20+

34

Exmark 1-322235

ARM-ASSIST, 32/36

$58.99

$

In Stock, only 2 left!

35

Exmark 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

36

Exmark 1-303434

BUSHING-ENGAGEMENT

$15.99

$

In Stock, Qty 20+

37

Exmark 1-303348

EYEBOLT-THREAD, LH

$6.99

$

In Stock, Qty 20+

38

Exmark 1-303236

BODY-TURNBUCKLE

$22.99

$

In Stock, Qty 15

39

Exmark 1-303238

EYEBOLT-THREAD, RH

$6.99

$

In Stock, Qty 20+

40

Exmark 1-323747

SPRING-COMPRESSION

$3.49

$

In Stock, Qty 9

41

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

42

Exmark 1-303352

WASHER-SPINDLE

$2.99

$

In Stock, Qty 13

43

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

44

Exmark 1-323729

SLEEVE-BEARING

$5.49

$

In Stock, Qty 20+

45

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

46

Exmark 103-3600

IDLER ARM ASM

$141.99

$

Usually ships in 3-6 days

47

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

48

Exmark 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

49

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

50

Exmark 323-20

SCREW-HH

$3.99

$

In Stock, Qty 12

51

Exmark 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

52

Exmark 1-402106-01

WLD,CHUTE 48

$187.99

$

In Stock, only 2 left!

53

Exmark 1-403179

TUBE-PIVOT

$19.99

$

In Stock, only 2 left!

54

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

55

Exmark 1-323714

ROD-BRAKE

$29.99

$

In Stock, only 2 left!

56

Exmark 1-324372

PAD AND SPRING ASM

$72.99

$

In Stock, Qty 8

57

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

58

Exmark 1-603843

132-4718

(Superseded to 132-4718) 

$35.99

$

In Stock, Qty 20+

59

Exmark 1-403174

BELT,BLADE 48

(Superseded to 1-403174-SL) 

$100.99

$

In Stock, Qty 20+

60

Exmark 1-323746

SPACER-FLANGED

$1.49

$

In Stock, Qty 20+

61

Exmark 1-403184

1-413113

(Superseded to 1-413113) 

$6.49

$

In Stock, Qty 20+

62

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

63

Exmark 1-323071

SPRING-EXTENSION

$17.99

$

In Stock, Qty 20+

64

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$5.49

$

In Stock, Qty 12

65

Exmark 103-1238

ASM,CASTER/MOUNT

Note: Models with Standard pistol grip handles only.

$345.99

$

Usually ships in 3-6 days

Exmark 103-2281

116-8245

(Superseded to 116-8245) 

Note: Models with ECS handles only.

$853.99

$

Usually ships in 3-6 days

66

Exmark 1-302203

SUPPORT ASM

Note: Models with Standard pistol grip handles only.

$318.99

$

Usually ships in 3-6 days

Exmark 103-2296

ASM,CSTR SUPPORT W/WEIGHT

Note: Models with ECS handles only.

$347.99

$

In Stock, only 1 left!

67

Exmark 1-302194-01

1-302203

(Superseded to 1-302203) 

Note: Models with Standard pistol grip handles only.

$318.99

$

Usually ships in 3-6 days

Exmark 103-2297-01

103-2296

(Superseded to 103-2296) 

Note: Models with ECS handles only.

$347.99

$

In Stock, only 1 left!

68

Exmark 302-52

FITTING-GREASE

$6.99

$

In Stock, Qty 20+

69

Exmark 1-303514

BEARING-FLANGED

$13.99

$

In Stock, Qty 20+

70

Exmark 1-303314

SPACER-CASTER

$6.99

$

In Stock, Qty 20+

71

Exmark 103-1236

ASM,CASTER/WHEEL

$220.99

$

Usually ships in 3-6 days

72

Exmark 1-322145-01

116-7942-01

(Superseded to 116-7942-01) 

$101.99

$

In Stock, only 1 left!

73

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

74

Exmark 1-323748

RING-PUSH ON

$1.99

$

In Stock, Qty 14

75

Exmark 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

76

Exmark 323-4

SCREW-HH

$4.49

$

In Stock, Qty 20+

77

Exmark 325-20

SCREW-HH

$8.49

$

In Stock, Qty 20+

78

Exmark 3217-9

NUT-HH

$0.99

$

In Stock, Qty 20+

79

Exmark 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

80

Exmark 1-513338

WASHER-FLAT

$4.49

$

In Stock, Qty 20+

81

Exmark 1-809020

$12.99

$

In Stock, Qty 6

82

Exmark 1-303537

STUD-SHIELD, BELT (SHORT)

$6.99

$

In Stock, Qty 20+

83

Exmark 1-303536

STUD-SHIELD, BELT (LONG)

$8.49

$

In Stock, Qty 20+

84

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

85

Exmark 1-404238

116-2707

(Superseded to 116-2707) 

$586.99

$

In Stock, only 1 left!

86

Exmark 1-403188

SPACER

$15.99

$

Usually ships in 3-6 days

87

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

88

Exmark 103-2169

SPACER FRONT CASTER

Note: Units have been built with two versions of the wheel and tire assembly (Kit 103-2171 services both versions). Some components are not interchangeable between versions. Component required for caster assembly version "A", which can be identified by the foll

$15.99

$

In Stock, Qty 11

Exmark 1-513547

SPACER

Note: Units have been built with two versions of the wheel and tire assembly (Kit 103-2171 services both versions). Some components are not interchangeable between versions. Component required for caster assembly version "B", which can be identified by the foll

$13.99

$

In Stock, Qty 20+

89

Exmark 103-2171

KIT, SP CASTER WHEEL REPL

$137.99

$

In Stock, Qty 17

90

Exmark 103-2170

BUSHING, SP CASTER

Note: Units have been built with two versions of the wheel and tire assembly (Kit 103-2171 services both versions). Some components are not interchangeable between versions. Component required for caster assembly version "A", which can be identified by the foll

$9.49

$

In Stock, Qty 6

Exmark 1-513810

BUSHING

Note: Units have been built with two versions of the wheel and tire assembly (Kit 103-2171 services both versions). Some components are not interchangeable between versions. Component required for caster assembly version "B", which can be identified by the foll

$6.49

$

In Stock, Qty 20+
