M3613KA - Exmark 36" Metro Walk-Behind Mower, 13hp Kawasaki (SN: 130000 - 149999) (1997) 52" Mower Deck II Parts Diagram

36" Metro Walk-Behind Mower, 13hp Kawasaki

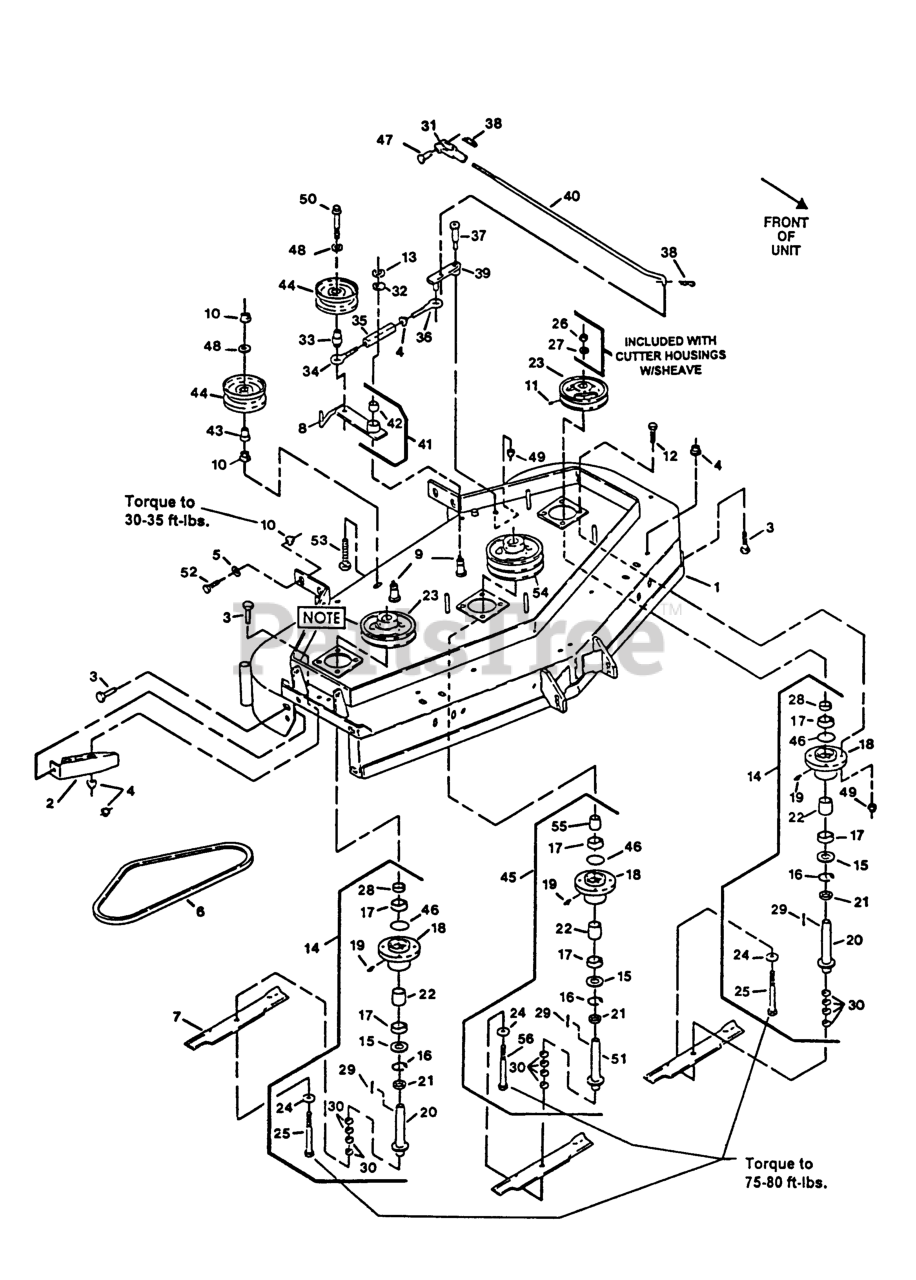

52" Mower Deck II Parts Diagram

  • Title

1

Exmark 1-402060

1-402101
(Superseded to 1-402101)

Note: Deck weldmt does not include flow control baffles - Flow control baffle kit is available P/N 611104

$

$

Not available

Exmark 1-402079

1-402101
(Superseded to 1-402101)

Note: Deck weldmt does not include flow control baffles - Flow control baffle kit is available P/N 611104

$

$

Not available

Exmark 1-402101

DISCONTINUED

Note: Deck weldmt does include welded in flow control baffles

$

$

Not available

Exmark 1-402098

1-402101
(Superseded to 1-402101)

Note: Deck weldmt does include welded in flow control baffles

$

$

Not available

2

Exmark 1-402057-01

WLD, DISCHARGE BAFFLE

$148.99

$

Usually ships in 3-6 days

0

3

Exmark 1-800270

322-2
(Superseded to 322-2)

$2.49

$

In Stock, Qty 13

0

4

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

5

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.49

$

In Stock, Qty 20+

0

6

Exmark 1-403105

DISCONTINUED

$

$

Not available

7

Exmark 1-633482

103-6584-S
(Superseded to 103-6584-S)

Note: 52"

$31.99

$

In Stock, Qty 11

0

Exmark 1-633485

103-6580-S
(Superseded to 103-6580-S)

$34.99

$

In Stock, Qty 13

0

Exmark 1-633484

103-6582-S
(Superseded to 103-6582-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N's MK522 ( units without flow control baffles welded in deck) or MK523 ( units with flow control baffles welded in deck)

$31.99

$

In Stock, Qty 20+

0

8

Exmark 1-302128

1-402109
(Superseded to 1-402109)

$127.99

$

In Stock, only 2 left!

0

9

Exmark 1-811006

302-19
(Superseded to 302-19)

$2.49

$

In Stock, Qty 8

0

10

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

11

Exmark 1-803310

SCREW-SET

Note: Use Pro-lock Nut Type (p/n 840022 .5 ml tube) on setscrews

$2.99

$

In Stock, only 1 left!

0

12

Exmark 1-800273

322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

13

Exmark 1-808505

32151-103
(Superseded to 32151-103)

$3.49

$

In Stock, Qty 9

0

14

Exmark 1-322166

ASM,HOUSING CUTTER

$846.99

$

Usually ships in 3-6 days

0

15

Exmark 1-323408

SEAL,DUST

$19.99

$

Usually ships in 3-6 days

0

16

Exmark 1-808506

RING,SNAP WLDS N5000-244

$6.99

$

In Stock, Qty 7

0

17

Exmark 1-303543

BEARING,HD SPINDLE

$42.99

$

Usually ships in 3-6 days

0

18

Exmark 1-323315

HOUSING,CUTTER

$117.99

$

In Stock, only 2 left!

0

19

Exmark 1-811001

302-52
(Superseded to 302-52)

$6.49

$

In Stock, Qty 20+

0

20

Exmark 1-322164

103-1871
(Superseded to 103-1871)

$111.99

$

Usually ships in 3-6 days

0

21

Exmark 1-323399

SPACER,BEARING &SPINDLE

$9.49

$

Usually ships in 3-6 days

0

22

Exmark 1-323400

SPACER,BRG/BRG

$9.99

$

In Stock, only 2 left!

0

23

Exmark 1-303535

1-403183
(Superseded to 1-403183)

Note: Pulley on the right hand side (from operators position) is turned upside down with the long part of the hub facing upward.

$69.99

$

In Stock, only 3 left!

0

24

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

25

Exmark 1-800861

SCREW-CAP, HH

$19.99

$

Usually ships in 3-6 days

0

26

Exmark 1-804510

3219-6
(Superseded to 3219-6)

$3.99

$

In Stock, Qty 20+

0

27

Exmark 1-323339

WASHER-RETAINER, SHEAVE

$5.49

$

Usually ships in 3-6 days

0

28

Exmark 1-323402

DISCONTINUED

$

$

Not available

29

Exmark 1-807267

KEY

$2.99

$

In Stock, only 2 left!

0

30

Exmark 1-303164

1-323539
(Superseded to 1-323539)

$2.49

$

In Stock, Qty 20+

0

31

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 2 left!

0

32

Exmark 1-303352

WASHER-SPINDLE

$2.99

$

In Stock, only 3 left!

0

33

Exmark 1-303434

BUSHING-ENGAGEMENT

$14.99

$

In Stock, only 1 left!

0

34

Exmark 1-303348

EYEBOLT-THREAD, LH

$6.49

$

In Stock, Qty 9

0

35

Exmark 1-303236

BODY-TURNBUCKLE

$21.99

$

In Stock, only 3 left!

0

36

Exmark 1-303238

EYEBOLT-THREAD, RH

$6.49

$

In Stock, Qty 7

0

37

Exmark 1-809011

BOLT,SHLDR KSKH

$

$

Not available

38

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

39

Exmark 1-302198

1-321021
(Superseded to 1-321021)

$87.99

$

Usually ships in 3-6 days

0

40

Exmark 1-323305

DISCONTINUED (EXMARK)

$

$

Not available

41

Exmark 1-302129

1-402109
(Superseded to 1-402109)

$127.99

$

In Stock, only 2 left!

0

42

Exmark 1-303144

BEARING,POWDERED METAL

$5.49

$

In Stock, only 4 left!

0

43

Exmark 1-543879

BUSHING,IDLER

$14.99

$

In Stock, only 1 left!

0

44

Exmark 1-603843

132-4718
(Superseded to 132-4718)

$34.99

$

In Stock, only 3 left!

0

45

Exmark 1-402077

DISCONTINUED

$

$

Not available

46

Exmark 1-303542

O-RING

$2.99

$

In Stock, only 2 left!

0

47

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 3 left!

0

48

Exmark 1-805259

3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

49

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

50

Exmark 1-803003

DISCONTINUED

$

$

Not available

51

Exmark 1-402075

103-1869
(Superseded to 103-1869)

$120.99

$

Usually ships in 3-6 days

0

52

Exmark 1-800293

323-7
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

53

Exmark 1-800029

BOLT,TAP HH3/8-16X2-1/4

$

$

Not available

54

Exmark 1-403133

1-403167
(Superseded to 1-403167)

$

$

Not available

55

Exmark 1-323404

SPACER,BEARING/SHEAVE

$23.99

$

Usually ships in 3-6 days

0

56

Exmark 1-800862

SCRW,CAP HH 5/8-18X8.5

$28.99

$

In Stock, only 1 left!

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

$18.99

$

Usually ships in 3-6 days

0

Exmark MK52-2

Micro-Mulch Accessory Kit

Note: Units without flow control baffles welded in deck.

$

$

Currently unavailable

Exmark MK523

Micro-Mulch Accessory Kit

Note: Units with flow control baffles welded in deck.

$

$

Currently unavailable

Exmark 1-850337

PAINT,SPRAY RED

$27.99

$

In Stock, Qty 16

0
