M3213KC - Exmark 32" Metro Walk-Behind Mower, 13hp Kohler (SN: 160000 - 189999) (1998) 48" Mower Deck Parts Diagram

32" Metro Walk-Behind Mower, 13hp Kohler

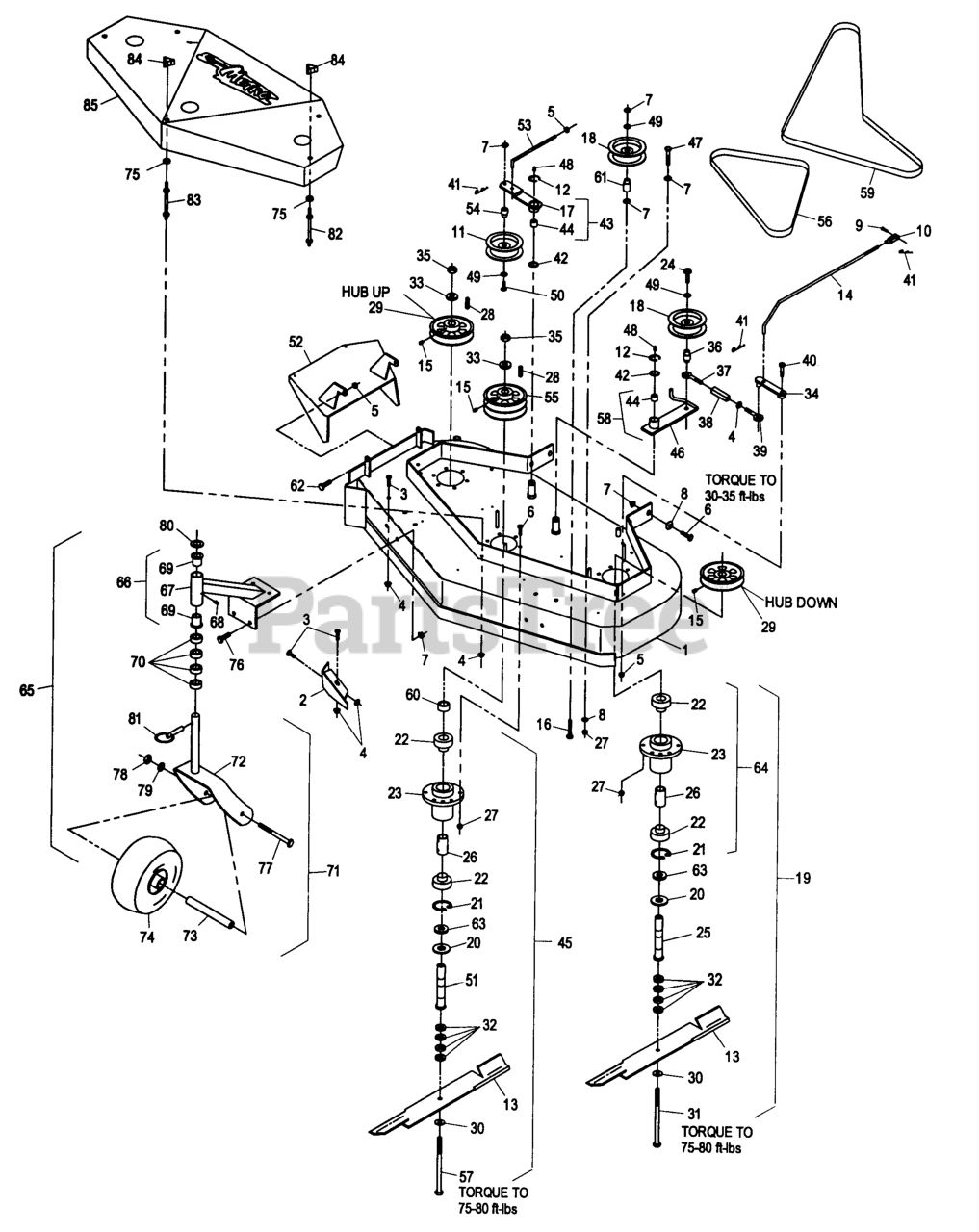

48" Mower Deck Parts Diagram

  • Title

1

Exmark 1-404239

DISCONTINUED (EXMARK)

Note: Deck weldmt does include welded in flow control baffles.

$

$

Not available

Exmark 1-402099

1-404239
(Superseded to 1-404239)

Note: Deck weldmt does include welded in flow control baffles.

$

$

Not available

2

Exmark 1-402107-01

BAFFLE-DOGLEG

$

$

Not available

3

Exmark 1-800270

322-2
(Superseded to 322-2)

$2.49

$

In Stock, Qty 13

0

4

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

5

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

6

Exmark 1-800293

323-7
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

7

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

8

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.49

$

In Stock, Qty 20+

0

9

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

10

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

11

Exmark 1-403119

IDLER,PULLEY

$44.99

$

In Stock, only 3 left!

0

12

Exmark 1-808505

32151-103
(Superseded to 32151-103)

$3.49

$

In Stock, Qty 7

0

13

Exmark 1-323515

103-6583-S
(Superseded to 103-6583-S)

$31.99

$

In Stock, Qty 20+

0

Exmark 1-413438

103-1577-S
(Superseded to 103-1577-S)

$37.99

$

In Stock, Qty 6

0

Exmark 1-403148

103-6581-S
(Superseded to 103-6581-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch Kit P/N's MK48M3.

$34.99

$

In Stock, only 4 left!

0

Exmark 1-403149

103-6738-S
(Superseded to 103-6738-S)

Note: optional

$31.99

$

In Stock, Qty 7

0

14

Exmark 1-323303

ARM-ASSIST, LINKAGE

$25.99

$

In Stock, only 2 left!

0

15

Exmark 1-803310

SCREW-SET

Note: Use Pro-lock Nut Type (P/N 840022 .5 ml tube) on setscrews

$2.99

$

In Stock, only 1 left!

0

16

Exmark 1-800029

BOLT,TAP HH3/8-16X2-1/4

$

$

Not available

17

Exmark 1-402052

Arm Weldmt, Rh

$

$

Currently unavailable

18

Exmark 1-603843

132-4718
(Superseded to 132-4718)

$33.99

$

In Stock, Qty 16

0

19

Exmark 1-324265

HOUSING,CUTTER COMPLETE(S

Note: Cutter housing complete includes sheave, washer, and nut.

$630.99

$

Usually ships in 3-6 days

0

20

Exmark 1-633573

GUARD-BEARING, BOTTOM

$5.49

$

In Stock, Qty 8

0

21

Exmark 1-808502

32120-8
(Superseded to 32120-8)

$2.99

$

In Stock, Qty 16

0

22

Exmark 1-513016

BEARING

$82.99

$

In Stock, Qty 20+

0

23

Exmark 1-323532

103-8280
(Superseded to 103-8280)

$254.99

$

In Stock, only 3 left!

0

24

Exmark 1-803003

DISCONTINUED

$

$

Not available

25

Exmark 1-323529

TUBE-SPINDLE, SHORT

$88.99

$

In Stock, only 2 left!

0

26

Exmark 1-323528

SPACER-BEARING

$9.49

$

In Stock, Qty 13

0

27

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

28

Exmark 1-807267

KEY

$2.99

$

In Stock, only 2 left!

0

29

Exmark 1-303558

1-403183
(Superseded to 1-403183)

$69.99

$

In Stock, only 1 left!

0

30

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

31

Exmark 1-800861

SCREW-CAP, HH

$19.99

$

In Stock, only 2 left!

0

32

Exmark 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

0

33

Exmark 1-323339

WASHER-RETAINER, SHEAVE

$5.49

$

Usually ships in 3-6 days

0

34

Exmark 1-302198

1-321021
(Superseded to 1-321021)

$90.99

$

Usually ships in 3-6 days

0

35

Exmark 1-804510

3219-6
(Superseded to 3219-6)

$3.99

$

In Stock, Qty 20+

0

36

Exmark 1-303434

BUSHING-ENGAGEMENT

$14.99

$

In Stock, only 1 left!

0

37

Exmark 1-303348

EYEBOLT-THREAD, LH

$6.49

$

In Stock, Qty 9

0

38

Exmark 1-303236

BODY-TURNBUCKLE

$22.99

$

In Stock, only 3 left!

0

39

Exmark 1-303238

EYEBOLT-THREAD, RH

$6.49

$

In Stock, Qty 7

0

40

Exmark 1-809011

BOLT,SHLDR KSKH

$

$

Not available

41

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

42

Exmark 1-303352

WASHER-SPINDLE

$2.99

$

In Stock, only 3 left!

0

43

Exmark 1-402053

ARM WLDMNT W/BUSHING

$96.99

$

Usually ships in 3-6 days

0

44

Exmark 1-303144

BEARING,POWDERED METAL

$5.49

$

In Stock, only 2 left!

0

45

Exmark 1-324264

HOUSING,CUTTER COMPLETE(S

Note: Cutter housing complete includes sheave, washer, and nut.

$673.99

$

Usually ships in 3-6 days

0

46

Exmark 1-302128

1-402109
(Superseded to 1-402109)

$124.99

$

In Stock, only 2 left!

0

47

Exmark 1-800299

323-13
(Superseded to 323-13)

$3.99

$

In Stock, only 4 left!

0

48

Exmark 1-811006

302-19
(Superseded to 302-19)

$2.49

$

In Stock, Qty 8

0

49

Exmark 1-805259

3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 14

0

50

Exmark 1-800295

323-9
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

51

Exmark 1-323530

TUBE,SPINDLE LONG

$

$

Not available

52

Exmark 1-402106

1-402106-01
(Superseded to 1-402106-01)

$159.99

$

In Stock, only 2 left!

0

53

Exmark 1-403107

LINKAGE

$41.99

$

In Stock, only 1 left!

0

54

Exmark 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

55

Exmark 1-403133

1-403167
(Superseded to 1-403167)

$

$

Not available

56

Exmark 1-403025

BELT,FRONT DECK
(Superseded to 1-403025-SL)

$44.99

$

In Stock, Qty 5

0

57

Exmark 1-800862

SCRW,CAP HH 5/8-18X8.5

$28.99

$

In Stock, only 1 left!

0

58

Exmark 1-302129

1-402109
(Superseded to 1-402109)

$124.99

$

In Stock, only 2 left!

0

59

Exmark 1-323300

BELT,BLADE DRIVE
(Superseded to 1-323300-SL)

$99.99

$

In Stock, Qty 6

0

60

Exmark 1-323538

SPACER,SHEAVE/BEARING

$47.99

$

Usually ships in 3-6 days

0

61

Exmark 1-543879

BUSHING,IDLER

$14.99

$

In Stock, only 1 left!

0

62

Exmark 1-800273

322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

63

Exmark 1-323533

SPACER-PULLEY/BEARING

$5.49

$

In Stock, Qty 11

0

64

Exmark 1-634619

103-8280
(Superseded to 103-8280)

$254.99

$

In Stock, only 3 left!

0

65

Exmark 1-322153

CASTER/MOUNT ASM

$

$

Not available

66

Exmark 1-302203

SUPPORT ASM

$299.99

$

Usually ships in 3-6 days

0

67

Exmark 1-302194

1-302203
(Superseded to 1-302203)

$299.99

$

Usually ships in 3-6 days

0

68

Exmark 1-811001

302-52
(Superseded to 302-52)

$6.49

$

In Stock, Qty 20+

0

69

Exmark 1-303514

BEARING-FLANGED

$12.99

$

In Stock, Qty 20+

0

70

Exmark 1-303314

SPACER-CASTER

$6.49

$

In Stock, Qty 5

0

71

Exmark 1-322154

103-1236
(Superseded to 103-1236)

$207.99

$

Usually ships in 3-6 days

0

72

Exmark 1-322145-01

116-7942-01
(Superseded to 116-7942-01)

$95.99

$

In Stock, only 1 left!

0

73

Exmark 1-513547

SPACER

$12.99

$

In Stock, Qty 6

0

74

Exmark 1-513648

103-2171
(Superseded to 103-2171)

$126.99

$

In Stock, only 4 left!

0

Exmark 1-513807

103-2171
(Superseded to 103-2171)

$126.99

$

In Stock, only 4 left!

0

Exmark 1-513808

TIRE

$43.99

$

In Stock, only 4 left!

0

Exmark 1-513809

BEARING

$35.99

$

In Stock, Qty 20+

0

Exmark 1-513810

BUSHING

$5.99

$

In Stock, Qty 17

0

75

Exmark 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

76

Exmark 1-800290

323-4
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

77

Exmark 1-800334

325-20
(Superseded to 325-20)

$7.99

$

In Stock, Qty 20+

0

78

Exmark 1-804509

3217-9
(Superseded to 3217-9)

$0.99

$

In Stock, Qty 19

0

79

Exmark 1-805008

3253-7
(Superseded to 3253-7)

$1.49

$

In Stock, Qty 20+

0

80

Exmark 1-513338

WASHER-FLAT

$4.49

$

In Stock, Qty 20+

0

81

Exmark 1-809020

PIN

$11.99

$

In Stock, only 2 left!

0

82

Exmark 1-303537

STUD-SHIELD, BELT (SHORT)

$6.49

$

In Stock, Qty 20+

0

83

Exmark 1-303536

STUD-SHIELD, BELT (LONG)

$7.99

$

In Stock, Qty 20+

0

84

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

85

Exmark 1-404238

116-2707
(Superseded to 116-2707)

$498.99

$

In Stock, only 1 left!

0

Exmark 1-402100

116-2707
(Superseded to 116-2707)

$498.99

$

In Stock, only 1 left!

0

Exmark MK48M3

Mulch Kit

$

$

Currently unavailable

Exmark 1-850337

PAINT,SPRAY RED

$27.99

$

In Stock, Qty 16

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

$18.99

$

Usually ships in 3-6 days
