M3213KA - Exmark 32" Metro Walk-Behind Mower, 13hp Kawasaki (SN: 440000 - 509999) (2004) Decals Parts Diagram

32" Metro Walk-Behind Mower, 13hp Kawasaki

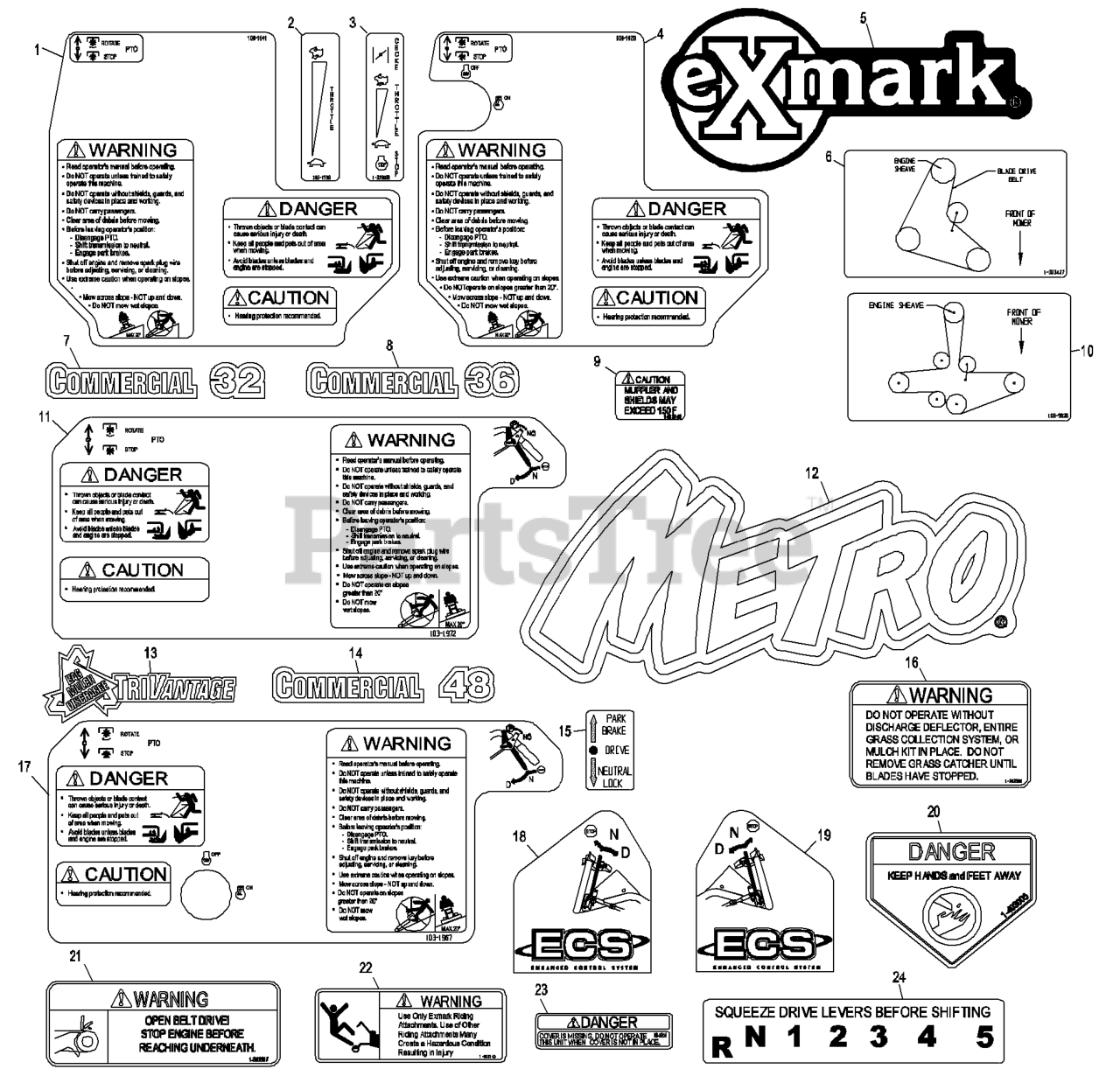

Decals Parts Diagram

  • Title
1

Exmark 103-1641

DECAL,METRO ECS CONSOLE

Note: ECS units only.

$

$

Not available

2

Exmark 103-1798

DECAL,THROTTLE ONLY

$11.99

$

In Stock, Qty 7

0

3

Exmark 1-323689

DISCONTINUED

$

$

Not available

4

Exmark 103-1623

DECAL,METRO ECS CONSOLE

Note: ECS units only.

$27.99

$

Usually ships in 3-6 days

0

5

Exmark 103-2882

DECAL,EXMARK LOGO

$11.99

$

In Stock, Qty 20+

0

6

Exmark 1-323427

DECAL,BELT ROUTING 32/36

$10.99

$

In Stock, only 3 left!

0

7

Exmark 1-323410

DECAL,COMMERCIAL 32

$6.99

$

In Stock, only 3 left!

0

8

Exmark 1-323411

DECAL,COMMERCIAL 36

$2.99

$

In Stock, Qty 7

0

9

Exmark 1-513746

103-2076
(Superseded to 103-2076)

$6.49

$

In Stock, only 1 left!

0

10

Exmark 103-5626

DECAL,BELT ROUTING

$8.99

$

Usually ships in 3-6 days

0

11

Exmark 103-1972

DECAL,CONSOLE

Note: Pistol Grip units only.

$

$

Not available

12

Exmark 103-2920

DECAL,METRO MODEL

$23.99

$

In Stock, only 2 left!

0

13

Exmark 1-303520

DISCONTINUED

$

$

Not available

14

Exmark 1-403131

DECAL,COMMERCIAL 48

$5.99

$

In Stock, Qty 6

0

15

Exmark 1-323550

DECAL,NEUTRAL/BRAKE

Note: Pistol Grip units only.

$2.99

$

Usually ships in 3-6 days

0

16

Exmark 1-303508

DECAL-WARNING, DISCHARGE

$5.49

$

In Stock, Qty 20+

0

17

Exmark 103-1967

DECAL,CONSOLE

Note: Pistol Grip units only.

$

$

Not available

18

Exmark 103-2245

DECAL,RH ECS INSTRUCTION

Note: ECS units only.

$15.99

$

Usually ships in 3-6 days

0

19

Exmark 103-2244

DECAL,LH ECS INSTRUCTION

Note: ECS units only.

$15.99

$

Usually ships in 3-6 days

0

20

Exmark 1-403005

DECAL-DANGER

$5.49

$

In Stock, Qty 20+

0

Exmark 1-403005

DECAL-DANGER

$5.49

$

In Stock, Qty 20+

0

21

Exmark 1-303517

DECAL,BELT DRIVE

$7.99

$

In Stock, only 3 left!

0

22

Exmark 1-403143

DECAL,SULKY WARNING

$5.49

$

In Stock, only 1 left!

0

23

Exmark 98-5954

DECAL-COVER, MISSING

$8.49

$

In Stock, Qty 7

0

24

Exmark 1-303518

DECAL,SHIFTER

$5.99

$

In Stock, only 2 left!

0

Exmark 103-2640

KIT,DECAL METRO

$187.99

$

Usually ships in 3-6 days

0
