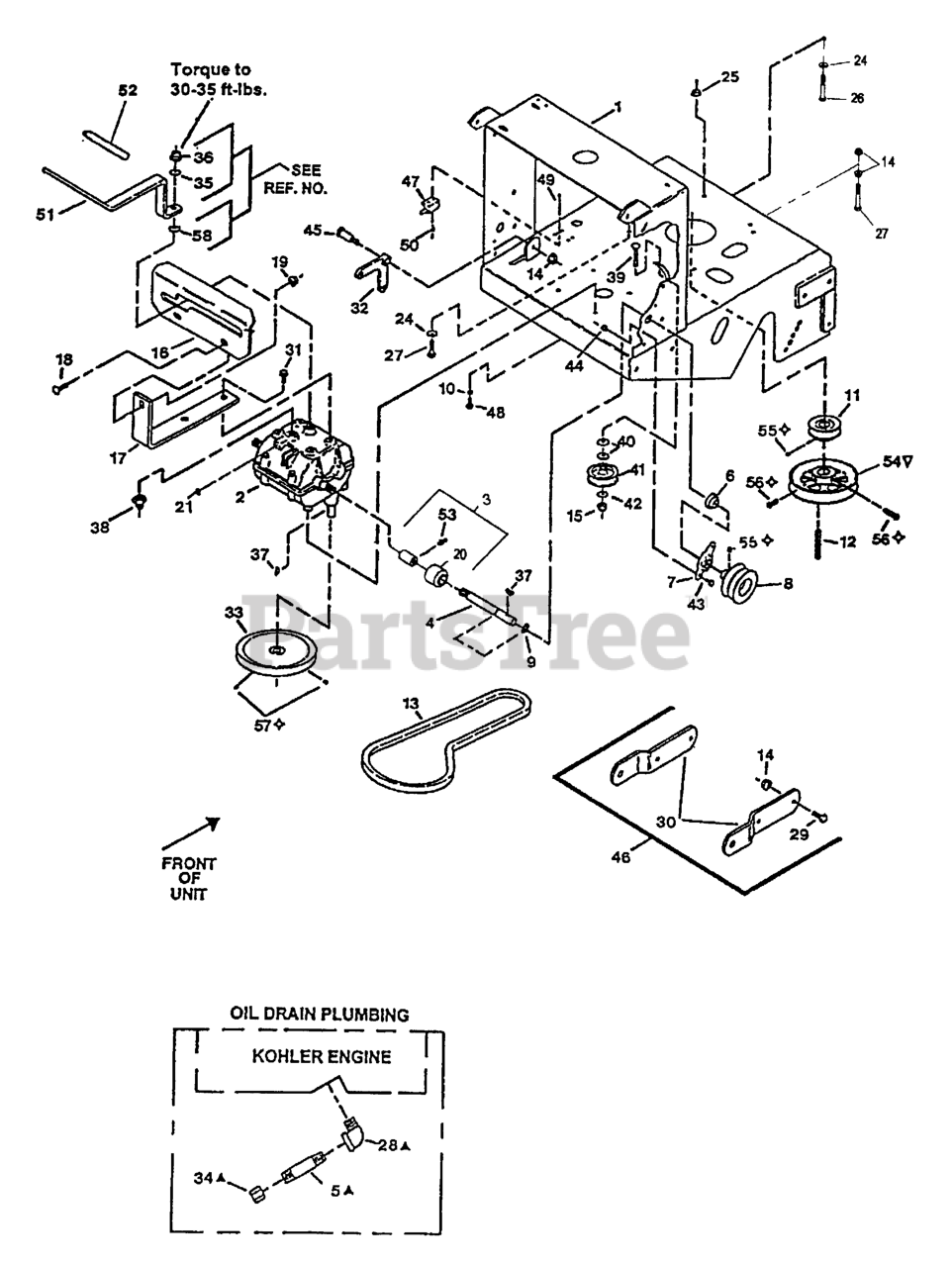

M3213KA - Exmark 32" Metro Walk-Behind Mower, 13hp Kawasaki (SN: 260000 - 319999) (2001) Engine Deck Group (Part 2) Parts Diagram

Exmark 1-402112-01

Exmark 1-323500

Exmark 1-324340

Exmark 1-323502

Exmark 1-323326

Note: Use Teflon Pipe Sealant (or equivalent) on all pipes.

Exmark 1-323252

Exmark 1-323254

Exmark 1-323257-03

Note: (36" & 48")

Exmark 1-323363-03

Note: (32")

Exmark 32151-62

Exmark 1-805005

Exmark 1-323256

Note: A component used with sheave mounting method A. Sheaves are retained to engine crankshaft by setscrews in hubs of sheaves. A component used with sheave mounting method B. Sheaves are retained to engine crankshaft by a bolt threaded into the end of cranksh

Exmark 1-807264

Note: A component used with sheave mounting method A. Sheaves are retained to engine crankshaft by setscrews in hubs of sheaves. A component used with sheave mounting method B. Sheaves are retained to engine crankshaft by a bolt threaded into the end of cranksh

Exmark 1-323280

Exmark 3290-357

Exmark 3296-39

Exmark 1-323387-03

Exmark 1-323389-03

Exmark 3230-1

Exmark 32128-20

Exmark 51-4220

Exmark 1-323526

Exmark 1-323228-01

Note: (32" and 36")

Exmark 1-323228-01

Note: (48")

Exmark 1-301024

Exmark 1-303334

Exmark 32128-20

Note: (15 HP Kaw Engine)

Exmark 322-7

Note: (15 HP Kaw Engine) Torque Engine Mounting Bolts: 15 HP Kaw to 15-20 ft-lbs / Kohler & 12.5 HP Kaw to 25-30 ft-lbs.

Exmark 33114-025

Note: (13 HP Kaw & All Kohler) Torque Engine Mounting Bolts: 15 HP Kaw to 15-20 ft-lbs / Kohler & 12.5 HP Kaw to 25-30 ft-lbs.

Exmark 323-13

Exmark 1-303431

Note: Use Teflon Pipe Sealant (or equivalent) on all pipe threads.

Exmark 323-6

Exmark 1-323318

Exmark 9264964

Exmark 1-303186

Exmark 1-323278

Note: Apply anti-seize compound to bore of blade drive pulley on engine, drive pulley on transmission, and to bore of transmission drive pulley on engine (sheave mounting Type B only)

Exmark 1-543233

Note: Use Teflon Pipe Sealant (or equivalent) on all pipe threads.

Exmark 98-5975

Exmark 3296-6

Exmark 3257-5

Exmark 1-303282

Exmark 323-16

Exmark 3256-5

Exmark 1-323285

Exmark 3256-24

Exmark 321-3

Exmark 3296-42

Exmark 1-603403

Exmark 1-301023

Exmark 1-513051

Exmark 322-3

Exmark 3290-500

Exmark 3296-2

Exmark 1-323376-03

Exmark 1-323250

Exmark 302-19

Exmark 1-643292

Note: (36") Apply anti-seize compound to bore of blade drive pulley on engine, drive pulley on transmission, and to bore of transmission drive pulley on engine (sheave mounting Type B only); A component used with sheave mounting method A. Sheaves are retained to engi

Exmark 1-403160

Note: (32" & 48") Apply anti-seize compound to bore of blade drive pulley on engine, drive pulley on transmission, and to bore of transmission drive pulley on engine (sheave mounting Type B only); A component used with sheave mounting method A. Sheaves are retained to engi

Exmark 1-803310

Note: A component used with sheave mounting method A. Sheaves are retained to engine crankshaft by setscrews in hubs of sheaves. A component used with sheave mounting method B. Sheaves are retained to engine crankshaft by a bolt threaded into the end of cranksh

Exmark 1-803310

Note: Use Pro-lock (Nut type) Part No. 1-840022 (.5ml tube) on setscrew threads and on sheave retaining bolt in engine crankshaft (sheave mounting Type B only)

Exmark 1-803050

Note: A component used with sheave mounting method A. Sheaves are retained to engine crankshaft by setscrews in hubs of sheaves. A component used with sheave mounting method B. Sheaves are retained to engine crankshaft by a bolt threaded into the end of cranksh

Exmark 3245-41

Note: Use Pro-lock (Nut type) Part No. 1-840022 (.5ml tube) on setscrew threads and on sheave retaining bolt in engine crankshaft (sheave mounting Type B only)

Exmark 1-323379

Exmark 1-373034

Exmark 3212-6

Note: (15 HP Kaw & All Kohler) Use Pro-lock (Nut type) Part No. 1-840022 (.5ml tube) on setscrew threads and on sheave retaining bolt in engine crankshaft (sheave mounting Type B only)

Exmark 33115-035

Note: (13 HP Kaw) Use Pro-lock (Nut type) Part No. 1-840022 (.5ml tube) on setscrew threads and on sheave retaining bolt in engine crankshaft (sheave mounting Type B only)

Exmark 1-633453

Exmark 1-603610

Note: (15 HP Kaw & All Koh)

Exmark 98-5975

Note: (13 HP Kaw)

Exmark 103-1666

Note: Apply anti-seize compound to bore of blade drive pulley on engine, drive pulley on transmission, and to bore of transmission drive pulley on engine (sheave mounting Type B only)

Exmark 103-1668

Note: (36") Apply anti-seize compound to bore of blade drive pulley on engine, drive pulley on transmission, and to bore of transmission drive pulley on engine (sheave mounting Type B only)

Exmark 103-1667

Note: (32" & 48") Apply anti-seize compound to bore of blade drive pulley on engine, drive pulley on transmission, and to bore of transmission drive pulley on engine (sheave mounting Type B only)

Exmark 5-1336

Exmark 1-840022

Exmark 1-840023

Exmark 1-850337
