M266KASPC - Exmark 26" Metro Self-Propelled Walk-Behind Mower, 6hp Kawasaki (SN: 510000 - 599999) (2005) Blade & Spindle Assembly Parts Diagram

26" Metro Self-Propelled Walk-Behind Mower, 6hp Kawasaki

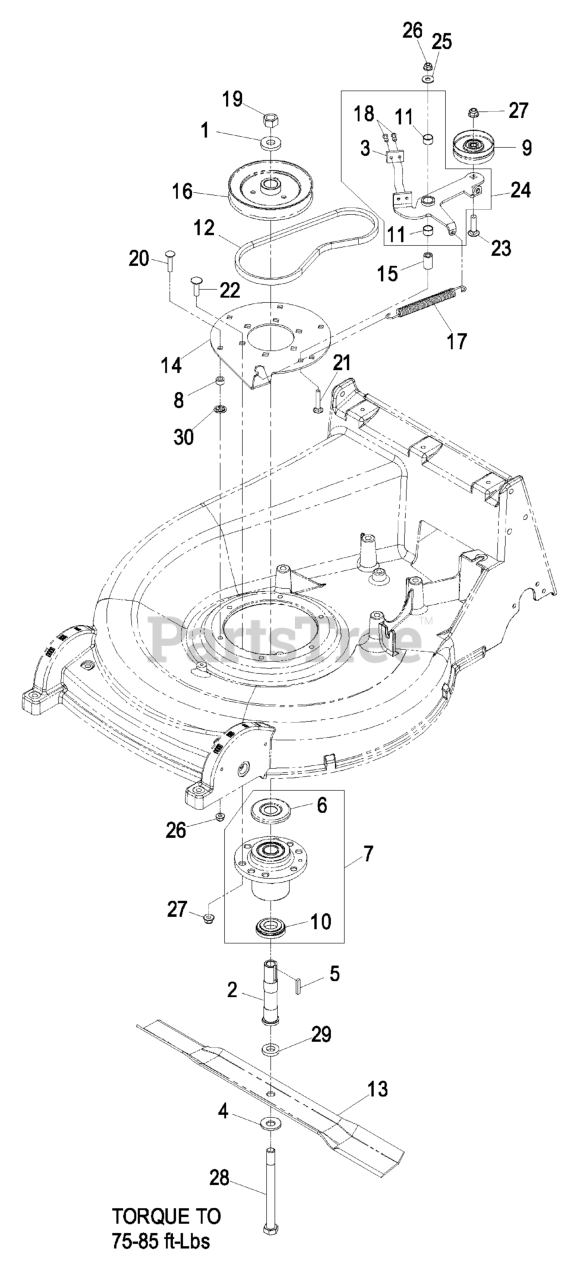

Blade & Spindle Assembly Parts Diagram

  • Title

1

Exmark 1-323339

WASHER-RETAINER, SHEAVE

$5.49

$

Usually ships in 3-6 days

0

2

Exmark 1-323529

TUBE-SPINDLE, SHORT

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-sieze) between the spindle & bearings and spindle & sheave and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$88.99

$

In Stock, only 2 left!

0

3

Exmark 1-323709

PAD-BRAKE

$28.99

$

In Stock, only 3 left!

0

4

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

5

Exmark 1-807267

KEY

$2.99

$

In Stock, only 2 left!

0

6

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-sieze) between the spindle & bearings and spindle & sheave and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$5.49

$

In Stock, only 2 left!

0

7

Exmark 103-8280

KIT, CUTTER HOUSING

$254.99

$

In Stock, only 3 left!

0

8

Exmark 111044

SPACER

$1.49

$

In Stock, Qty 20+

0

9

Exmark 103-6104

116-6361
(Superseded to 116-6361)

$59.99

$

In Stock, Qty 18

0

10

Exmark 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 3 left!

0

11

Exmark 103-6111

BEARING

$7.99

$

In Stock, Qty 6

0

12

Exmark 103-6115

116-0861
(Superseded to 116-0861-SL)

$35.99

$

In Stock, only 1 left!

0

13

Exmark 109-0343

BLADE

$52.99

$

In Stock, Qty 10

0

Exmark 103-6422

BLADE, METRO 26

Note: Requires installation of mulch kit for proper mulching. Mulch kit P/N MK26.

$33.99

$

In Stock, only 1 left!

0

14

Exmark 103-7106-03

PLATE,CUTTER HOUSING

$

$

Not available

15

Exmark 103-7108

BUSHING-ARM, IDLER

$26.99

$

Usually ships in 3-6 days

0

16

Exmark 103-7907

SHEAVE-SPINDLE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-sieze) between the spindle & bearings and spindle & sheave and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$47.99

$

Usually ships in 3-6 days

0

17

Exmark 103-7896

SPRING-BRAKE

$21.99

$

Usually ships in 3-6 days

0

18

Exmark 103-0138

RIVET-POP

$1.49

$

In Stock, Qty 18

0

19

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

20

Exmark 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 6

0

21

Exmark 3230-5

BOLT-CAR

$0.99

$

In Stock, Qty 6

0

22

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

23

Exmark 3231-26

SCREW-CARR

$5.49

$

In Stock, only 3 left!

0

24

Exmark 109-0560

DISCONTINUED

$

$

Not available

25

Exmark 3256-71

WASHER-FLAT

$1.49

$

In Stock, Qty 5

0

26

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

27

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

28

Exmark 103-7901

SCREW-HH YZ

$25.99

$

Usually ships in 3-6 days

0

29

Exmark 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

0

30

Exmark 78-7170

RING-RETAINING

$1.49

$

In Stock, Qty 17

0

31

Exmark 109-0555

ASM,CUTTER HOUSING COMPLE

Note: Complete cutter housing assembly contains items, #1, #2, #4, #5, #7, #16, #19, #28,& #29.

$

$

Not available

Exmark 1-850337

PAINT,SPRAY RED

$27.99

$

In Stock, Qty 16

0

Exmark 103-9140

PAINT, TOUCH UP

$21.99

$

In Stock, only 1 left!

0

Exmark 103-5217

PACK,LUBE MOBIL HTS GREAS

$9.49

$

In Stock, only 1 left!

0

Exmark MK26

KIT, MULCH METRO 26

$172.99

$

Usually ships in 3-6 days

0
