M217BSP - Exmark 21" Metro Self-Propelled Walk-Behind Mower, 7hp Briggs & Stratton (SN: 190000 - 219999) (1999) Rear Wheel & Tire Assembly (Model M216KASP Only) Parts Diagram

21" Metro Self-Propelled Walk-Behind Mower, 7hp Briggs & Stratton

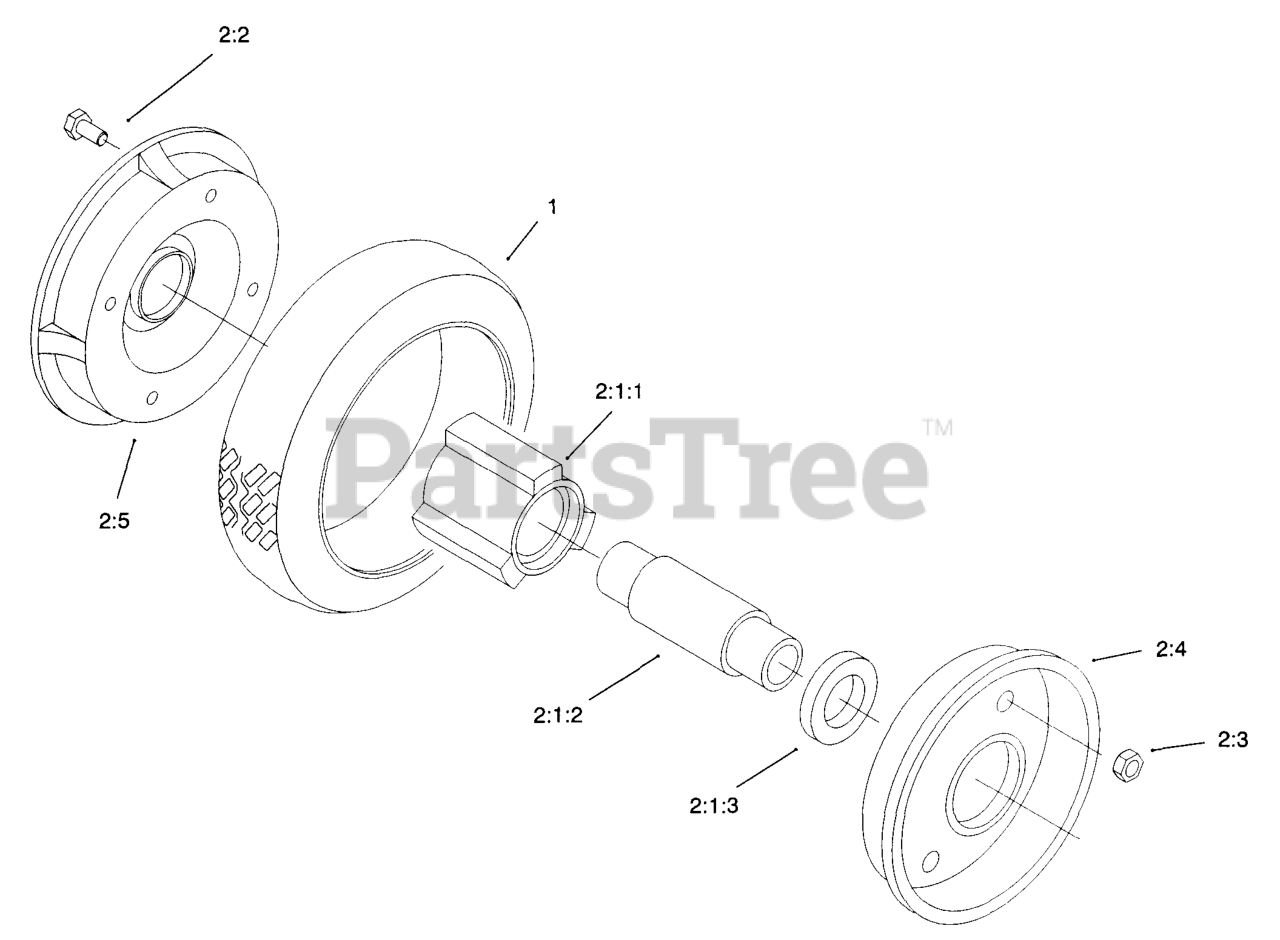

Rear Wheel & Tire Assembly (Model M216KASP Only) Parts Diagram

  • Title
1

Exmark 1-213250

53-7740
(Superseded to 53-7740)

$34.99

$

In Stock, only 3 left!

0

2

Wheel Asm Sp

Note: (Not illustrated)

$

$

Not available

2:1

Hub & Brg Asm

Note: (Not illustrated)

$

$

Not available

2:1:1

Exmark 1-213252

52-2410
(Superseded to 52-2410)

$33.99

$

In Stock, Qty 14

0

2:1:2

Exmark 1-213253

52-2440
(Superseded to 52-2440)

$9.49

$

In Stock, Qty 5

0

2:1:3

Exmark 1-213274

52-2450
(Superseded to 52-2450)

$18.99

$

In Stock, Qty 20+

0

2:2

Exmark 1-800250

321-2
(Superseded to 321-2)

$3.49

$

In Stock, only 3 left!

0

2:3

Exmark 1-804255

3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

2:4

Exmark 1-213251

121-1365-06
(Superseded to 121-1365-06)

$19.99

$

In Stock, only 2 left!

0

2:5

Exmark 1-213345

121-1378-06
(Superseded to 121-1378-06)

$30.99

$

In Stock, Qty 6

0
