M216KASPC - Exmark 21" Metro Self-Propelled Walk-Behind Mower, 6hp Kawasaki (SN: 370000 - 439999) (2003) Front Wheel And Tire Assembly No. 100-2870 Parts Diagram

21" Metro Self-Propelled Walk-Behind Mower, 6hp Kawasaki

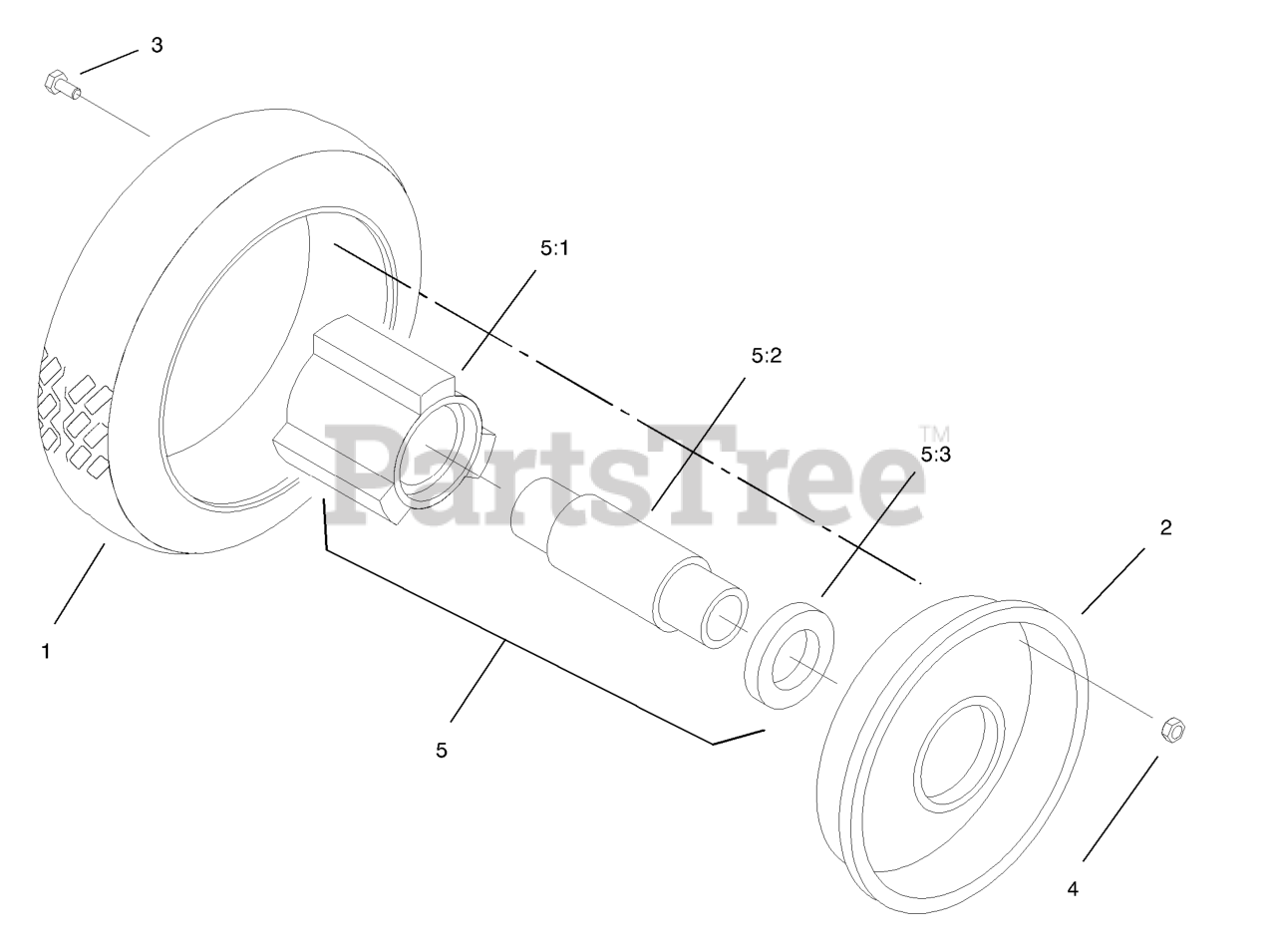

Front Wheel And Tire Assembly No. 100-2870 Parts Diagram

  • Title

1

Exmark 53-7740

TIRE

$34.99

$

In Stock, only 3 left!

0

2

Exmark 53-7780-06

121-1365-06
(Superseded to 121-1365-06)

$19.99

$

In Stock, only 2 left!

0

3

Exmark 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

4

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 16

0

5

Hub & Bearing Asm

Note: Not serviced separately

$

$

Not available

5:1

Exmark 52-2410

HUB-BEARING

$33.99

$

In Stock, Qty 14

0

5:2

Exmark 52-2440

SPACER-BEARING

$9.49

$

In Stock, Qty 5

0

5:3

Exmark 52-2450

BEARING-WHEEL

$18.99

$

In Stock, Qty 20+

0

Exmark 100-2870

121-1380
(Superseded to 121-1380)

$101.99

$

In Stock, only 3 left!

0
