M216KASPC - Exmark 21" Metro Self-Propelled Walk-Behind Mower, 6hp Kawasaki (SN: 370000 - 439999) (2003) Engine And Blade Mounting Assembly Parts Diagram

21" Metro Self-Propelled Walk-Behind Mower, 6hp Kawasaki

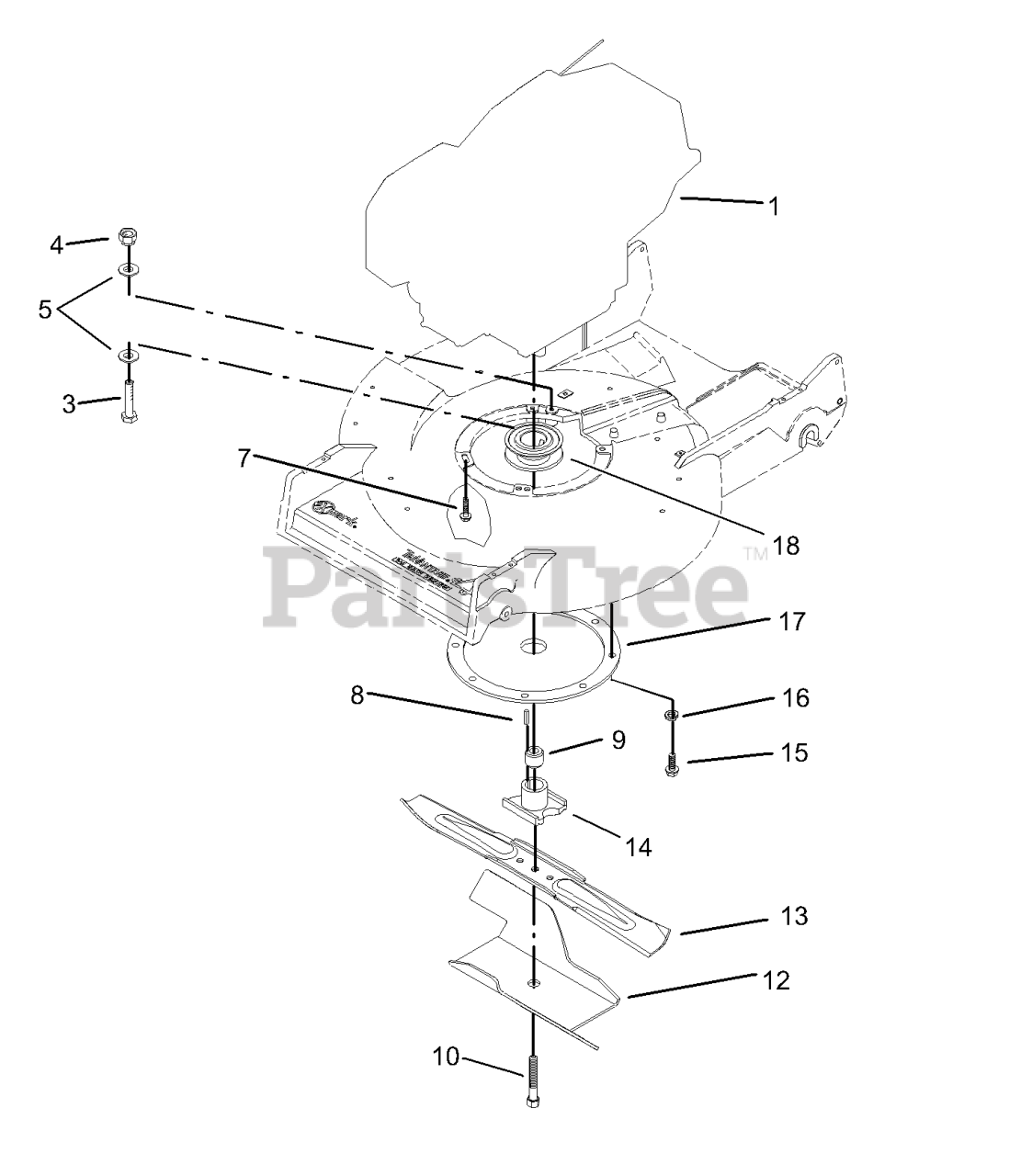

Engine And Blade Mounting Assembly Parts Diagram

  • Title

1

Engine-Honda, 5.5hp Gxv160-K1a1t

$

$

Not available

3

Exmark 32210-10

Screw-Hh

$

$

Currently unavailable

4

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Exmark 103-2678

SCREW-SHOULDER

$6.49

$

In Stock, Qty 9

0

8

Exmark 5-1077

KEY-SQUARE

$6.99

$

In Stock, Qty 10

0

9

Exmark 103-3795

SPACER-RETAINER, BLADE

$7.99

$

In Stock, only 3 left!

0

10

Exmark 105-8579

125-2466
(Superseded to 125-2466)

$3.49

$

In Stock, Qty 20+

0

12

Exmark 92-1599-03

STIFFENER-BLADE

$86.99

$

Usually ships in 3-6 days

0

13

Exmark 42-1000-03

107-4276-03
(Superseded to 107-4276-03)

$28.99

$

In Stock, only 4 left!

0

14

Exmark 52-2170-03

RETAINER-BLADE

$75.99

$

In Stock, only 4 left!

0

15

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

16

Exmark 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

17

Exmark 65-5860

125-8370
(Superseded to 125-8370)

$104.99

$

Usually ships in 3-6 days

0

18

Exmark 46-7910

PULLEY-DRIVER

$36.99

$

In Stock, only 2 left!

0
