M216KASP - Exmark 21" Metro Self-Propelled Walk-Behind Mower, 6hp Kawasaki (SN: 440000 - 509999) (2004) Engine And Blade Assembly Parts Diagram

21" Metro Self-Propelled Walk-Behind Mower, 6hp Kawasaki

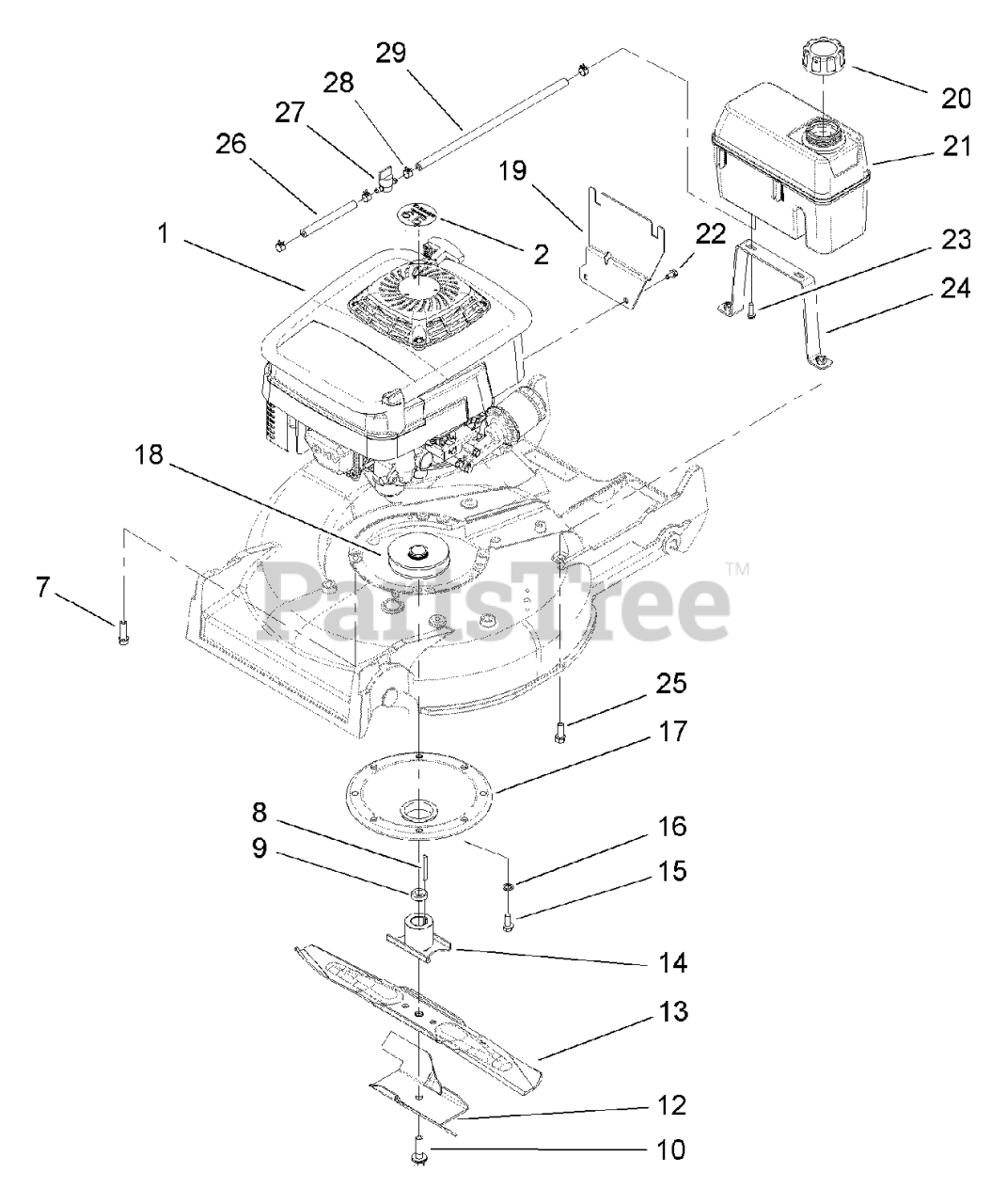

Engine And Blade Assembly Parts Diagram

  • Title
1

Engine-Kawasaki, Fj180v-As10

Note: Not serviced separately

$

$

Not available

2

Exmark 106-0843

Decal-Recoil

$

$

Not available

7

Exmark 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

8

Exmark 5-1077

KEY-SQUARE

$6.99

$

In Stock, only 3 left!

0

9

Exmark 103-3795

SPACER-RETAINER, BLADE

$7.99

$

In Stock, only 4 left!

0

10

Exmark 105-8579

125-2466
(Superseded to 125-2466)

$3.49

$

In Stock, Qty 20+

0

12

Exmark 92-1599-03

STIFFENER-BLADE

$79.99

$

Usually ships in 3-6 days

0

13

Exmark 42-1000

107-4276-03
(Superseded to 107-4276-03)

$30.99

$

In Stock, only 1 left!

0

14

Exmark 52-2170

52-2170-03
(Superseded to 52-2170-03)

$75.99

$

In Stock, only 1 left!

0

15

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

16

Exmark 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

17

Exmark 65-5860

125-8370
(Superseded to 125-8370)

$104.99

$

Usually ships in 3-6 days

0

18

Exmark 46-7910

PULLEY-DRIVER

$36.99

$

In Stock, only 2 left!

0

19

Exmark 106-0908-03

BRACKET-TANK

$21.99

$

Usually ships in 3-6 days

0

20

Exmark 93-7198

CAP-GAS

$15.99

$

In Stock, only 1 left!

0

21

Exmark 106-0625

117-3510
(Superseded to 117-3510)

$94.99

$

In Stock, only 3 left!

0

22

Exmark 104-2628

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0

23

Exmark 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

24

Exmark 84-9160-03

107-4131-03
(Superseded to 107-4131-03)

$

$

Not available

25

Exmark 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

26

Exmark 47-2983

109-0296
(Superseded to 109-0296)

$10.99

$

In Stock, only 4 left!

0

27

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

28

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

29

Exmark 106-0999

109-0650
(Superseded to 109-0650)

$7.99

$

In Stock, only 1 left!

0
