M216KASP - Exmark 21" Metro Self-Propelled Walk-Behind Mower, 6hp Kawasaki (SN: 440000 - 509999) (2004) Deck, Chute And Front Wheel Assembly Parts Diagram

21" Metro Self-Propelled Walk-Behind Mower, 6hp Kawasaki

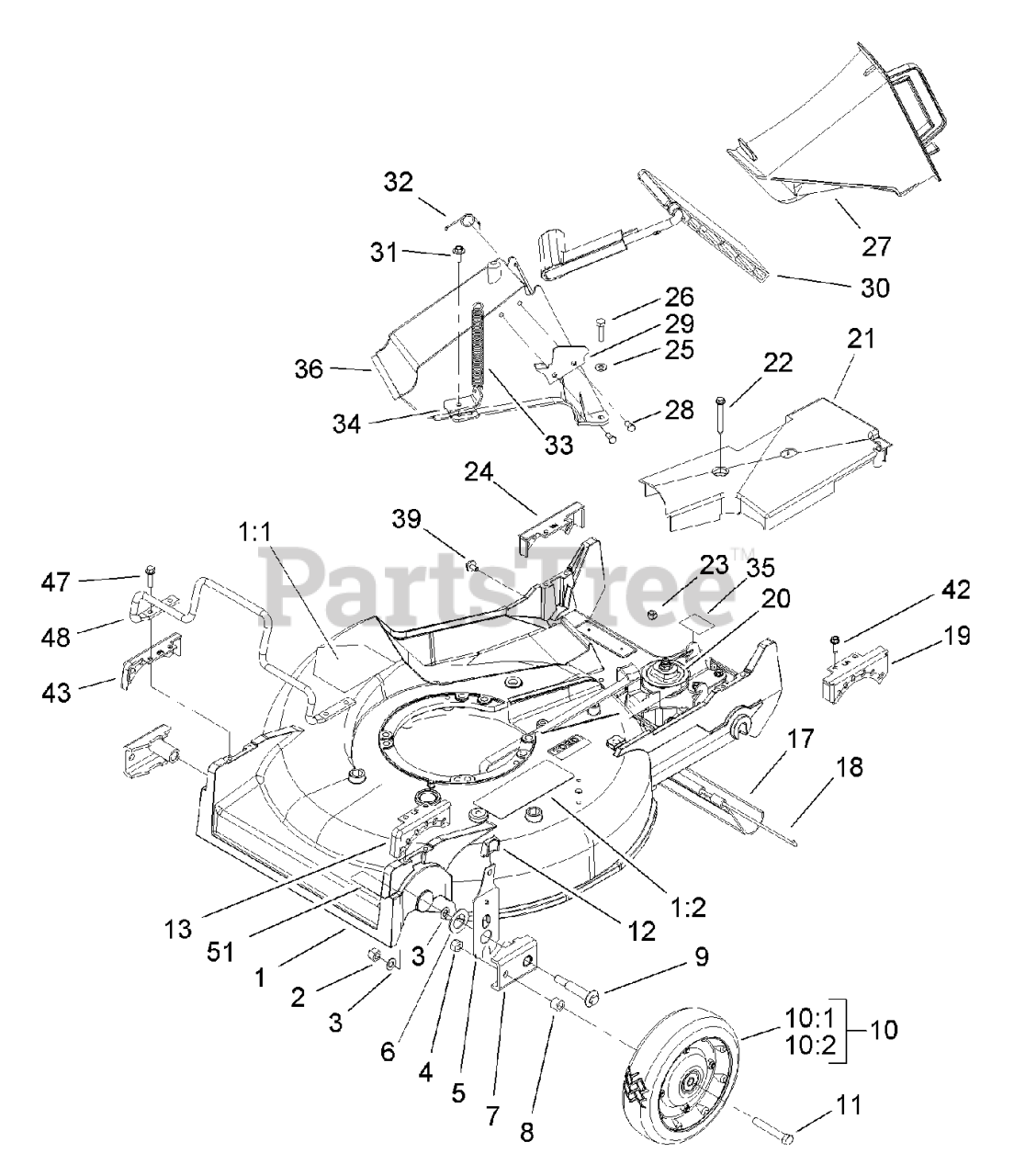

Deck, Chute And Front Wheel Assembly Parts Diagram

  • Title

1

Exmark 98-8027

DISCONTINUED

$

$

Not available

1:1

Exmark 39-5770

DECAL-DANGER

$7.99

$

In Stock, Qty 8

0

1:2

Exmark 104-8585

DECAL-WARNING

$15.99

$

Usually ships in 3-6 days

0

2

Exmark 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

3

Exmark 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

4

Exmark 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

5

Exmark 66-7560

FRONT SPRING ARM ASM

$13.99

$

In Stock, Qty 7

0

6

Exmark 257-3

WASHER-THRUST

$15.99

$

In Stock, only 2 left!

0

7

Exmark 61-8300

ARM-PIVOT, FRONT

$28.99

$

In Stock, only 2 left!

0

8

Exmark 52-2480

SPACER-WHEEL

$6.49

$

In Stock, only 4 left!

0

9

Exmark 27-6232

114-3468
(Superseded to 114-3468)

$5.49

$

In Stock, Qty 20+

0

10

Exmark 100-2870

121-1380
(Superseded to 121-1380)

$100.99

$

In Stock, only 3 left!

0

10:1

Exmark 53-7740

TIRE

$37.99

$

Usually ships in 3-6 days

0

10:2

Wheel Asm

Note: Not Serviced Separately

$

$

Not available

11

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

12

Exmark 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

13

Exmark 49-8760

QUADRANT-FRONT, LH

$26.99

$

In Stock, only 4 left!

0

17

Exmark 44-0580

112-9989
(Superseded to 112-9989)

$27.99

$

In Stock, Qty 8

0

18

Exmark 33-3208

ROD-SHIELD

$14.99

$

In Stock, Qty 12

0

19

Exmark 49-8740

QUADRANT-REAR, LH

$26.99

$

In Stock, only 4 left!

0

20

Exmark 74-1861

74-1860
(Superseded to 74-1860)

$730.99

$

Usually ships in 3-6 days

0

21

Exmark 74-1770

COVER-BELT

$43.99

$

In Stock, only 4 left!

0

22

Exmark 37-7260

SCREW-HWH

$6.49

$

In Stock, only 2 left!

0

23

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

24

Exmark 49-8750

QUADRANT-REAR, RH

$26.99

$

In Stock, only 4 left!

0

25

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Exmark 321-7

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

27

Exmark 77-0500

DISCHARGE PLUG ASM

$68.99

$

Usually ships in 3-6 days

0

27:1

Exmark 3295-35

RIVET-HEAD, FLAT

Note: Not Illustrated

$2.99

$

Usually ships in 3-6 days

0

27:3

Exmark 76-4640

LATCH-PLUG, DISCHARGE

Note: Not Illustrated

$7.99

$

Usually ships in 3-6 days

0

27:4

Exmark 76-4650

GRIP-LATCH

Note: Not Illustrated

$5.49

$

Usually ships in 3-6 days

0

28

Exmark 46-8090

SCREW-PLASTITE

$

$

Not available

29

Exmark 93-3154

LATCH-PLATE

$5.49

$

In Stock, Qty 5

0

30

Exmark 93-7351

DISCHARGE DOOR ASM

$112.99

$

In Stock, only 1 left!

0

31

Exmark 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

32

Exmark 80-3770

RETAINER-DOOR

$2.99

$

In Stock, only 2 left!

0

33

Exmark 76-4660

SPRING-DOOR

$10.99

$

In Stock, Qty 5

0

34

Exmark 71-9350

BRACKET-SPRING

$14.99

$

Usually ships in 3-6 days

0

35

Exmark 52-2620

Label-Grease

$2.49

$

In Stock, only 2 left!

0

36

Exmark 82-9152

TUNNEL-DISCHARGE

$103.99

$

Usually ships in 3-6 days

0

39

Exmark 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

42

Exmark 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

43

Exmark 49-8770

QUADRANT-FRONT, RH

$26.99

$

In Stock, Qty 6

0

47

Exmark 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

48

Exmark 99-6722

GUARD-ENGINE

$37.99

$

In Stock, only 1 left!

0

51

Exmark 68-7410

DECAL-BLADE

$11.99

$

In Stock, only 1 left!

0
