M216KASP - Exmark 21" Metro Self-Propelled Walk-Behind Mower, 6hp Kawasaki (SN: 370000 - 439999) (2003) Rear Axle Assembly Parts Diagram

21" Metro Self-Propelled Walk-Behind Mower, 6hp Kawasaki

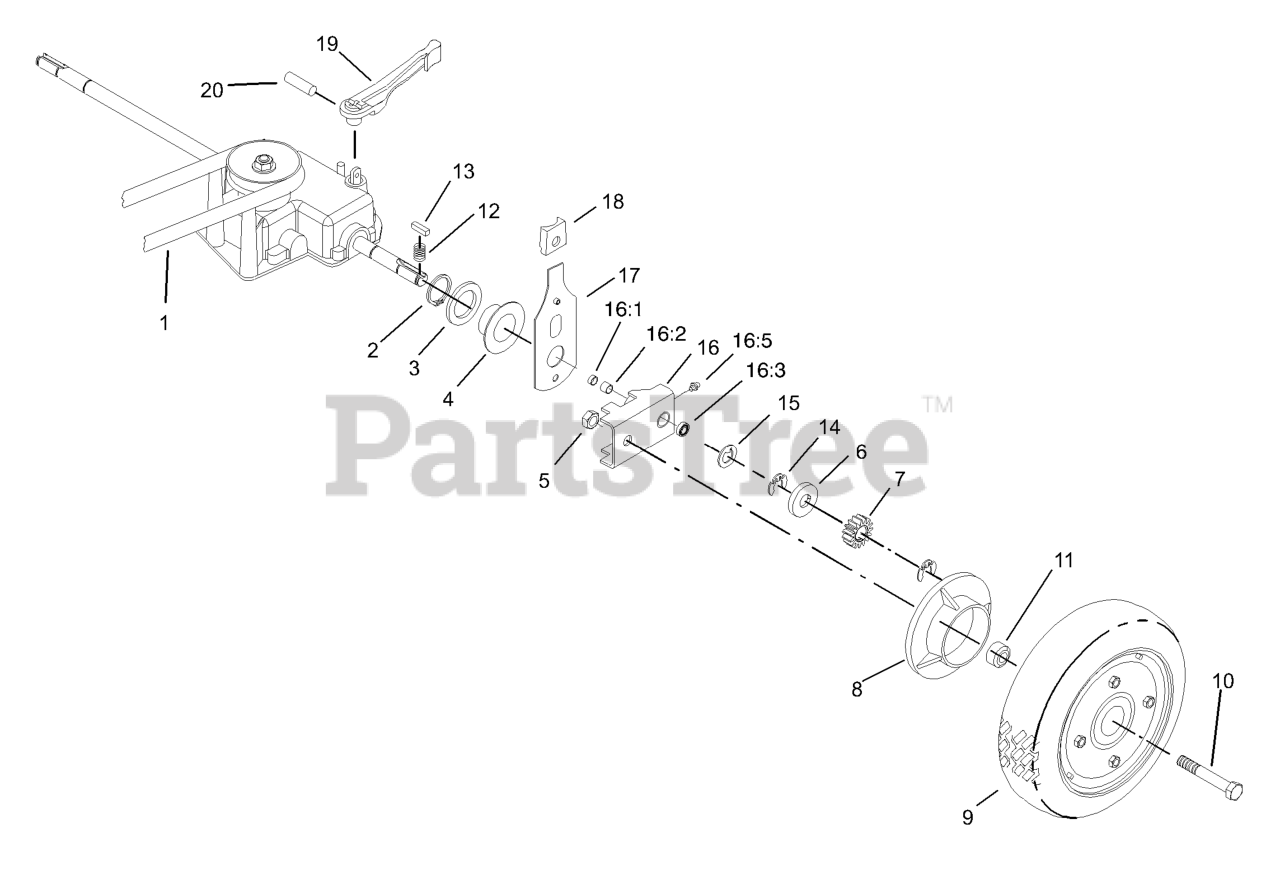

Rear Axle Assembly Parts Diagram

  • Title

1

Exmark 1-213237

V-BELT
(Superseded to 1-213237-SL)

$17.99

$

Usually ships in 3-6 days

0

2

Exmark 32151-36

RING-RETAINING

$4.99

$

In Stock, only 4 left!

0

3

Exmark 74-1810

WASHER

$0.99

$

In Stock, Qty 7

0

4

Exmark 48-2170

CAP-END

$10.99

$

In Stock, Qty 5

0

5

Exmark 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

6

Exmark 62-3830

WASHER-THRUST, OUTER

$3.99

$

In Stock, Qty 14

0

7

Exmark 39-9160

GEAR-PINION

$14.99

$

In Stock, Qty 5

0

8

Exmark 74-1640

COVER-WHEEL

$14.99

$

In Stock, Qty 11

0

9

Exmark 100-2860

121-1379
(Superseded to 121-1379)

$131.99

$

In Stock, only 2 left!

0

10

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

11

Exmark 74-1650

SPACER-COVER, WHEEL

$9.49

$

In Stock, only 3 left!

0

12

Exmark 39-9650

SPRING-COMPRESSION

$3.49

$

In Stock, Qty 13

0

13

Exmark 612066

KEY

$2.49

$

In Stock, Qty 5

0

14

Exmark 32151-68

RING-RETAINING
(Superseded to 65-2720)

$1.49

$

In Stock, Qty 6

0

15

Exmark 49-7700

WASHER-THRUST, OUTER

$2.99

$

In Stock, Qty 15

0

16

Exmark 74-1851

PIVOT ARM ASM

$95.99

$

In Stock, only 2 left!

0

16:1

Exmark 47-6730

SEAL-OIL

$12.99

$

In Stock, Qty 20+

0

16:2

Exmark 48-2060

117-3500
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 16

0

16:3

Exmark 52-2450

BEARING-WHEEL

$18.99

$

In Stock, Qty 20+

0

16:5

Exmark 92-6316

ZERK

$1.99

$

In Stock, Qty 6

0

17

Exmark 66-7561

REAR SPRING ARM ASM

$19.99

$

In Stock, Qty 6

0

18

Exmark 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

19

Exmark 74-1960

LEVER-SHIFT

$13.99

$

Usually ships in 3-6 days

0

20

Exmark 32121-99

PIN-SPRING

$1.49

$

In Stock, only 2 left!

0

99

Exmark 100-2886

109-4961
(Superseded to 109-4961)

Note: Not illustrated

$227.99

$

In Stock, only 4 left!

0
