M216KASP - Exmark 21" Metro Self-Propelled Walk-Behind Mower, 6hp Kawasaki (SN: 220000 - 259999) (2000) Rear Wheel And Tire Assembly Parts Diagram

21" Metro Self-Propelled Walk-Behind Mower, 6hp Kawasaki

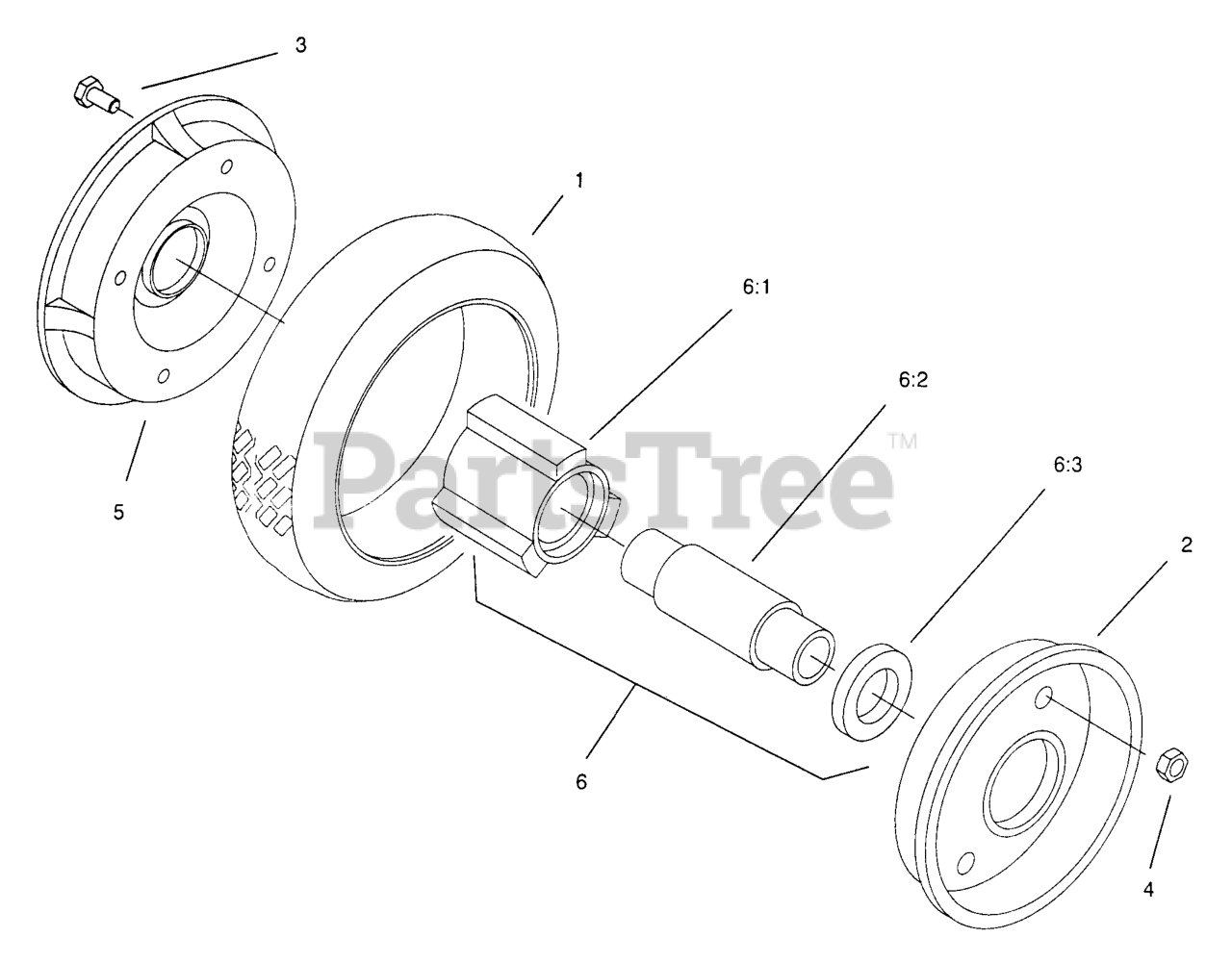

Rear Wheel And Tire Assembly Parts Diagram

  • Title

1

Exmark 53-7740

TIRE

$34.99

$

In Stock, only 3 left!

0

2

Exmark 53-7780-06

121-1365-06
(Superseded to 121-1365-06)

$19.99

$

In Stock, only 2 left!

0

3

Exmark 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

4

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

5

Exmark 92-4957-06

121-1378-06
(Superseded to 121-1378-06)

$30.99

$

In Stock, Qty 6

0

6

Hub & Bearing Asm

$

$

Not available

6:1

Exmark 52-2410

HUB-BEARING

$33.99

$

In Stock, Qty 14

0

6:2

Exmark 52-2440

SPACER-BEARING

$9.49

$

In Stock, Qty 5

0

6:3

Exmark 52-2450

BEARING-WHEEL

$18.99

$

In Stock, Qty 20+

0

Exmark 74-1720

121-1379
(Superseded to 121-1379)

$131.99

$

In Stock, only 2 left!

0
