M216KASP - Exmark 21" Metro Self-Propelled Walk-Behind Mower, 6hp Kawasaki (SN: 220000 - 259999) (2000) Engine And Blade Assembly Parts Diagram

21" Metro Self-Propelled Walk-Behind Mower, 6hp Kawasaki

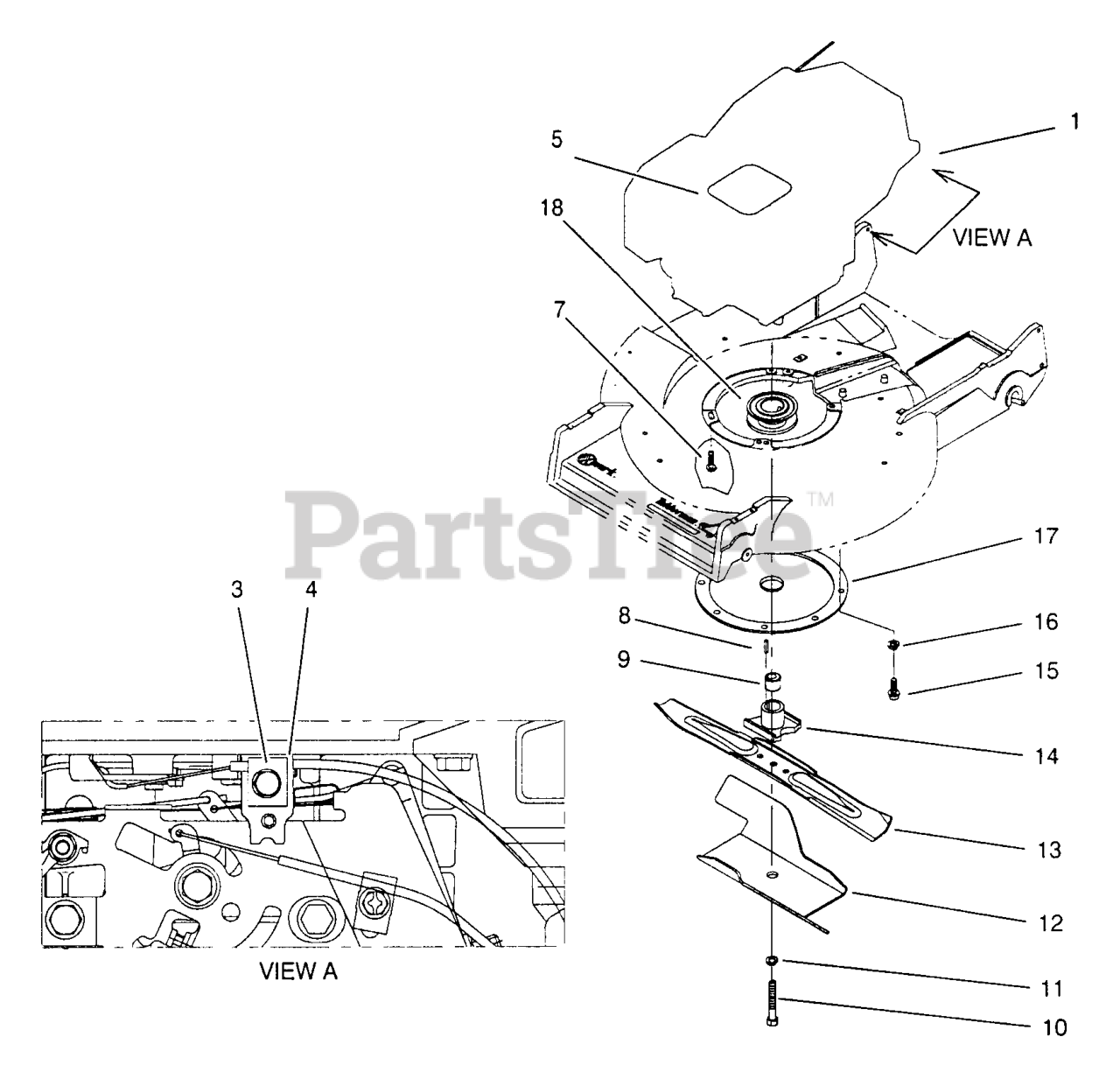

Engine And Blade Assembly Parts Diagram

  • Title

1

Engine - Kawasaki Fc150v-Es29

$

$

Not available

3

Exmark 95-9853

BOLT (5X18)

$1.49

$

Usually ships in 3-6 days

0

4

Exmark 95-9849

CLAMP

$

$

Not available

5

Exmark 1-213387

DISCONTINUED

$

$

Not available

7

Exmark 100-2835

SCREW-MOUNT, ENGINE

$

$

Not available

8

Exmark 27-6300

KEY-SQUARE

$6.49

$

In Stock, only 1 left!

0

9

Exmark 99-6279

SPACER-BLADE RETAINER

$13.99

$

Usually ships in 3-6 days

0

10

Exmark 26-0670

SCREW-BLADE

$

$

Not available

11

Exmark 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

12

Exmark 92-1599-03

STIFFENER-BLADE

$79.99

$

Usually ships in 3-6 days

0

13

Exmark 42-1000-03

107-4276-03
(Superseded to 107-4276-03)

$30.99

$

In Stock, only 1 left!

0

14

Exmark 99-6283

99-6283-03
(Superseded to 99-6283-03)

$70.99

$

In Stock, only 1 left!

0

15

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 16

0

16

Exmark 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

17

Exmark 65-5860

125-8370
(Superseded to 125-8370)

$104.99

$

Usually ships in 3-6 days

0

18

Exmark 100-1586

PULLEY-DRIVER

$85.99

$

Usually ships in 3-6 days

0
