M216KA - Exmark 21" Metro Walk-Behind Mower, 6hp Kawasaki (SN: 370000 - 439999) (2003) Handle And Control Assembly Parts Diagram

21" Metro Walk-Behind Mower, 6hp Kawasaki

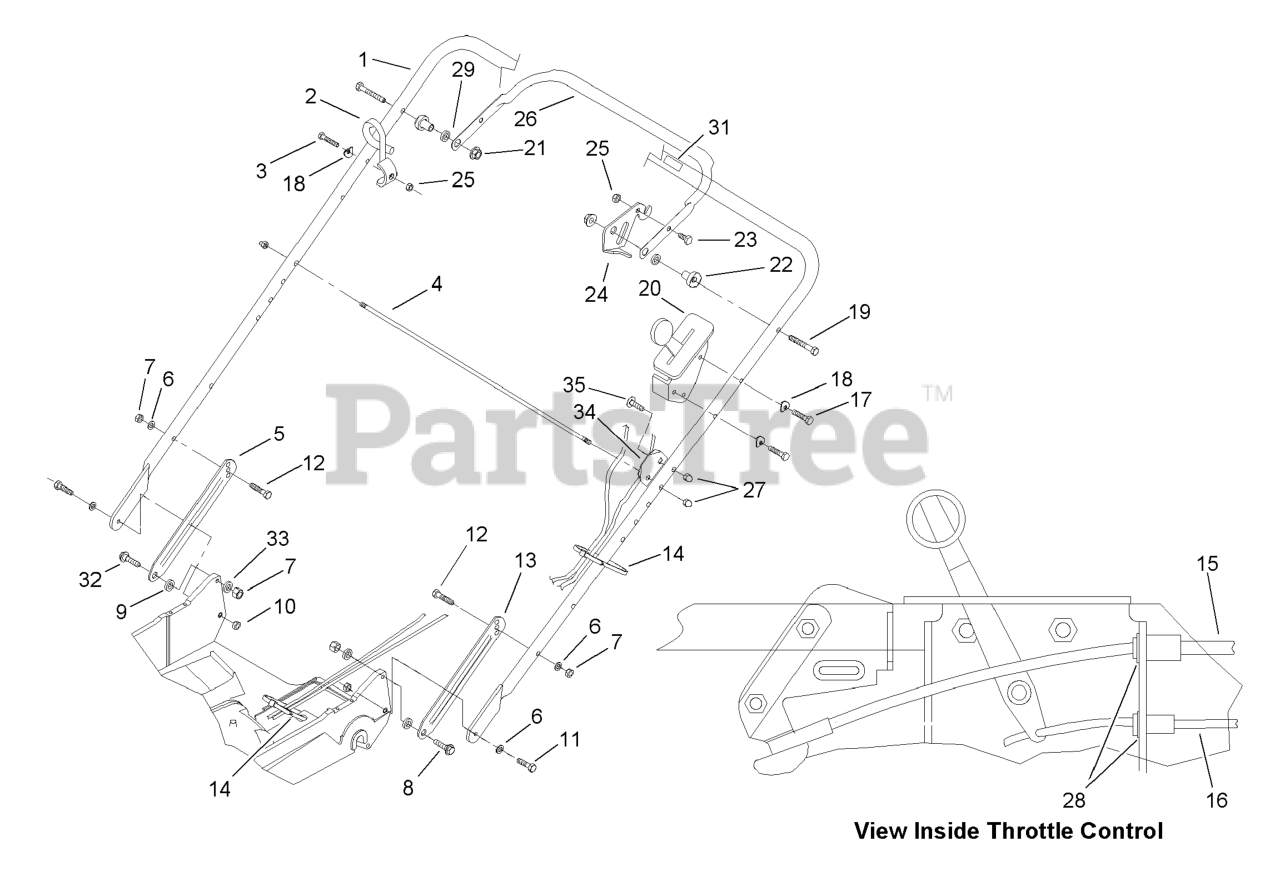

Handle And Control Assembly Parts Diagram

  • Title

1

Exmark 98-2000-03

HANDLE

$124.99

$

Usually ships in 3-6 days

0

2

Exmark 46-8081

GUIDE-ROPE

$22.99

$

Usually ships in 3-6 days

0

3

Exmark 321-9

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

4

Exmark 48-2810

ROD-SUPPORT, BAG

$28.99

$

Usually ships in 3-6 days

0

5

Exmark 103-0142

100-3297-03
(Superseded to 100-3297-03)

$9.49

$

In Stock, Qty 5

0

6

Exmark 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

7

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Exmark 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

9

Exmark 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

10

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

11

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

12

Exmark 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Exmark 103-0143

100-3298-03
(Superseded to 100-3298-03)

$19.99

$

In Stock, only 1 left!

0

14

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

15

Exmark 103-2684

CABLE-BRAKE

$74.99

$

Usually ships in 3-6 days

0

16

Exmark 70-1061

106-0888
(Superseded to 106-0888)

$19.99

$

In Stock, only 2 left!

0

17

Exmark 321-13

SCREW-HH

$4.49

$

In Stock, Qty 10

0

18

Exmark 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0

19

Exmark 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

20

Exmark 103-3385

108-2645
(Superseded to 108-2645)

$116.99

$

In Stock, only 1 left!

0

21

Exmark 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

22

Exmark 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

23

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Exmark 66-5350

LEVER-CONTROL

$13.99

$

Usually ships in 3-6 days

0

25

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

26

Exmark 61-8270-03

BAR-CONTROL

$103.99

$

Usually ships in 3-6 days

0

27

Exmark 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

28

Exmark 32151-86

E-RING

$2.99

$

In Stock, Qty 20+

0

29

Exmark 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

31

Exmark 104-1329

DECAL-PROTECTION, HEARING

$

$

Not available

32

Exmark 27-7211

SCREW-SHOULDER
(Superseded to 27-7211)

$5.49

$

In Stock, only 1 left!

0

33

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

34

Exmark 104-1326

DISCONTINUED (EXMARK)
(Superseded to 104-8586)

$

$

Not available

35

Exmark 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

99

Exmark 100-2886

109-4961
(Superseded to 109-4961)

Note: Not illustrated

$227.99

$

In Stock, only 4 left!

0
