M216HSPC - Exmark 21" Metro Self-Propelled Walk-Behind Mower, 6hp Honda (SN: 510000 - 599999) (2005) Gear Case Assembly For Self-Propelled Units Parts Diagram

21" Metro Self-Propelled Walk-Behind Mower, 6hp Honda

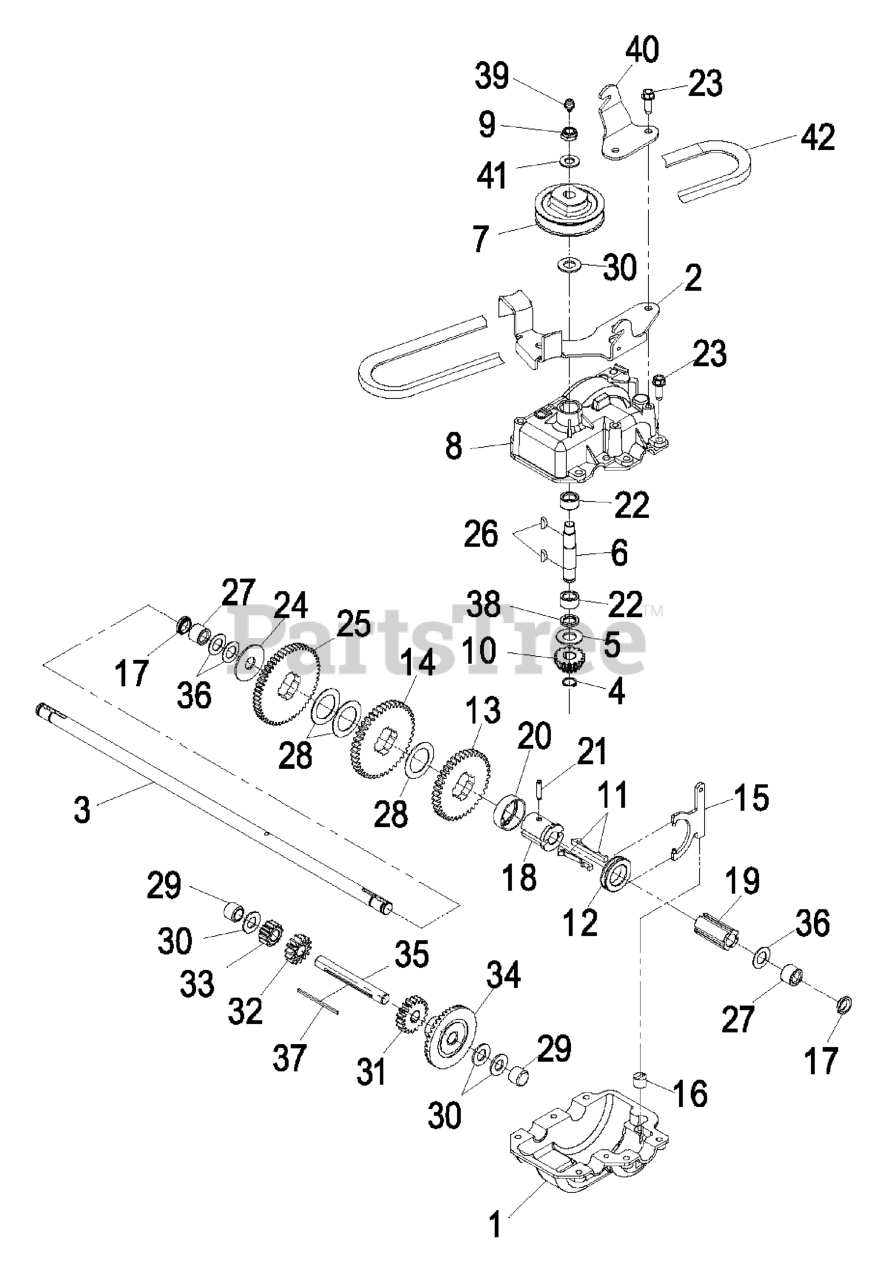

Gear Case Assembly For Self-Propelled Units Parts Diagram

  • Title

1

Exmark 74-1920

119-7863
(Superseded to 119-7863)

$49.99

$

In Stock, only 4 left!

0

2

Exmark 49-8461-03

BRACKET-GUIDE, BELT

$

$

Not available

3

Exmark 74-1890

SHAFT-OUTPUT

$133.99

$

In Stock, only 3 left!

0

4

Exmark 32151-57

RING-RETAINING

$5.49

$

In Stock, only 3 left!

0

5

Exmark 47-2910

WASHER-THRUST

$13.99

$

In Stock, only 1 left!

0

6

Exmark 68-8190

13-5149
(Superseded to 13-5149)

$98.99

$

Usually ships in 3-6 days

0

7

Exmark 39-6740

PULLEY

$54.99

$

Usually ships in 3-6 days

0

8

Exmark 74-1880

13-9739
(Superseded to 13-9739)

$83.99

$

Usually ships in 3-6 days

0

9

Exmark 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

10

Exmark 39-6660

PINION-BEVEL

$42.99

$

In Stock, only 1 left!

0

11

Exmark 29-9330

KEY-SHIFT

$27.99

$

In Stock, only 3 left!

0

12

Exmark 29-9340

COLLAR-SHIFT

$44.99

$

Usually ships in 3-6 days

0

13

Exmark 42-4740

GEAR-38T

$89.99

$

In Stock, only 3 left!

0

14

Exmark 29-9271

GEAR-42T

$94.99

$

Usually ships in 3-6 days

0

15

Exmark 60-8870

YOKE-SHIFT

$24.99

$

In Stock, only 2 left!

0

16

Exmark 29-9570

BUSHING-YOKE

$11.99

$

In Stock, only 4 left!

0

17

Exmark 47-6730

SEAL-OIL

$13.99

$

In Stock, Qty 20+

0

18

Exmark 55-8010

SLEEVE-GEAR

$19.99

$

In Stock, only 4 left!

0

19

Exmark 39-6720

SLEEVE

$17.99

$

Usually ships in 3-6 days

0

20

Exmark 55-8020

RETAINER-KEY

$9.99

$

Usually ships in 3-6 days

0

21

Exmark 3285-19

PIN-GROOVE

$2.99

$

In Stock, Qty 20+

0

22

Exmark 47-7270

BEARING-NEEDLE

$30.99

$

In Stock, only 4 left!

0

23

Exmark 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

24

Exmark 29-9690

WASHER

$13.99

$

Usually ships in 3-6 days

0

25

Exmark 46-3560

GEAR

$84.99

$

In Stock, only 2 left!

0

26

Exmark 3257-1

KEY-WOODRUFF

$2.99

$

In Stock, Qty 14

0

27

Exmark 48-2060

117-3500
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 16

0

28

Exmark 36-4770

WASHER

$6.49

$

Usually ships in 3-6 days

0

29

Exmark 252-103

BEARING-NEEDLE, CLOSED

$25.99

$

In Stock, only 2 left!

0

30

Exmark 36-4792

WASHER-THRUST

$1.49

$

In Stock, Qty 16

0

31

Exmark 39-6650

GEAR-18T

$14.99

$

In Stock, only 2 left!

0

32

Exmark 46-3550

GEAR-14T

$22.99

$

Usually ships in 3-6 days

0

33

Exmark 46-3540

GEAR-12T

$14.99

$

In Stock, Qty 5

0

34

Exmark 74-1760

GEAR-BEVEL

$42.99

$

Usually ships in 3-6 days

0

35

Exmark 53-7950

SHAFT-INTERMEDIATE

$55.99

$

In Stock, only 1 left!

0

36

Exmark 36-4780

WASHER-PLAIN

$7.99

$

In Stock, Qty 20+

0

37

Exmark 39-7842

KEY

$2.99

$

In Stock, Qty 13

0

38

Exmark 47-7260

SEAL

$8.99

$

In Stock, only 2 left!

0

39

Exmark 302-63

FITTING-GREASE, ZERK

$2.99

$

In Stock, Qty 19

0

40

Exmark 74-1750-03

BRACKET-ENGAGE, TRACTION

$13.99

$

Usually ships in 3-6 days

0

41

Exmark 3256-45

WASHER-FLAT

$0.99

$

In Stock, only 3 left!

0

42

Exmark 1-213237

V-BELT
(Superseded to 1-213237-SL)

$18.99

$

Usually ships in 3-6 days

0
