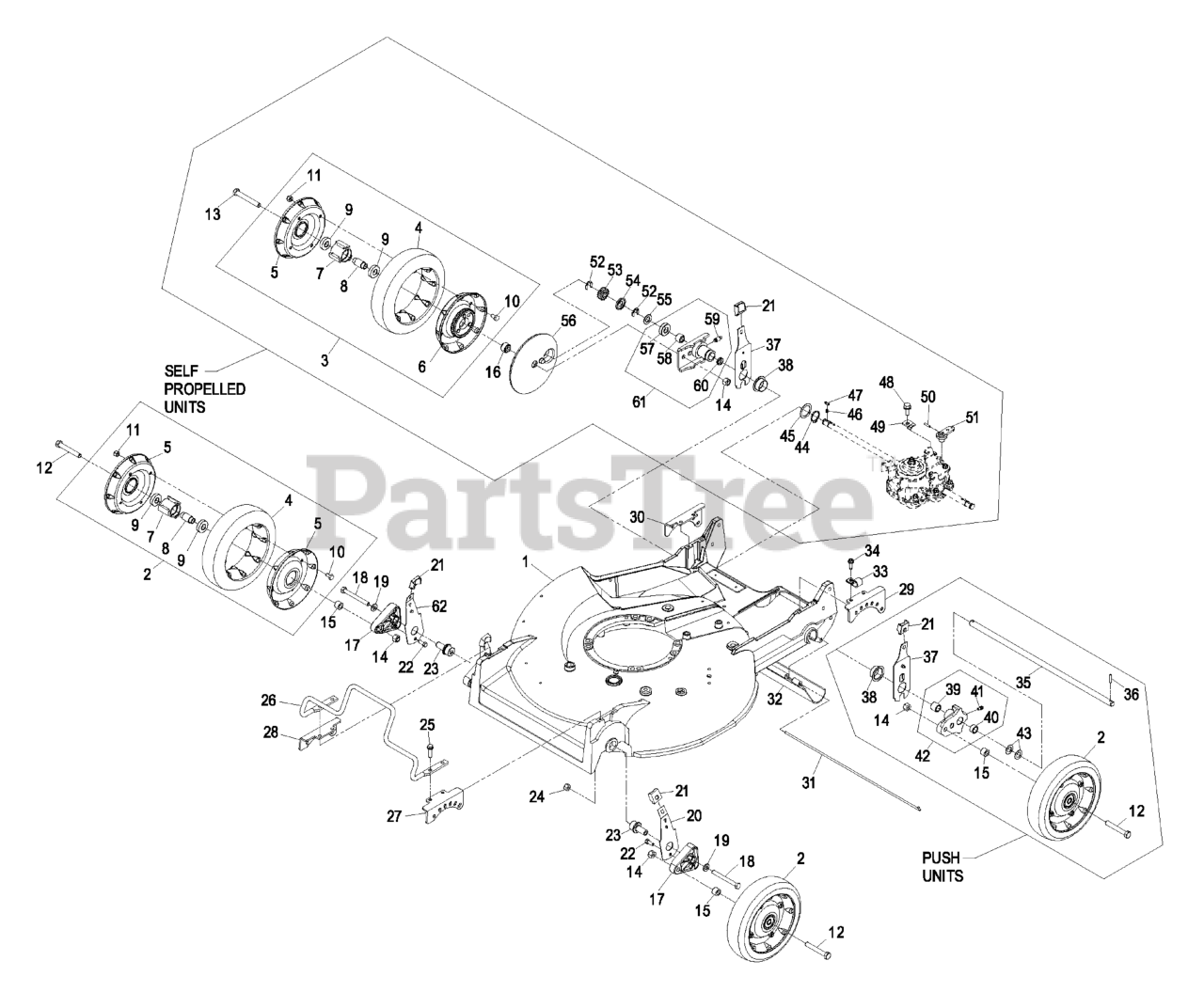

M216HSPC - Exmark 21" Metro Self-Propelled Walk-Behind Mower, 6hp Honda (SN: 510000 - 599999) (2005) Deck And Wheel Assembly Parts Diagram

21" Metro Self-Propelled Walk-Behind Mower, 6hp Honda

Deck And Wheel Assembly Parts Diagram

  • Title

1

Exmark 98-8027

DISCONTINUED

Note: For units without blade brake clutch.

$

$

Not available

Exmark 100-3288

HOUSING ASM

Note: For units with blade brake clutch.

$

$

Not available

2

Exmark 100-2870

121-1380
(Superseded to 121-1380)

Note: For push units.

$101.99

$

In Stock, only 3 left!

0

Exmark 100-2870

121-1380
(Superseded to 121-1380)

Note: For self-propelled units.

$101.99

$

In Stock, only 3 left!

0

3

Exmark 100-2860

121-1379
(Superseded to 121-1379)

Note: For self-propelled units.

$131.99

$

In Stock, only 2 left!

0

4

Exmark 53-7740

TIRE

$34.99

$

In Stock, only 3 left!

0

5

Exmark 53-7780-06

121-1365-06
(Superseded to 121-1365-06)

Note: For push units.

$19.99

$

In Stock, only 2 left!

0

Exmark 53-7780-06

121-1365-06
(Superseded to 121-1365-06)

Note: For self-propelled units.

$19.99

$

In Stock, only 2 left!

0

6

Exmark 92-4957-06

121-1378-06
(Superseded to 121-1378-06)

Note: For self-propelled units.

$30.99

$

In Stock, Qty 6

0

7

Exmark 52-2410

HUB-BEARING

$33.99

$

In Stock, Qty 14

0

8

Exmark 52-2440

SPACER-BEARING

$9.49

$

In Stock, Qty 5

0

9

Exmark 52-2450

BEARING-WHEEL

$18.99

$

In Stock, Qty 20+

0

10

Exmark 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

11

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

12

Exmark 3231-2

BOLT-CARR

Note: For push units.

$1.99

$

In Stock, Qty 12

0

Exmark 3231-2

BOLT-CARR

Note: For self-propelled units.

$1.99

$

In Stock, Qty 12

0

13

Exmark 323-13

SCREW-HH

Note: For self-propelled units.

$3.99

$

In Stock, only 4 left!

0

14

Exmark 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

15

Exmark 52-2480

SPACER-WHEEL

Note: For push units.

$6.49

$

In Stock, only 2 left!

0

Exmark 52-2480

SPACER-WHEEL

Note: For self-propelled units.

$6.49

$

In Stock, only 2 left!

0

16

Exmark 74-1650

SPACER-COVER, WHEEL

Note: For self-propelled units.

$9.49

$

In Stock, only 3 left!

0

17

Exmark 66-0580

ARM-PIVOT, FRONT

$18.99

$

In Stock, only 1 left!

0

18

Exmark 322-14

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

19

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

20

Exmark 103-5847

LH FRONT SPRING ARM ASM

$39.99

$

In Stock, Qty 5

0

21

Exmark 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

22

Exmark 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

23

Exmark 103-5538

BUSHING-PIVOT, WHEEL

$22.99

$

In Stock, only 2 left!

0

24

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

25

Exmark 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

26

Exmark 103-5897

109-7638
(Superseded to 109-7638)

$56.99

$

In Stock, only 2 left!

0

27

Exmark 103-7683

BRACKET,QUADRANT FRONT LH

$41.99

$

In Stock, only 2 left!

0

28

Exmark 103-7684

BRACKET,QUADRANT FRONT RH

$

$

Not available

29

Exmark 103-7685

BRACKET,QUADRANT REAR LH

$16.99

$

Usually ships in 3-6 days

0

30

Exmark 103-7686

BRACKET,QUADRANT REAR RH

$

$

Not available

31

Exmark 33-3208

ROD-SHIELD

$15.99

$

In Stock, Qty 12

0

32

Exmark 44-0580

112-9989
(Superseded to 112-9989)

$28.99

$

In Stock, Qty 8

0

33

Exmark 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

34

Exmark 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

35

Exmark 49-8790

SHAFT-AXLE, REAR

Note: For push units.

$58.99

$

Usually ships in 3-6 days

0

36

Exmark 32121-108

PIN-SPIROL

Note: For push units.

$6.99

$

Usually ships in 3-6 days

0

37

Exmark 66-7561

REAR SPRING ARM ASM

$19.99

$

In Stock, Qty 6

0

38

Exmark 48-2170

CAP-END

$10.99

$

In Stock, Qty 5

0

39

Exmark 47-2900

BUSHING

Note: For push units.

$6.49

$

In Stock, only 4 left!

0

40

Exmark 47-2890

BUSHING

Note: For push units.

$3.99

$

Usually ships in 3-6 days

0

41

Exmark 302-56

FITTING-GREASE

Note: For push units.

$5.49

$

In Stock, only 1 left!

0

42

Exmark 42-3510

PIVOT ARM ASM

Note: For push units.

$

$

Not available

43

Exmark 36-4780

WASHER-PLAIN

Note: For push units.

$7.99

$

In Stock, Qty 7

0

44

Exmark 32151-36

RING-RETAINING

Note: For self-propelled units.

$4.99

$

In Stock, only 4 left!

0

45

Exmark 74-1810

WASHER

Note: For self-propelled units.

$0.99

$

In Stock, Qty 7

0

46

Exmark 39-9650

SPRING-COMPRESSION

Note: For self-propelled units.

$3.49

$

In Stock, Qty 13

0

47

Exmark 612066

KEY

Note: For self-propelled units.

$2.49

$

In Stock, Qty 5

0

48

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

Note: For self-propelled units.

$2.99

$

In Stock, Qty 20+

0

49

Exmark 62-3720

CLAMP-CABLE

Note: For self-propelled units.

$2.99

$

In Stock, only 3 left!

0

50

Exmark 32121-99

PIN-SPRING

Note: For self-propelled units.

$1.49

$

In Stock, only 2 left!

0

51

Exmark 29-9560

LEVER-SHIFT

Note: For self-propelled units.

$16.99

$

Usually ships in 3-6 days

0

52

Exmark 32151-68

RING-RETAINING
(Superseded to 65-2720)

Note: For self-propelled units.

$1.49

$

In Stock, Qty 10

0

53

Exmark 39-9160

GEAR-PINION

Note: For self-propelled units.

$14.99

$

In Stock, Qty 5

0

54

Exmark 62-3830

WASHER-THRUST, OUTER

Note: For self-propelled units.

$3.99

$

In Stock, Qty 14

0

55

Exmark 49-7700

WASHER-THRUST, OUTER

Note: For self-propelled units.

$2.99

$

In Stock, Qty 15

0

56

Exmark 74-1640

COVER-WHEEL

Note: For self-propelled units.

$14.99

$

In Stock, Qty 11

0

57

Exmark 52-2450

BEARING-WHEEL

Note: For self-propelled units.

$18.99

$

In Stock, Qty 20+

0

58

Exmark 48-2060

117-3500
(Superseded to 117-3500)

Note: For self-propelled units.

$5.49

$

In Stock, Qty 16

0

59

Exmark 92-6316

ZERK

Note: For self-propelled units.

$1.99

$

In Stock, Qty 6

0

60

Exmark 47-6730

SEAL-OIL

Note: For self-propelled units.

$12.99

$

In Stock, Qty 20+

0

61

Exmark 74-1851

PIVOT ARM ASM

Note: For self-propelled units.

$95.99

$

In Stock, only 2 left!

0

62

Exmark 103-5848

103-6246
(Superseded to 103-6246)

$39.99

$

In Stock, only 1 left!

0
