M18-24652 - Kohler Magnum Engine, Made for Danpower Aps, 18hp, 13.4kW Carburetor (TP-2233-C) Parts Diagram

Magnum Engine, Made for Danpower Aps, 18hp, 13.4kW

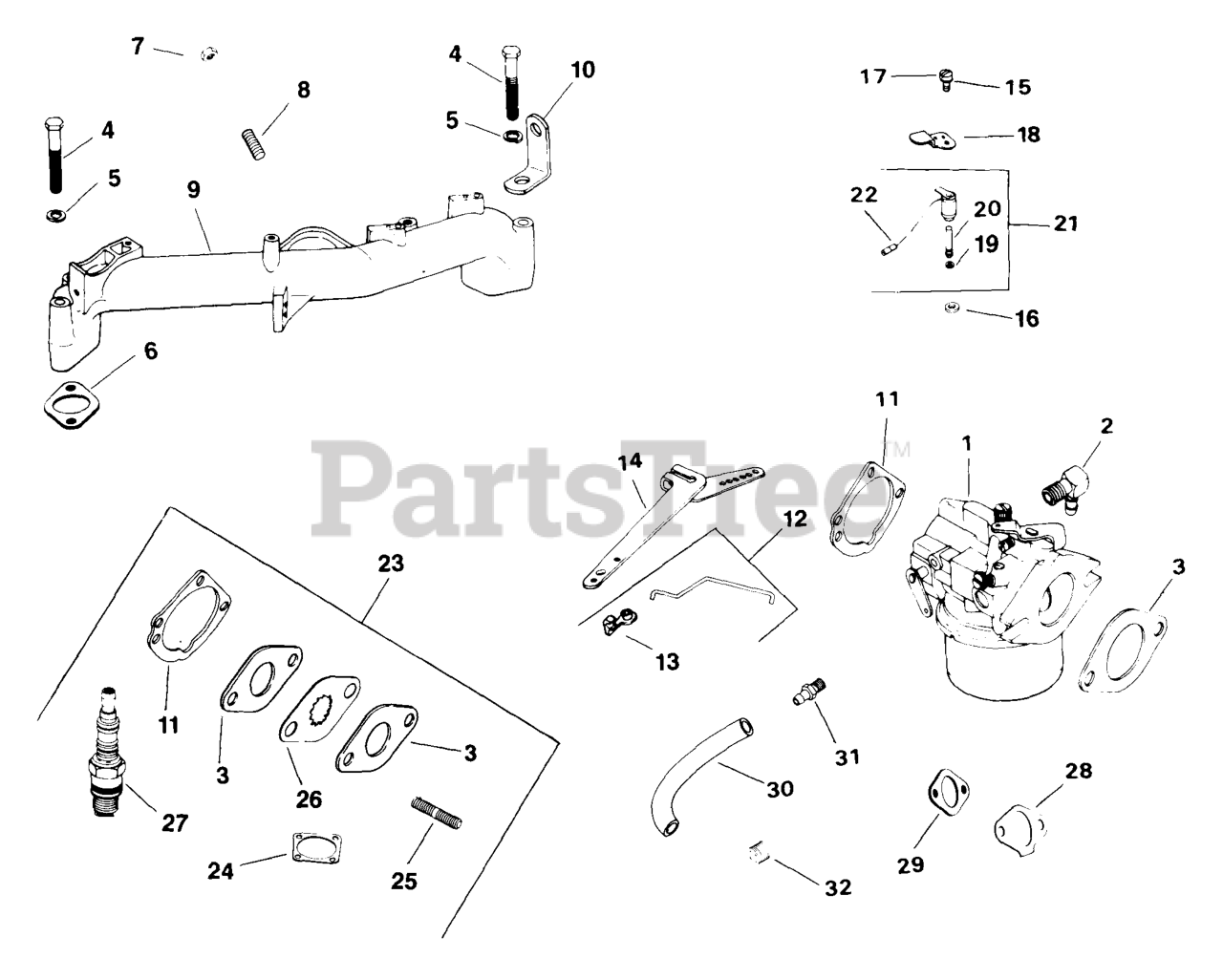

Carburetor (TP-2233-C) Parts Diagram

  • Title

1

Kohler 52 853 23-S

KIT, CARBURETOR W/LINKAGE - DISCONTINUED

Note: Use before Serial No. 2008100016. Includes 3,11-14, Carburetor assembly 52-053-50* or 52-053-66*.

$

$

Not available

5205364-S

Kohler 52 053 64-S

CARBURETOR - (#DSC)

Note: Use after Serial No. 2008100006. Includes 34-49, (Carburetor repair kit 25 757 02-S T & C kit shaft repair 25 757 05

$

$

Not available

2

Kohler 25 155 02-S

CONNECTOR, 90 DEG. HOSE

Note: For 1/4" I.D. rubber hose

$14.99

$

In Stock, only 1 left!

0

3

Kohler 271030-S

GASKET, CARBURETOR

$7.49

$

Usually ships in 2-5 days

0

4

Kohler X-6-8-S

SCREW, CAP HD 5/16-18x2 3/4" - DISC.

$2.49

$

Usually ships in 2-5 days

0

5

Kohler X-21-1-S

WASHER, SPRING LOCK 5/16"

$3.99

$

In Stock, only 3 left!

0

6

Kohler 52 041 09-S

GASKET

$13.99

$

Usually ships in 2-5 days

0

7

Kohler X-77-2-S

NUT, 5/16-18 GRADE 2 USE 25 100 21-S
(Superseded to 25 100 21-S)

$3.49

$

Usually ships in 2-5 days

0

8

Kohler X-352-37-S

STUD, 5/16-18X1" USE 25 072 06-S
(Superseded to 25 072 06-S)

$

$

Not available

9

Kohler 52 164 10-S

MANIFOLD - (#DSC)

$

$

Not available

10

Kohler 52 445 02-S

STRAP - DISCONTINUED

$

$

Not available

11

Kohler 25 041 06-S

GASKET, AIR CLEANER ELBOW

$3.49

$

In Stock, only 2 left!

0

12

Kohler 82 755 07-S

KIT, GOVERNOR LINKAGE - DISCONTINUED

Note: Use before Serial No. 2008100016

$

$

Not available

13

Kohler 25 158 09

BUSHING - USE 25 158 11
(Superseded to 25 158 11)

Note: Replaced by 25 158 11-S

$5.99

$

In Stock, Qty 15

0

14

Kohler 52 186 06-S

ARM, GOVERNOR - DISCONTINUED

$

$

Not available

2575702-S

Kohler 25 757 02-S

KIT, CARBURETOR REPAIR

$22.99

$

In Stock, only 1 left!

0

2575505-S

Kohler 25 755 05-S

KIT, SOLENOID

Note: Use after Serial No. 2008100006

$130.99

$

Usually ships in 2-5 days

0
