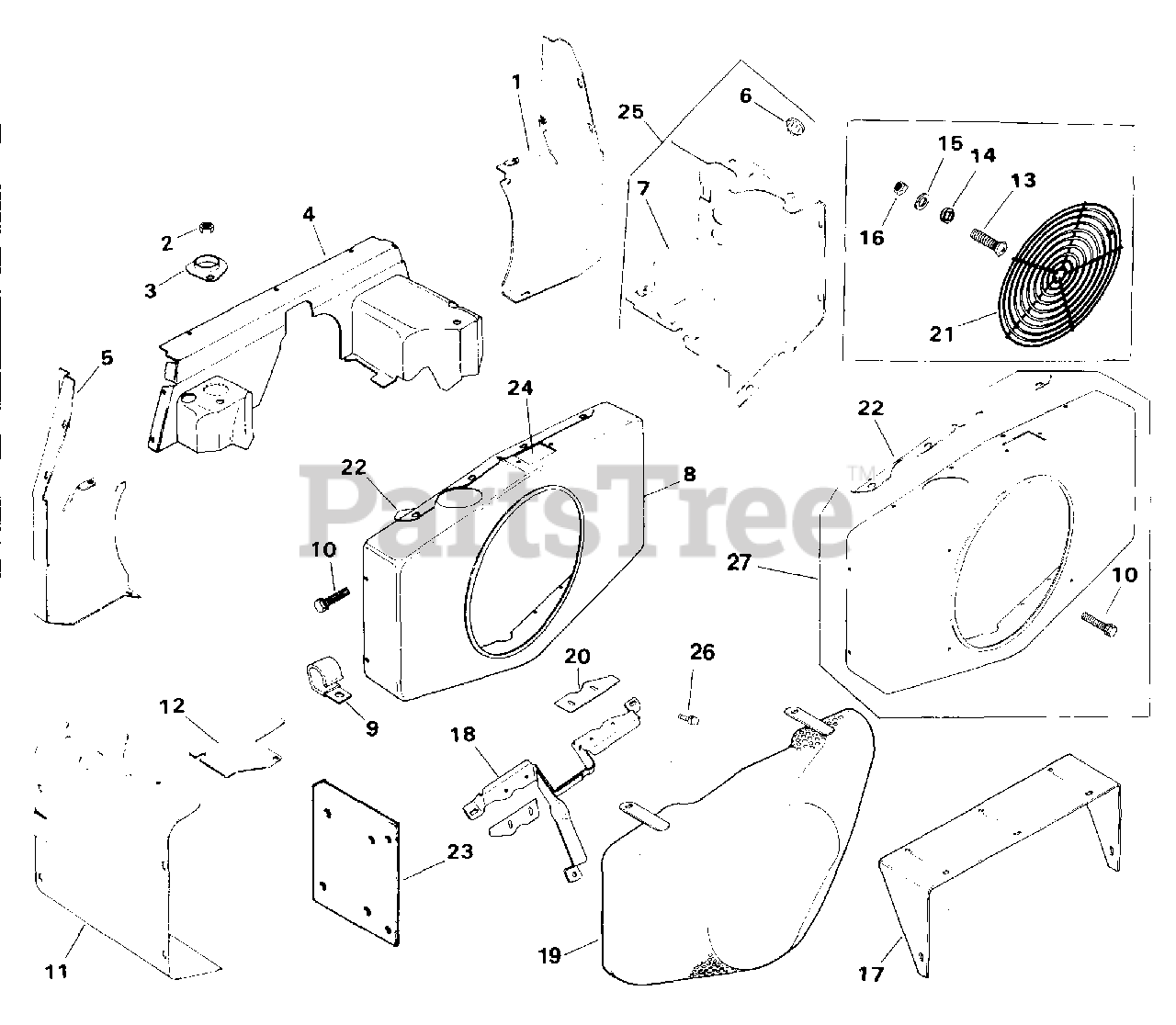

M18-24532 - Kohler Magnum Engine, Made for M & W Gear, 18hp, 13.4kW Baffles & Shroud 2-15-401 (TP-2233-C) Rev 10/27/2006 Parts Diagram

Magnum Engine, Made for M & W Gear, 18hp, 13.4kW

Baffles & Shroud 2-15-401 (TP-2233-C) Rev 10/27/2006 Parts Diagram

  • Title

1

Kohler 52 281 14-S

DUCT

Note: Before Serial No. 1835500016

$

$

Not available

1

Kohler 52 281 21-S

DUCT, AIR - (#DSC)

Note: After Serial No. 1835500006

$

$

Not available

2

Kohler X-82-2-S

NUT, 5/16-18 GRADE 5 USE 25 100 22-S
(Superseded to 25 100 22-S)

$3.49

$

Usually ships in 2-5 days

0

4

Kohler 52 282 01-S

COVER

$

$

Not available

5

Kohler 52 281 09-S

DUCT

$394.99

$

Usually ships in 2-5 days

0

7

Kohler 52 063 24-S

BAFFLE - (#DSC)

Note: Before Serial No. 1835500016.

$

$

Not available

7

Kohler 52 063 33-S

BAFFLE

Note: After Serial No. 1835500006.

$181.99

$

Usually ships in 2-5 days

0

10

Kohler X-67-83-S

SCREW, WSH HD TAP 1/4-20X7/16" USE 25 086 106-S
(Superseded to 25 086 106-S)

$2.49

$

In Stock, only 1 left!

0

11

Kohler 52 063 21-S

BAFFLE

$

$

Not available

12

Kohler 52 063 01-S

BAFFLE, FUEL PUMP - (#DSC)

$

$

Not available

13

Kohler 52 086 11-S

SCREW, WSH HD TAP 1/4-20-5/8" - DISCONTINUED

$

$

Not available

14

Kohler 52 468 16-S

WASHER, FLAT 5/16" - DISCONTINUED

$

$

Not available

22

Kohler 52 217 01-S

SUPPORT - (#DSC)

$

$

Not available

27

Kohler 52 755 70-S

KIT, BLOWER HOUSING

Note: Includes 10 [qty. 3],13 [qty. 2],14 [qty. 2],22

$334.99

$

Usually ships in 2-5 days

0
