M16KA322P - Exmark 32" Metro Walk-Behind Mower, 16hp Kawasaki (SN: 850000 - 919999) (2010) ECS Upper Handles and Controls Parts Diagram

32" Metro Walk-Behind Mower, 16hp Kawasaki

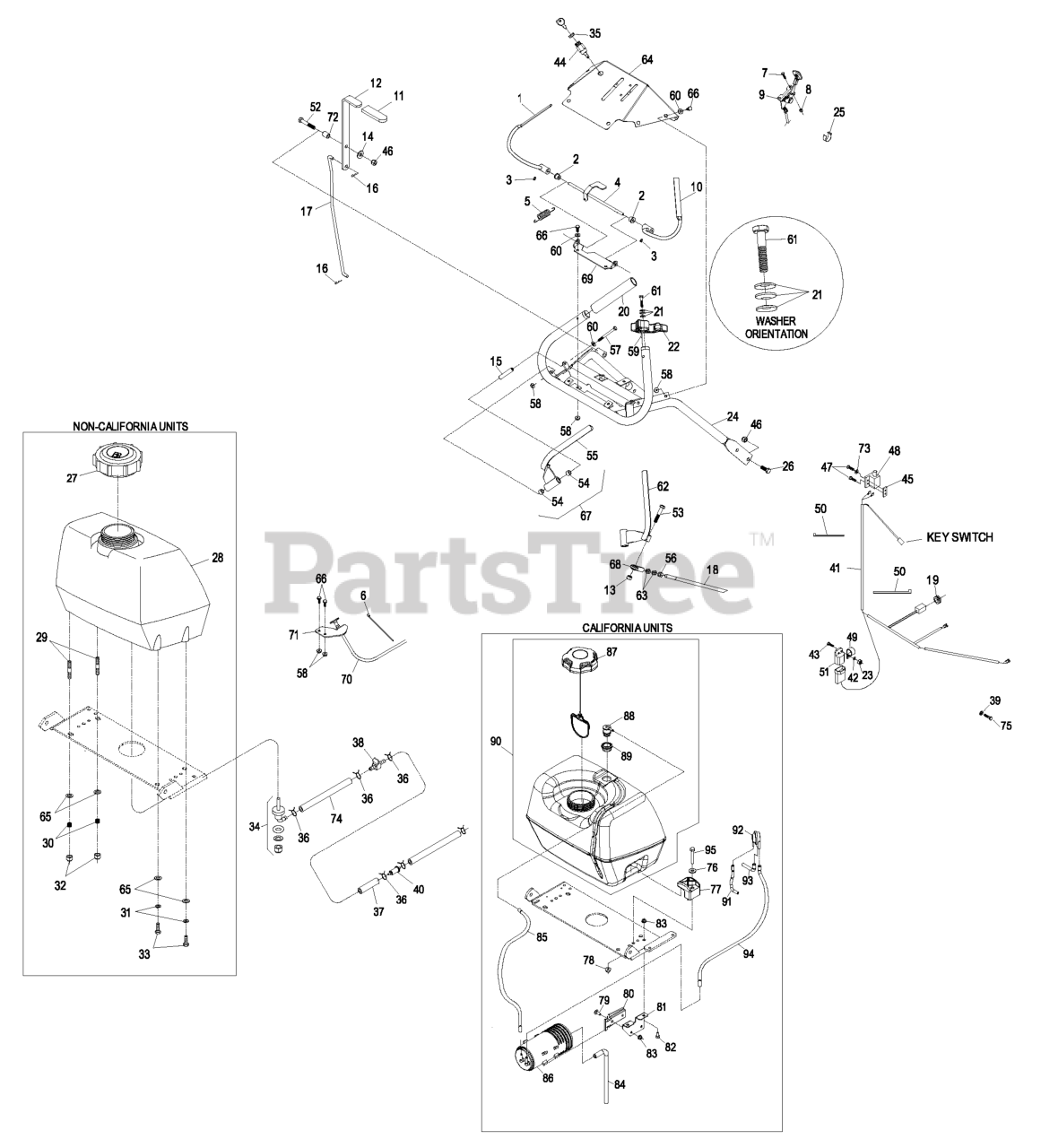

ECS Upper Handles and Controls Parts Diagram

  • Title

1

Exmark 103-1566-03

116-4079
(Superseded to 116-4079)

Note: Use Pro-lock (Retaining) Part No. 1-840023 (.5 ml tube) on inside of bore of OPC hub and on fuel tank studs going into tank.

$33.99

$

In Stock, only 1 left!

0

2

Exmark 1-303365

BUSHING-NYLON

$5.49

$

In Stock, Qty 10

0

3

Exmark 1-803322

SCREW-SET

Note: Use Pro-lock (Nut type) Part No. 1-840022 (.5 ml tube) on setscrew threads, thumb latch screws and on fuel tank fitting.

$1.49

$

In Stock, Qty 5

0

4

Exmark 103-0769-03

WLD,OPC LEVER AXLE

$42.99

$

In Stock, Qty 7

0

5

Exmark 1-303363

SPRING-EXTENSION

$6.49

$

In Stock, only 1 left!

0

6

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

7

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

8

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Exmark 116-2426

CONTROL, THROTTLE

$44.99

$

In Stock, Qty 15

0

10

Exmark 103-1567-03

116-4080
(Superseded to 116-4080)

Note: Use Pro-lock (Retaining) Part No. 1-840023 (.5 ml tube) on inside of bore of OPC hub and on fuel tank studs going into tank.

$33.99

$

In Stock, only 1 left!

0

11

Exmark 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 6

0

12

Exmark 103-1629

CLUTCH LEVER-W/GRIP

$20.99

$

Usually ships in 3-6 days

0

13

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

15

Exmark 103-0027

BUSHING-LEVER, DRIVE

$20.99

$

In Stock, only 3 left!

0

16

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

17

Exmark 103-1627

LINKAGE,UPPER BLADE (PLT)

$17.99

$

Usually ships in 3-6 days

0

18

Exmark 103-1604

LINKAGE,DRIVE (PLT)

$23.99

$

In Stock, only 2 left!

0

19

Exmark 1-543296

GROMMET

$8.49

$

In Stock, only 4 left!

0

20

Exmark 103-0815

GRIP-BAR, HANDLE

$10.99

$

In Stock, Qty 10

0

21

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 14

0

22

Exmark 103-1631

ASM,LH THUMB LATCH

Note: (Not Shown)

$33.99

$

Usually ships in 3-6 days

0

Exmark 103-1630

ASM,RH THUMB LATCH

$33.99

$

In Stock, only 1 left!

0

23

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

24

Exmark 103-0770-03

WLD,UPPER ECS HANDLE

$608.99

$

Usually ships in 3-6 days

0

25

Exmark 1-303088

CLIP-CABLE

$2.99

$

Usually ships in 3-6 days

0

26

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

27

Exmark 109-0346

CAP-FUEL, GAS

$21.99

$

In Stock, only 1 left!

0

28

Exmark 103-2893

ASM,FUEL TANK W/B

$276.99

$

Usually ships in 3-6 days

0

29

Exmark 1-633023

STUD

Note: Use Pro-lock (Retaining) Part No. 1-840023 (.5 ml tube) on inside of bore of OPC hub and on fuel tank studs going into tank.

$6.49

$

Usually ships in 3-6 days

0

30

Exmark 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, only 2 left!

0

31

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

32

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

33

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

34

Exmark 103-2605

FITTING-FUEL, BULKHEAD

Note: Use Pro-lock (Nut type) Part No. 1-840022 (.5 ml tube) on setscrew threads, thumb latch screws and on fuel tank fitting.

$36.99

$

In Stock, only 2 left!

0

35

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.49

$

In Stock, Qty 6

0

36

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 8

0

37

Exmark 109-0306

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

38

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

39

Exmark 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

40

Pn 41019-1055 W/6" Fuel Line

$

$

Not available

41

Exmark 116-2661

HARNESS-WIRE

$95.99

$

Usually ships in 3-6 days

0

42

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

43

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

44

Exmark 1-403121

SWITCH & KEY (INCLUDES NU

$22.99

$

In Stock, only 3 left!

0

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 7

0

45

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

46

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

47

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

48

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

49

Exmark 1-323229

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

0

50

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

51

Exmark 1-323430

MODULE-INTERLOCK

$140.99

$

In Stock, only 1 left!

0

52

Exmark 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

53

Exmark 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

54

Exmark 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 8

0

55

Exmark 103-2466-03

103-2514
(Superseded to 103-2514)

$127.99

$

In Stock, only 4 left!

0

56

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

57

Exmark 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

58

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

59

Exmark 103-0464

126-2925
(Superseded to 126-2925)

$1.49

$

In Stock, only 2 left!

0

60

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

61

Exmark 103-0235

SCREW-HH

Note: Use Pro-lock (Nut type) Part No. 1-840022 (.5 ml tube) on setscrew threads, thumb latch screws and on fuel tank fitting.

$1.49

$

In Stock, Qty 19

0

62

Exmark 103-2465-03

116-4082
(Superseded to 116-4082)

$51.99

$

Usually ships in 3-6 days

0

63

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

64

Exmark 109-4934

ASM, CONSOLE W/DECALS

$255.99

$

Usually ships in 3-6 days

0

65

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

66

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

67

Exmark 103-2513

DRIVE LEVER-ASM, RH

$127.99

$

In Stock, only 1 left!

0

Exmark 103-2514

DRIVE LEVER-ASM, LH

$127.99

$

In Stock, only 4 left!

0

68

Exmark 103-2463

JOINT-BALL, END

$28.99

$

In Stock, only 2 left!

0

69

Exmark 103-0489-03

BRACKET,OPC AXLE

$24.99

$

In Stock, only 1 left!

0

70

Exmark 103-1796

CABLE-CHOKE

$44.99

$

In Stock, only 1 left!

0

71

Exmark 103-1797-01

BRACKET-CABLE, CHOKE

$9.49

$

Usually ships in 3-6 days

0

72

Exmark 1-633080

BUSHING-LEVER, LIFT

$10.99

$

Usually ships in 3-6 days

0

73

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

74

Exmark 109-0293

HOSE-FUEL

$6.49

$

Usually ships in 3-6 days

0

75

Exmark 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

76

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

77

Exmark 107-4543

CLAMP

$14.99

$

Usually ships in 3-6 days

0

78

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

79

Exmark 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

80

Exmark 114-0292

BRACKET-CANISTER, CARBON

$12.99

$

Usually ships in 3-6 days

0

81

Exmark 115-4486-01

BRACKET-CANISTER, CARBON

$14.99

$

Usually ships in 3-6 days

0

82

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

83

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

84

Exmark 115-0962

HOSE-VENT, CANISTER

$8.99

$

In Stock, only 2 left!

0

85

Exmark 114-0286

HOSE-VENT

$8.49

$

Usually ships in 3-6 days

0

86

Exmark 117-1221

CANISTER-CARBON, 800CC

$75.99

$

In Stock, only 1 left!

0

87

Exmark 115-4465

137-4119
(Superseded to 137-4119)

$27.99

$

In Stock, only 1 left!

0

88

Exmark 114-0285

119-3547
(Superseded to 119-3547)

$16.99

$

In Stock, only 4 left!

0

89

Exmark 119-6549

114-0284
(Superseded to 114-0284)

$2.99

$

In Stock, Qty 19

0

90

Exmark 116-1661

126-1525
(Superseded to 140-4343)

$279.99

$

In Stock, only 1 left!

0

91

Exmark 116-2394

HOSE-VENT, FORMED

$7.99

$

In Stock, only 2 left!

0

92

Exmark 116-2232

VALVE-CONTROL, VACUUM

$33.99

$

In Stock, only 3 left!

0

93

Exmark 116-2233

HOSE-VENT, FORMED

$7.99

$

Usually ships in 3-6 days

0

94

Exmark 116-2231

HOSE-VENT, FORMED

$35.99

$

Usually ships in 3-6 days

0

95

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0
