M16-711503 - Kohler Magnum Engine, Basic Version, 16hp, 11.9kW Retractable Starter (Cont.) 03090097500 Parts Diagram

Magnum Engine, Basic Version, 16hp, 11.9kW

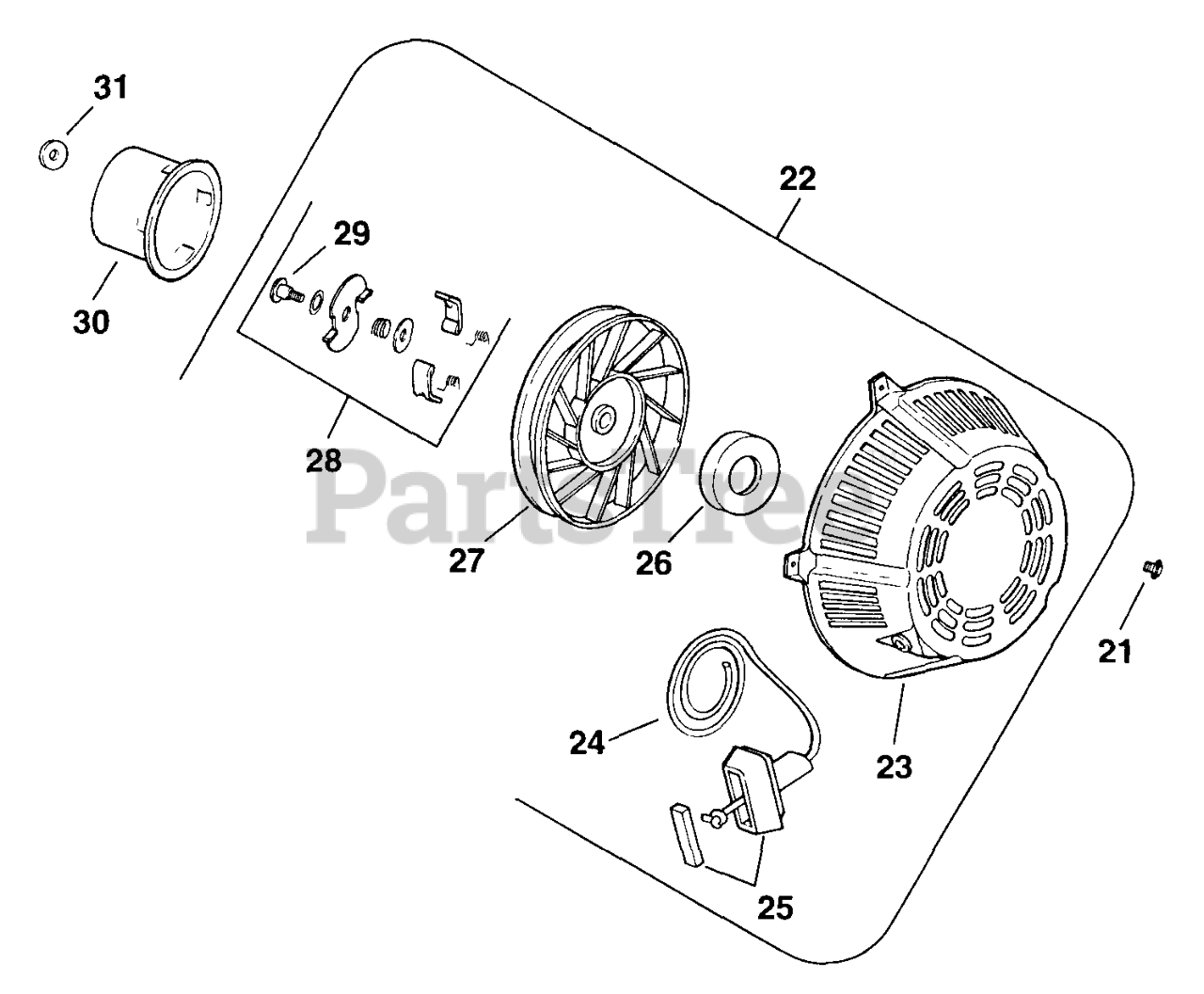

Retractable Starter (Cont.) 03090097500 Parts Diagram

  • Title

21

Kohler 41 086 06-S

SCREW, FLG HD 10-24X1/4"

Note: Use after Serial No. 2027800003

$3.49

$

Usually ships in 2-5 days

0

22

Kohler 12 165 01-S

STARTER ASSY,RETRACTABLE-USE 12 165 03-S
(Superseded to 24 165 02-S)

Note: Includes 23-29. Use after Serial No. 2027800003

$76.99

$

In Stock, only 1 left!

0

23

Kohler 12 081 01-S

HOUSING - DISCONTINUED

$

$

Not available

24

Kohler 12 160 01-S

ROPE - DISCONTINUED

$

$

Not available

25

Kohler 234452

HANDLE - USE 25 166 01
(Superseded to 25 166 01)

$15.99

$

In Stock, Qty 10

0

26

Kohler 12 089 06-S

SPRING & KEEPER - (#DSC)

$

$

Not available

27

Kohler 12 093 01-S

PULLEY - (#DSC)

$

$

Not available

28

Kohler 12 757 06-S

KIT, DOG REPAIR - (#DSC)

Note: Includes 29

$

$

Not available

29

Kohler 41 086 09-S

SCREW - DISCONTINUED

$

$

Not available

30

Kohler 15 109 01-S

CUP

Note: Use after Serial No. 2027800003

$21.99

$

In Stock, only 1 left!

0

31

Kohler 47 468 09-S

WASHER, FLAT 13/32" - DISCONTINUED

Note: Use after Serial No. 2027800003

$

$

Not available
