Exmark M15KA483P - Exmark 48" Metro Walk-Behind Mower, 15hp Kawasaki (SN: 720000 - 789999) (2008) Pistol Grip Upper Handles and Controls Parts Lookup with Diagrams

1

Exmark 109-4695

KIT,HANDLE W/DECALS METRO

Note: (109-4682-03)

$583.99

$

Usually ships in 3-6 days

2

Exmark 1-303097

104-9838

(Superseded to 104-9838) 

$5.99

$

In Stock, Qty 20+

3

Exmark 1-324279

137-9508

(Superseded to 137-9508) 

Note: (LH) Not illustrated.

$27.99

$

In Stock, only 2 left!

4

Exmark 1-303019

GRIP-LATCH

$2.99

$

In Stock, Qty 5

5

Exmark 1-302006

DRIVE LEVER ASM

$55.99

$

In Stock, Qty 10

6

Exmark 1-303021

GRIP-LEVER, DRIVE

$1.49

$

In Stock, Qty 17

7

Exmark 1-324280

137-9507

(Superseded to 137-9507) 

Note: (RH)

$27.99

$

In Stock, only 2 left!

8

Exmark 1-323229

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

9

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

10

Exmark 1-323359

LINKAGE-WHEEL, DRIVE

$21.99

$

In Stock, only 4 left!

11

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

12

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

13

Exmark 321-18

SCREW-HH

$2.49

$

In Stock, Qty 20+

14

Exmark 109-3958

CONTROL-THROTTLE

$41.99

$

In Stock, Qty 10

15

Exmark 103-1797-01

BRACKET-CABLE, CHOKE

$9.49

$

Usually ships in 3-6 days

16

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

17

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

18

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

19

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

20

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

21

Exmark 1-808250

PIN-LEVER, DRIVE

$2.99

$

In Stock, Qty 20+

22

Exmark 1-803001

NUT-PUSH

$1.49

$

In Stock, Qty 20+

23

Exmark 1-806340

PIN-ROLL

(Superseded to 1-806340) 

$5.49

$

In Stock, Qty 20+

24

Exmark 1-323549

SPACER

$13.99

$

Usually ships in 3-6 days

25

Exmark 1-412185-03

LEVER-RH

Note: (RH) Use Pro-lock (Retaining) Part No. 1-840023 (.5 ml tube) on inside of bore of OPC hub and on fuel tank studs going into tank.

$81.99

$

In Stock, only 3 left!

26

Exmark 1-803322

SCREW-SET

Note: Use Pro-lock (Nut type) Part No. 1-840022 (.5 ml tube) on setscrew threads, and on fuel tank fitting.

$1.49

$

In Stock, Qty 20+

27

Exmark 1-412183-03

LEVER-LH

Note: (LH) Use Pro-lock (Retaining) Part No. 1-840023 (.5 ml tube) on inside of bore of OPC hub and on fuel tank studs going into tank.

$78.99

$

In Stock, only 4 left!

28

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

29

Exmark 1-303365

BUSHING-NYLON

$5.49

$

In Stock, Qty 20+

30

Exmark 1-322192-03

WLD,ROD OPC

$47.99

$

In Stock, only 2 left!

31

Exmark 1-403121

SWITCH & KEY (INCLUDES NU

$22.99

$

In Stock, only 3 left!

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

32

Exmark 1-303363

SPRING-EXTENSION

$6.49

$

In Stock, Qty 17

33

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, Qty 14

34

Exmark 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

35

Exmark 1-303088

CLIP-CABLE

$2.99

$

Usually ships in 3-6 days

36

Exmark 1-303160

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

37

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

38

Exmark 1-323298

LINKAGE-BLADE, UPPER

$90.99

$

Usually ships in 3-6 days

39

Exmark 1-322157

116-6331

(Superseded to 116-6331) 

$54.99

$

Usually ships in 3-6 days

40

Exmark 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 6

41

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

42

Exmark 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

43

Exmark 1-303335

TIE-PLASTIC

(Superseded to 3290-378) 

$0.99

$

In Stock, Qty 7

44

Exmark 103-2893

ASM,FUEL TANK W/B

$307.99

$

Usually ships in 3-6 days

45

Exmark 109-0346

CAP-FUEL, GAS

$21.99

$

In Stock, Qty 10

46

Exmark 1-808286

PIN-CLEVIS

$5.49

$

In Stock, Qty 20+

47

Exmark 103-2605

FITTING-FUEL, BULKHEAD

Note: Use Pro-lock (Nut type) Part No. 1-840022 (.5 ml tube) on setscrew threads, and on fuel tank fitting.

$36.99

$

In Stock, Qty 7

48

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.49

$

In Stock, Qty 20+

49

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 20+

50

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

51

Exmark 109-0306

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

52

Exmark 1-323430

MODULE-INTERLOCK

$140.99

$

In Stock, only 3 left!

53

Exmark 1-413510

CLIP-LOOM

$2.99

$

In Stock, Qty 13

54

Exmark 109-0293

HOSE-FUEL

$6.49

$

Usually ships in 3-6 days

55

Exmark 1-543296

GROMMET

$8.49

$

In Stock, only 4 left!

56

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

57

Exmark 33113-016

SCREW-HH

$0.99

$

Usually ships in 3-6 days

58

Kawasaki Pn 41019-1055 W/6" Fuel Line

$

Not available 

59

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

60

Exmark 103-1610

HARNESS-WIRING

$130.99

$

Usually ships in 3-6 days

61

Exmark 1-633023

STUD

Note: Use Pro-lock (Retaining) Part No. 1-840023 (.5 ml tube) on inside of bore of OPC hub and on fuel tank studs going into tank.

$6.49

$

In Stock, only 2 left!

62

Exmark 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, Qty 16

63

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

64

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, Qty 9

65

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

66

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

67

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

68

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

69

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

70

Exmark 103-1796

CABLE-CHOKE

$44.99

$

In Stock, Qty 9

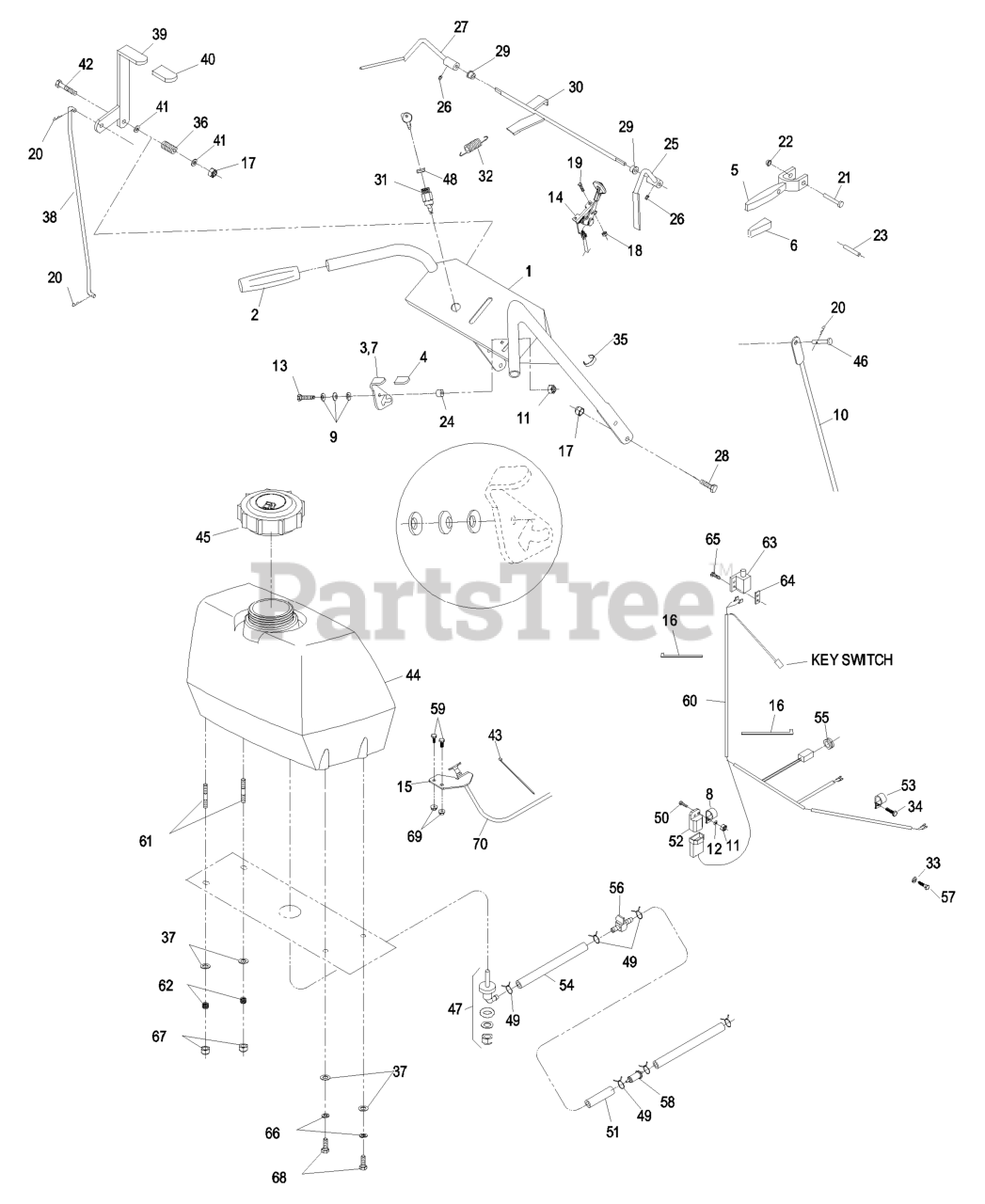

M15KA483P - Exmark 48" Metro Walk-Behind Mower, 15hp Kawasaki (SN: 720000 - 789999) (2008) Pistol Grip Upper Handles and Controls Parts Diagram

Pistol Grip Upper Handles and Controls Parts Diagram
