Exmark M15KA322P - Exmark 32" Metro Walk-Behind Mower, 15hp Kawasaki (SN: 790000 - 849999) (2009) ECS Upper Handles and Controls Parts Lookup with Diagrams

1

Exmark 103-1566-03

116-4079

(Superseded to 116-4079) 

Note: (LH) Use Pro-lock (Retaining) Part No. 1-840023 (.5 ml tube) on inside of bore of OPC hub and on fuel tank studs going into tank.

$33.99

$

In Stock, only 1 left!

2

Exmark 1-303365

BUSHING-NYLON

$5.49

$

In Stock, Qty 10

3

Exmark 1-803322

SCREW-SET

Note: Use Pro-lock (Nut type) Part No. 1-840022 (.5 ml tube) on setscrew threads, thumb latch screws and on fuel tank fitting.

$1.49

$

In Stock, Qty 5

4

Exmark 103-0769-03

WLD,OPC LEVER AXLE

$42.99

$

In Stock, only 2 left!

5

Exmark 1-303363

SPRING-EXTENSION

$6.49

$

In Stock, only 1 left!

6

Exmark 1-303335

TIE-PLASTIC

(Superseded to 3290-378) 

$0.99

$

In Stock, Qty 8

7

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

8

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

9

Exmark 109-3958

CONTROL-THROTTLE

$42.99

$

In Stock, only 1 left!

10

Exmark 103-1567-03

116-4080

(Superseded to 116-4080) 

Note: (RH) Use Pro-lock (Retaining) Part No. 1-840023 (.5 ml tube) on inside of bore of OPC hub and on fuel tank studs going into tank.

$33.99

$

In Stock, only 1 left!

11

Exmark 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 6

12

Exmark 103-1629

CLUTCH LEVER-W/GRIP

$20.99

$

Usually ships in 3-6 days

13

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

14

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

15

Exmark 103-0027

BUSHING-LEVER, DRIVE

$20.99

$

In Stock, only 3 left!

16

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

17

Exmark 103-1627

LINKAGE,UPPER BLADE (PLT)

$17.99

$

In Stock, only 1 left!

18

Exmark 103-1604

LINKAGE,DRIVE (PLT)

$23.99

$

In Stock, only 2 left!

19

Exmark 1-543296

GROMMET

$8.49

$

In Stock, only 4 left!

20

Exmark 103-0815

GRIP-BAR, HANDLE

$10.99

$

In Stock, Qty 10

21

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 14

22

Exmark 103-1631

ASM,LH THUMB LATCH

Note: (LH) (Not Shown)

$33.99

$

Usually ships in 3-6 days

Exmark 103-1630

ASM,RH THUMB LATCH

Note: (RH)

$33.99

$

In Stock, only 1 left!

23

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

24

Exmark 103-0770-03

WLD,UPPER ECS HANDLE

$608.99

$

Usually ships in 3-6 days

25

Exmark 1-303088

CLIP-CABLE

$2.99

$

Usually ships in 3-6 days

26

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

27

Exmark 109-0346

CAP-FUEL, GAS

$21.99

$

In Stock, only 2 left!

28

Exmark 103-2893

ASM,FUEL TANK W/B

$276.99

$

Usually ships in 3-6 days

29

Exmark 1-633023

STUD

Note: Use Pro-lock (Retaining) Part No. 1-840023 (.5 ml tube) on inside of bore of OPC hub and on fuel tank studs going into tank.

$6.49

$

Usually ships in 3-6 days

30

Exmark 1-633349

SPRING-TANK, FUEL

$5.49

$

Usually ships in 3-6 days

31

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

32

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

33

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

34

Exmark 103-2605

FITTING-FUEL, BULKHEAD

Note: Use Pro-lock (Nut type) Part No. 1-840022 (.5 ml tube) on setscrew threads, thumb latch screws and on fuel tank fitting.

$35.99

$

In Stock, only 3 left!

35

Exmark 103-0498

NUT-SWITCH, IGNITION

$2.99

$

In Stock, Qty 6

36

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 8

37

Exmark 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

38

Exmark 1-603770

VALVE-FUEL

$7.99

$

In Stock, Qty 14

39

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, only 4 left!

40

Kawasaki Pn 41019-1055 W/6" Fuel Line

$

Not available 

41

Exmark 103-1610

HARNESS-WIRING

$111.99

$

Usually ships in 3-6 days

42

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

43

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

44

Exmark 1-403121

SWITCH & KEY (INCLUDES NU

$21.99

$

In Stock, only 3 left!

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 7

45

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

46

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

47

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

48

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$18.99

$

In Stock, Qty 20+

49

Exmark 1-323229

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

50

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

51

Exmark 1-323430

MODULE-INTERLOCK

$135.99

$

In Stock, only 1 left!

52

Exmark 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

53

Exmark 322-9

SCREW-HH

$3.49

$

In Stock, only 1 left!

54

Exmark 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 8

55

Exmark 103-2466-03

103-2514

(Superseded to 103-2514) 

Note: (LH)

$127.99

$

In Stock, only 4 left!

56

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

57

Exmark 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

58

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

59

Exmark 103-0464

126-2925

(Superseded to 126-2925) 

$1.49

$

In Stock, only 2 left!

60

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

61

Exmark 103-0235

SCREW-HH

Note: Use Pro-lock (Nut type) Part No. 1-840022 (.5 ml tube) on setscrew threads, thumb latch screws and on fuel tank fitting.

$1.49

$

In Stock, Qty 19

62

Exmark 103-2465-03

116-4082

(Superseded to 116-4082) 

Note: (RH)

$51.99

$

Usually ships in 3-6 days

63

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

64

Exmark 109-4934

ASM, CONSOLE W/DECALS

Note: (109-4649-03)

$255.99

$

Usually ships in 3-6 days

65

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

66

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

67

Exmark 103-2513

DRIVE LEVER-ASM, RH

Note: (RH)

$127.99

$

In Stock, only 1 left!

Exmark 103-2514

DRIVE LEVER-ASM, LH

Note: (LH)

$127.99

$

In Stock, only 4 left!

68

Exmark 103-2463

JOINT-BALL, END

$28.99

$

In Stock, only 2 left!

69

Exmark 103-0489-03

BRACKET,OPC AXLE

$24.99

$

In Stock, only 1 left!

70

Exmark 103-1796

CABLE-CHOKE

$47.99

$

In Stock, only 1 left!

71

Exmark 103-1797-01

BRACKET-CABLE, CHOKE

$8.99

$

Usually ships in 3-6 days

72

Exmark 1-633080

BUSHING-LEVER, LIFT

$10.99

$

Usually ships in 3-6 days

73

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

74

Exmark 109-0293

HOSE-FUEL

$6.49

$

Usually ships in 3-6 days

75

Exmark 1-413510

CLIP-LOOM

$2.99

$

In Stock, Qty 13

76

Exmark 109-0306

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

77

Exmark 33113-016

SCREW-HH

$0.99

$

Usually ships in 3-6 days

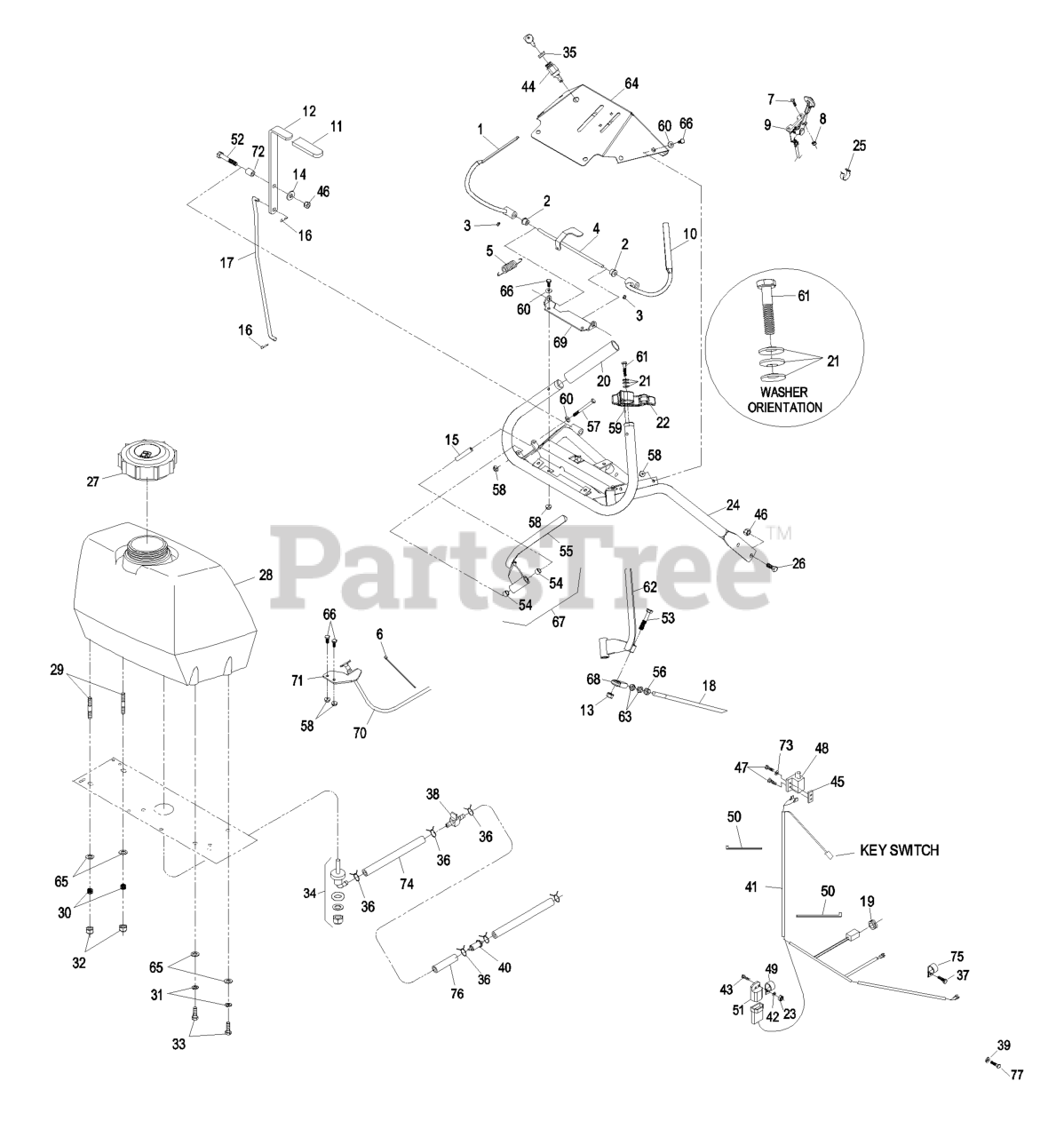

M15KA322P - Exmark 32" Metro Walk-Behind Mower, 15hp Kawasaki (SN: 790000 - 849999) (2009) ECS Upper Handles and Controls Parts Diagram

ECS Upper Handles and Controls Parts Diagram
