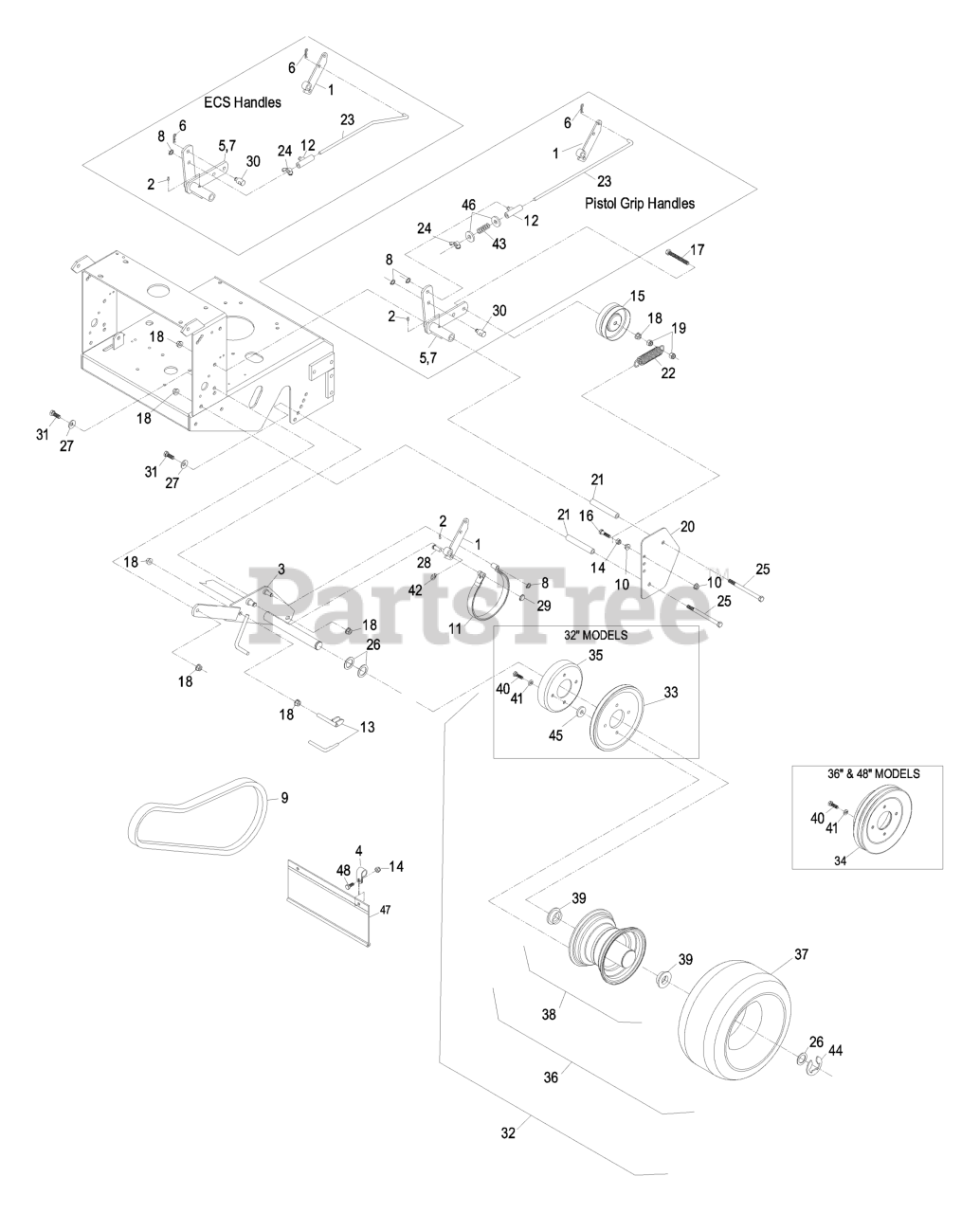

M15KA322P - Exmark 32" Metro Walk-Behind Mower, 15hp Kawasaki (SN: 670000 - 719999) (2007) Engine Deck Group (Cont.) Parts Diagram

32" Metro Walk-Behind Mower, 15hp Kawasaki

Engine Deck Group (Cont.) Parts Diagram

  • Title

1

Exmark 103-1611-03

ARM-BRAKE

$78.99

$

Usually ships in 3-6 days

0

2

Exmark 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

3

Exmark 1-322117-03

AXLE

$383.99

$

Usually ships in 3-6 days

0

Exmark 1-322141-03

AXLE

$503.99

$

Usually ships in 3-6 days

0

4

Exmark 2412-104

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

5

Exmark 103-1615-03

116-7542-03
(Superseded to 116-7542-03)

$88.99

$

Usually ships in 3-6 days

0

6

Exmark 1-806003

PIN-COTTER

Note: For units with ECS handles only.

$1.99

$

In Stock, Qty 20+

0

Exmark 1-806003

PIN-COTTER

Note: For units with pistol grip handles only.

$1.99

$

In Stock, Qty 20+

0

7

Exmark 103-1616-03

116-7543-03
(Superseded to 116-7543-03)

$88.99

$

Usually ships in 3-6 days

0

8

Exmark 32151-47

RING-RETAINING

Note: For units with pistol grip handles only.

$2.99

$

In Stock, Qty 20+

0

Exmark 32151-47

RING-RETAINING

Note: For units with ECS handles only.

$2.99

$

In Stock, Qty 20+

0

9

Exmark 1-323288

BELT,WHEEL DRIVE
(Superseded to 1-323288-SL)

$132.99

$

In Stock, Qty 20+

0

Exmark 1-323344

BELT-WHEEL, DRIVE

$74.99

$

Usually ships in 3-6 days

0

10

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Exmark 1-323262

BAND-BRAKE

$93.99

$

In Stock, Qty 8

0

12

Exmark 110-5866

SWIVEL-BRAKE

$26.99

$

Usually ships in 3-6 days

0

13

Exmark 1-412358

SCRAPER

$34.99

$

Usually ships in 3-6 days

0

Exmark 1-603430

SCRAPER

$20.99

$

Usually ships in 3-6 days

0

14

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Exmark 1-323277

IDLER-WHEEL, DRIVE

$34.99

$

In Stock, only 1 left!

0

Exmark 1-323352

IDLER-WHEEL, DRIVE

$28.99

$

Usually ships in 3-6 days

0

16

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

17

Exmark 99-8664

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

18

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

19

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

20

Exmark 1-323287-01

SHIELD-WHEEL, DRIVE

$51.99

$

Usually ships in 3-6 days

0

21

Exmark 1-323283

SPACER-SHIELD

$9.49

$

In Stock, only 2 left!

0

22

Exmark 1-603402

SPRING-EXTENSION

$8.49

$

In Stock, Qty 20+

0

23

Exmark 1-323548

LINKAGE-BRAKE

Note: For units with pistol grip handles only.

$28.99

$

In Stock, only 1 left!

0

Exmark 103-1619

LINKAGE-BRAKE, LH

Note: For units with ECS handles only.

$21.99

$

Usually ships in 3-6 days

0

Exmark 103-1620

LINKAGE-BRAKE, RH

Note: For units with ECS handles only.

$21.99

$

Usually ships in 3-6 days

0

24

Exmark 1-513959

WINGNUT-NYLOCK

$6.99

$

In Stock, Qty 5

0

25

Exmark 323-39

SCREW-HH

$12.99

$

In Stock, Qty 20+

0

26

Exmark 1-523157

WASHER-SPACER

$1.99

$

In Stock, Qty 20+

0

Exmark 1-543436

WASHER-SPACER

$1.49

$

In Stock, Qty 20+

0

27

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

28

Exmark 1-323307

PIN-CLEVIS

$5.49

$

In Stock, Qty 6

0

29

Exmark 1-803051

RING-RETAIN,PUSH,EXT,FLAT

$2.99

$

In Stock, Qty 13

0

30

Exmark 103-1864

SWIVEL-LEVER, DRIVE

Note: For units with pistol grip handles only.

$12.99

$

Usually ships in 3-6 days

0

Exmark 103-1618

SWIVEL-DRIVE LEVER, 3/8 L

Note: For units with ECS handles only.

$21.99

$

In Stock, Qty 6

0

31

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

32

Exmark 109-4721

DRIVE WHEEL ASM

$

$

Not available

Exmark 1-324193

DRIVE WHEEL ASM
(Superseded to 126-4481)

$286.99

$

Usually ships in 3-6 days

0

33

Exmark 1-323349

SHEAVE-WHEEL, DRIVE

$66.99

$

Usually ships in 3-6 days

0

34

Exmark 109-4359

DRUM AND SHEAVE ASM

$86.99

$

Usually ships in 3-6 days

0

35

Exmark 1-323261

DRUM-BRAKE

$20.99

$

In Stock, Qty 6

0

36

Exmark 1-323719

WHEEL AND TIRE ASM

$240.99

$

Usually ships in 3-6 days

0

Exmark 1-323346

WHEEL AND TIRE ASM
(Superseded to 130-8366)

$192.99

$

Usually ships in 3-6 days

0

37

Exmark 1-323720

TIRE-TURFMASTER

$127.99

$

Usually ships in 3-6 days

0

Exmark 1-323361

TIRE

$84.99

$

Usually ships in 3-6 days

0

38

Exmark 1-323328

WHEEL AND HUB ASM

$176.99

$

Usually ships in 3-6 days

0

Exmark 1-323360

WHEEL AND HUB ASM

$139.99

$

Usually ships in 3-6 days

0

39

Exmark 1-323329

BEARING-FLANGED

$66.99

$

In Stock, only 2 left!

0

40

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

41

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

42

Exmark 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 10

0

43

Exmark 1-323245

SPRING-COMPRESSION

Note: For units with pistol grip handles only.

$6.99

$

In Stock, Qty 12

0

44

Exmark 1-808519

RING-SNAP

$2.99

$

In Stock, Qty 20+

0

45

Exmark 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

46

Exmark 3256-23

WASHER-PLAIN

Note: For units with pistol grip handles only.

$2.49

$

In Stock, Qty 20+

0

47

Exmark 98-3259

SHIELD-TRAILING

$75.99

$

In Stock, Qty 12

0

48

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

Exmark 1-850337

PAINT,SPRAY RED

$36.99

$

In Stock, Qty 12

0

Exmark 103-9140

PAINT, TOUCH UP

$23.99

$

In Stock, only 1 left!
