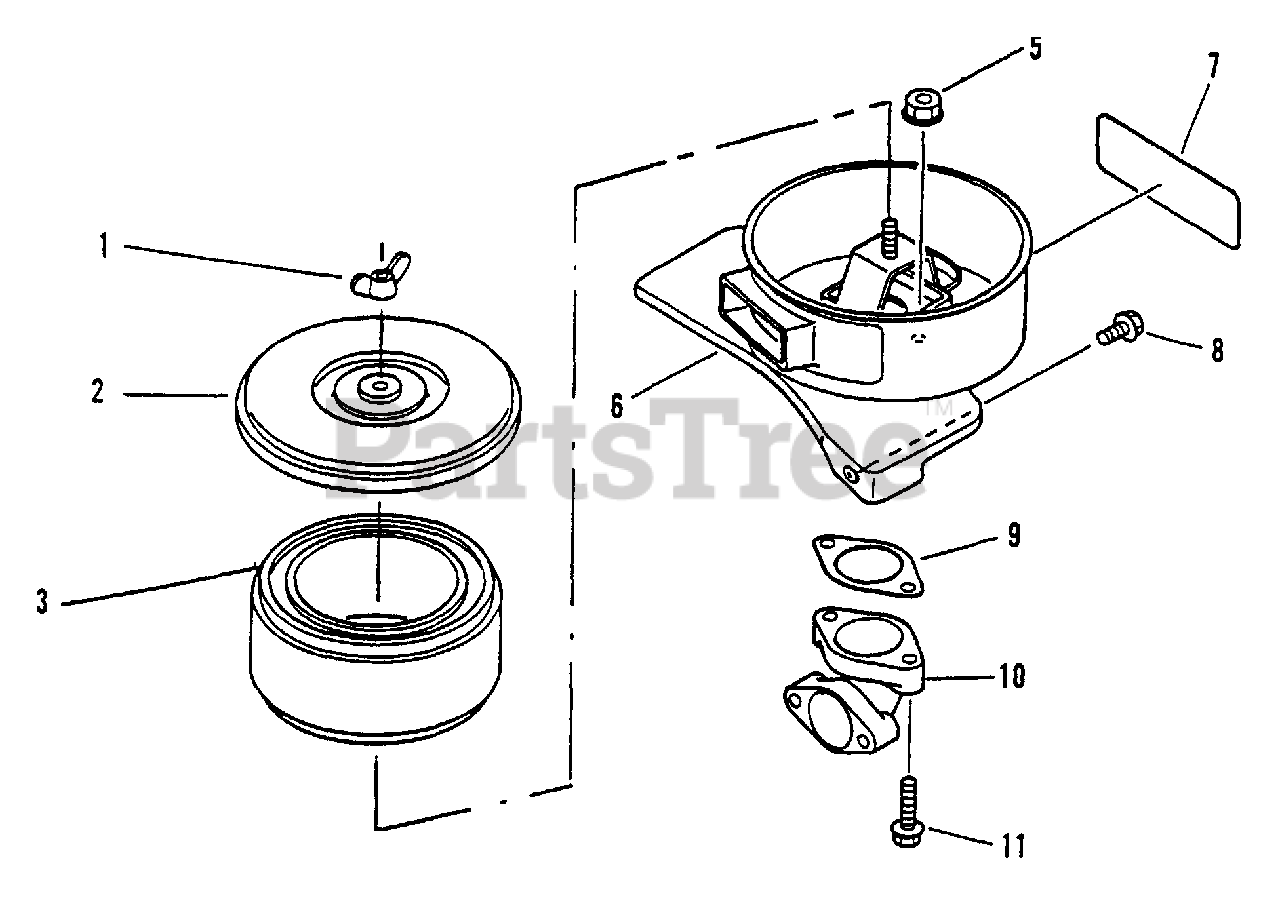

M14V A1Z0 - Echo Lawn Mower Engine Intake, Heavy Duty Air Cleaner Asy Parts Diagram

Lawn Mower Engine

Intake, Heavy Duty Air Cleaner Asy Parts Diagram

  • Title

Echo 88990011720

AIR CLEANER ASSY - HEAVY DUTY
(Superseded to 88990011721)

Note: Includes ITEMS 1 - 11

$

$

Not available

1

Echo 90052800006

WINGNUT - 6

$1.49

$

Usually ships in 2-4 days

0

2

Echo 13030811720

COVER, AIR FILTER

$15.99

$

Usually ships in 2-4 days

0

3

Echo 13030511620

FILTER, AIR

$32.99

$

Usually ships in 2-4 days

0

5

Echo 90051800006

NUT - 6 -- FLANGE

$1.49

$

In Stock, Qty 13

0

6

Echo 13031411720

CASE, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

7

Echo 89018711720

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

8

Echo 90010706010

SCREW - 6X10

$0.99

$

Usually ships in 2-4 days

0

9

Echo 13001011720

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

10

Echo 13050511720

MANIFOLD, INTAKE
(Superseded to Discontinued)

$

$

Not available

11

Echo 90010306025

BOLT - 6X25
(Superseded to Discontinued)

$

$

Not available
