M14-601556 - Kohler Magnum Engine, Made for Ransomes, 14hp, 10.5kW Instrument Panel 03070075503 Parts Diagram

Magnum Engine, Made for Ransomes, 14hp, 10.5kW

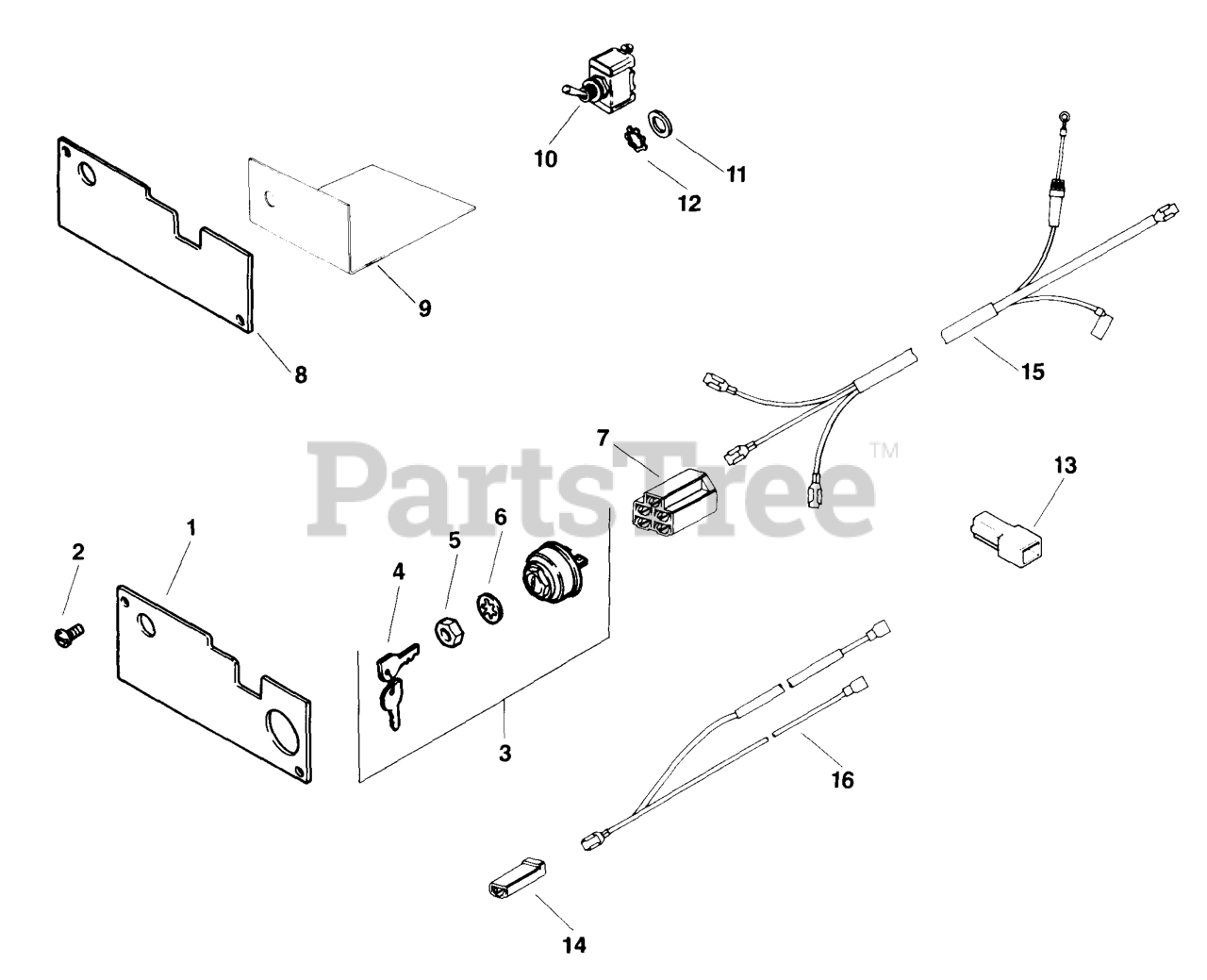

Instrument Panel 03070075503 Parts Diagram

  • Title

1

Kohler 47 378 06-S

PANEL - DISCONTINUED

$

$

Not available

2

Kohler X-131-1-S

SCREW - DISCONTINUED

$

$

Not available

3

Kohler 25 099 04-S

SWITCH ASSY, KEY (KM)-USE 25 099 32-S
(Superseded to 25 099 32-S)

Note: Includes 4-6

$63.99

$

In Stock, only 4 left!

0

4

Kohler 48 340 01-S1

KEY, SET -USE 48 340 01-S
(Superseded to 48 340 01-S)

Note: Set of two

$4.99

$

In Stock, only 1 left!

0

5

Kohler 48 100 01-S

NUT, KEY SWITCH

$4.49

$

In Stock, only 1 left!

0

6

Kohler 48 468 02-S

WASHER, INTERNAL TOOTH

$3.49

$

Usually ships in 2-5 days

0

7

Kohler 48 155 01-S

CONNECTOR

$8.49

$

Usually ships in 2-5 days

0

15

Kohler 47 176 08-S

HARNESS

Note: Use after Serial No. 2025700003

$125.99

$

Usually ships in 2-5 days

0

16

Kohler 47 176 14

HARNESS - DISCONTINUED

Note: Use after Serial No. 2025700003

$

$

Not available

4751833-S

Kohler 47 518 33-S

LEAD

Note: 11" - 14 gauge - uninsulated push on tab terminals. Not Illustrated

$13.99

$

In Stock, only 1 left!

0

4711310-S

Kohler 47 113 10-S

DECAL, CONTROL PANEL - DISC.

Note: Not Illustrated

$

$

Not available
