M14-601505 - Kohler Magnum Engine, Basic Version, 14hp, 10.5kW Baffles & Shroud 03070019502 Parts Diagram

Magnum Engine, Basic Version, 14hp, 10.5kW

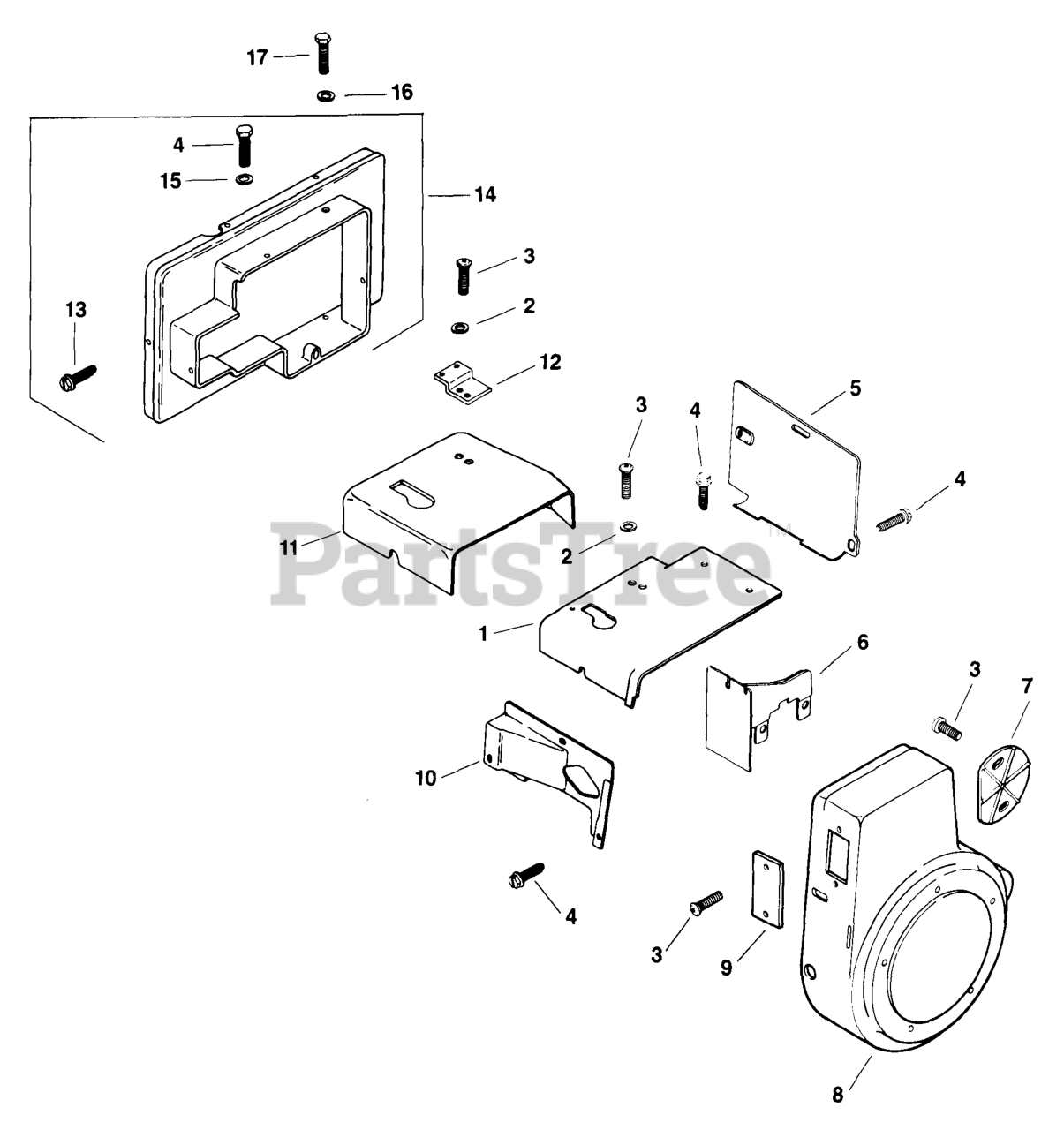

Baffles & Shroud 03070019502 Parts Diagram

  • Title

1

Kohler 45 063 07-S

BAFFLE

$48.99

$

Usually ships in 2-5 days

0

2

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

$3.49

$

In Stock, only 3 left!

0

3

Kohler 47 086 08-S

SCREW, POZ TRS HD 1/4-20X5/8" - DISCONTINUED

$4.49

$

In Stock, only 1 left!

0

4

Kohler 52 086 11-S

SCREW, WSH HD TAP 1/4-20-5/8" - DISCONTINUED

$

$

Not available

5

Kohler 47 063 10-S

BAFFLE, CYLINDER

$29.99

$

Usually ships in 2-5 days

0

6

Kohler 47 063 07-S

BAFFLE, INNER - DISCONTINUED

$

$

Not available

8

Kohler 47 027 37-S

KIT, HOUSING

Note: w/o Retractable starter holes-front. Use before Serial No. 1908000013

$221.99

$

Usually ships in 2-5 days

0

8

Kohler 47 027 38

HOUSING - USE 47 027 44
(Superseded to 47 027 44-S)

Note: Replaced by 47 027 44-S Use after Serial No. 1908000003

$

$

Not available

10

Kohler 47 063 06-S

BAFFLE, SIDE AIR - DISCONTINUED

$

$

Not available

4711308

Kohler 47 113 08

DECAL - USE 47 113 22
(Superseded to 47 113 36-S)

Note: Replaced by 47 113 22

$

$

Not available
