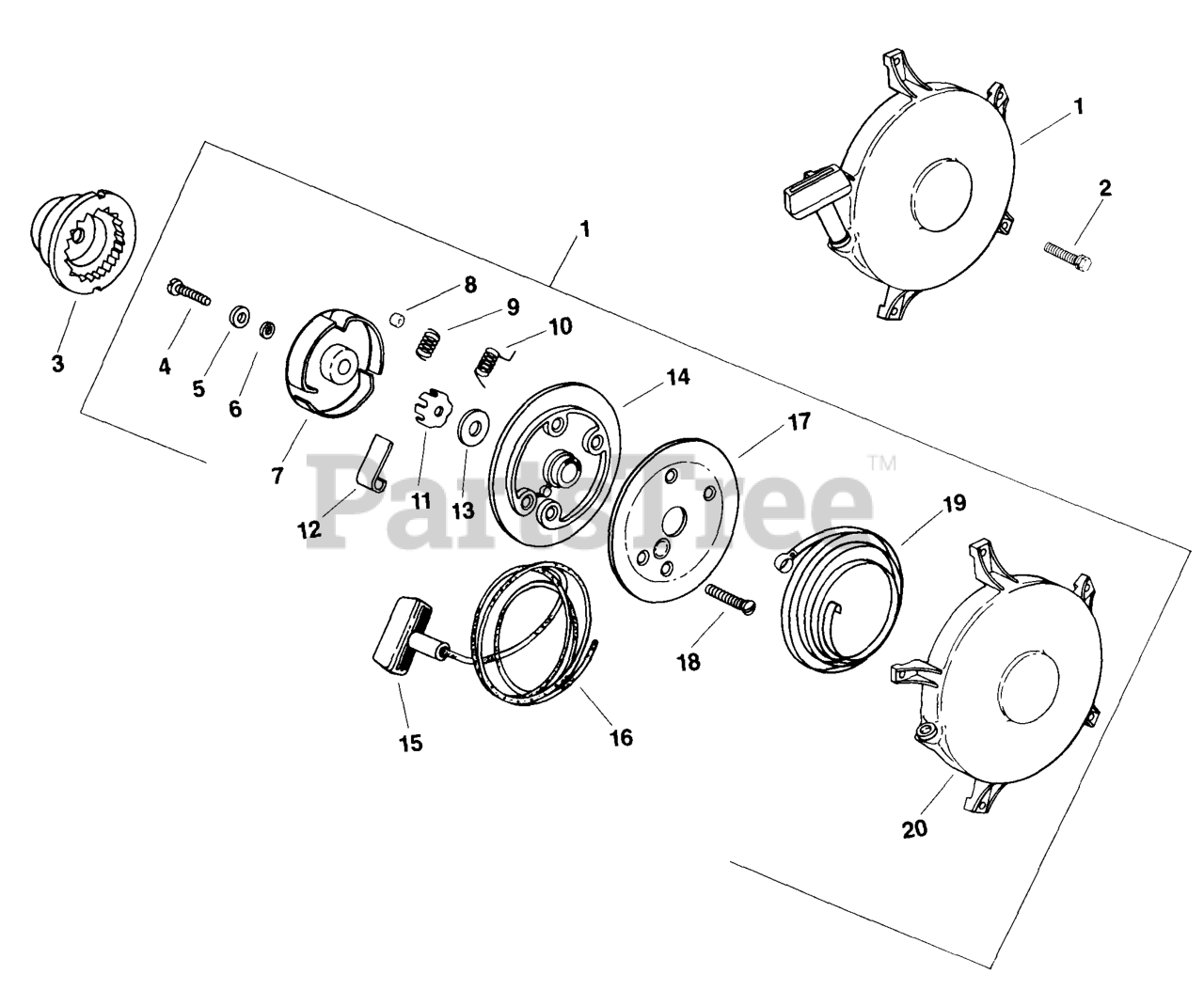

M14-601504 - Kohler Magnum Engine, Basic Version, 14hp, 10.5kW Retractable Starter 0307008511 Parts Diagram

Magnum Engine, Basic Version, 14hp, 10.5kW

Retractable Starter 0307008511 Parts Diagram

  • Title

1

Kohler 47 165 01-S

STARTER

Note: Includes 4-20

$492.99

$

Usually ships in 2-5 days

0

2

Kohler X-156-2-S

SCREW

$3.49

$

Usually ships in 2-5 days

0

3

Kohler 47 109 01-S

CUP, DRIVE - DISCONTINUED

$

$

Not available

4

Kohler 231691-S

SCREW

$8.49

$

Usually ships in 2-5 days

0

5

Kohler 231690-S

WASHER - DISCONTINUED

$

$

Not available

6

Kohler 231693-S

WASHER

$8.49

$

Usually ships in 2-5 days

0

7

Kohler 231699-S

RETAINER

$45.99

$

Usually ships in 2-5 days

0

8

Kohler 47 112 04-S

SPACER

Note: Use with retainer spring 232525-S

$7.99

$

Usually ships in 2-5 days

0

9

Kohler 232525-S

SPRING - DISCONTINUED

Note: Use with spacer 47 112 04-S

$

$

Not available

10

Kohler 41 089 06-S

SPRING

$29.99

$

Usually ships in 2-5 days

0

11

Kohler 231689-S

BRAKE

$

$

Not available

12

Kohler 231695-S

DOGS - DISCONTINUED

$

$

Not available

13

Kohler 231692-S

WASHER

$6.49

$

Usually ships in 2-5 days

0

14

Kohler 231697-S

PULLEY

$104.99

$

Usually ships in 2-5 days

0

15

Kohler 234452

HANDLE - USE 25 166 01
(Superseded to 25 166 01)

$15.99

$

In Stock, Qty 10

0

16

Kohler 231686-S

CORD

$31.99

$

Usually ships in 2-5 days

0

17

Kohler 231685-S

SHEAVE

$28.99

$

Usually ships in 2-5 days

0

18

Kohler 231683-S

SCREW

$6.49

$

In Stock, only 1 left!

0

19

Kohler 231705-S

SPRING

$

$

Not available

20

Kohler 235696-S

HOUSING - DISCONTINUED

$

$

Not available
