M12-471592 - Kohler Magnum Engine, Made for American Inc., 12hp, 9kW Flywheel 03050049294 Parts Diagram

Magnum Engine, Made for American Inc., 12hp, 9kW

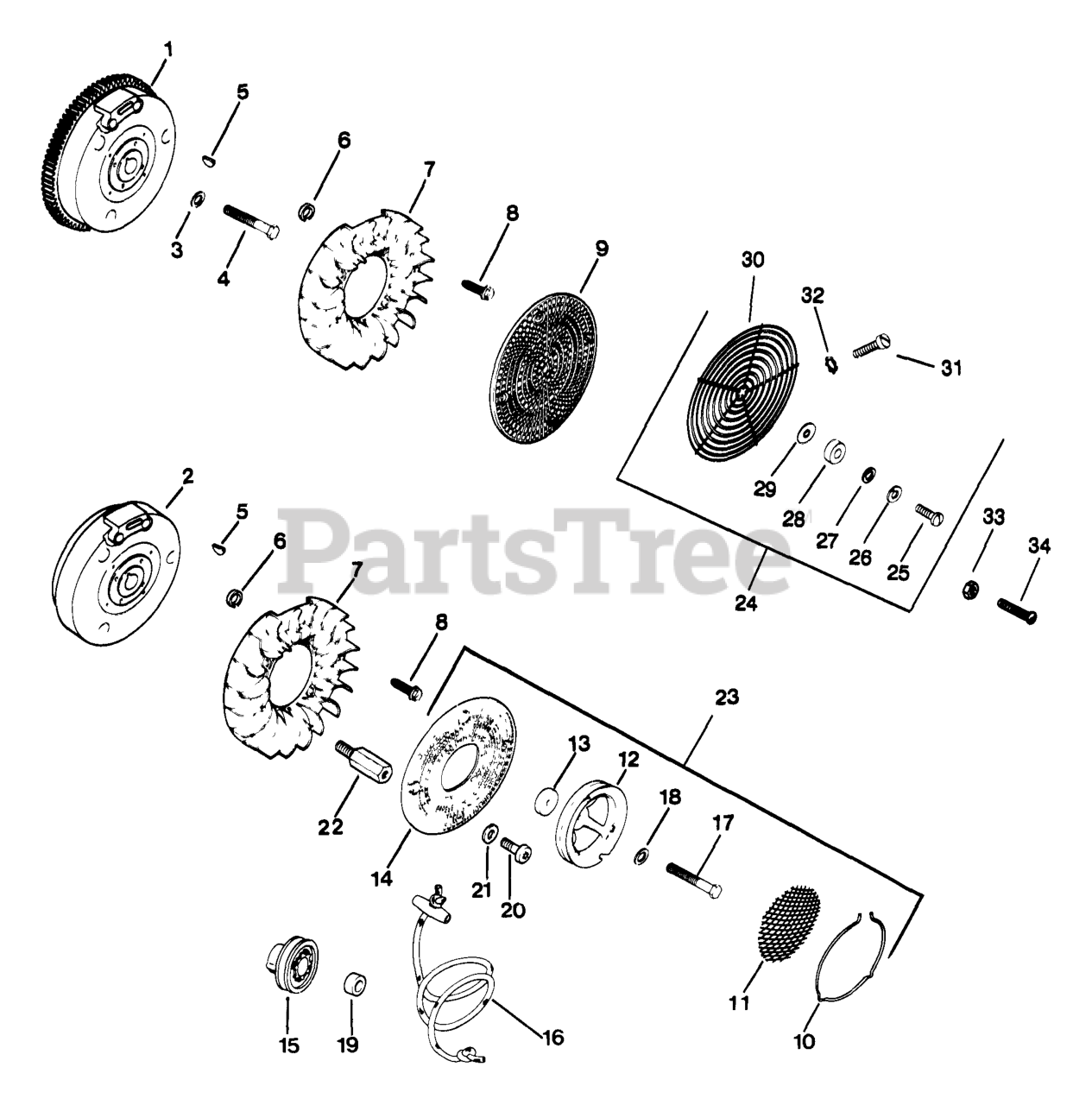

Flywheel 03050049294 Parts Diagram

  • Title

1

Kohler 47 025 53-S

FLYWHEEL - DISCONTINUED

$

$

Not available

3

Kohler 52 468 15-S

WASHER (KM)-USE 12 468 03-S
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

4

Kohler 25 086 24-S

SCREW, MACH 3/8-24X1-1/4"

$3.49

$

Usually ships in 2-5 days

0

5

Kohler X-46-3-S

KEY, 3/16" X 1"

$3.49

$

Usually ships in 2-5 days

0

6

Kohler 25 112 04-S

SPACER

$4.99

$

Usually ships in 2-5 days

0

7

Kohler 25 157 01-S

FAN

$

$

Not available

8

Kohler 25 086 21-S

SCREW, WSH HD 1/4-20X5/8" - DISCONTINUED

$

$

Not available

9

Kohler 25 162 01-S

SCREEN, GRASS

$22.99

$

In Stock, only 2 left!

0

24

Kohler 47 755 37-S

KIT, GUARD - DISCONTINUED

Note: Includes 25-32

$

$

Not available

25

Kohler X-50-12-S

SCREW, SLT PAN HD 10-24X1" USE 25 086 65-S
(Superseded to 25 086 65-S)

$

$

Not available

26

Kohler X-19-1-S

WASHER, SPRING LOCK #10

$3.99

$

Usually ships in 2-5 days

0

27

Kohler 25 468 03-S

WASHER

$3.49

$

Usually ships in 2-5 days

0

28

Kohler 25 112 08-S

SPACER

$3.49

$

Usually ships in 2-5 days

0

29

Kohler 220074-S

DIAPHRAGM-DISCONTINUED

$

$

Not available

30

Kohler 47 314 01-S

GUARD

$128.99

$

Usually ships in 2-5 days

0

31

Kohler 25 086 36-S

SCREW, POZ FLS TAP #10-16X3/4" - DISCONTINUED

$

$

Not available

32

Kohler X-22-22-S

WASHER, EXT TOOTH LOCK #10

$3.99

$

Usually ships in 2-5 days

0

33

Kohler X-50-7-S

SCREW, SLT PAN HD 10-24X1" USE 25 086 65-S
(Superseded to 25 086 65-S)

$

$

Not available

34

Kohler X-101-9-S

NUT USE 25 100 11-S
(Superseded to 25 100 11-S)

$2.49

$

Usually ships in 2-5 days

0
