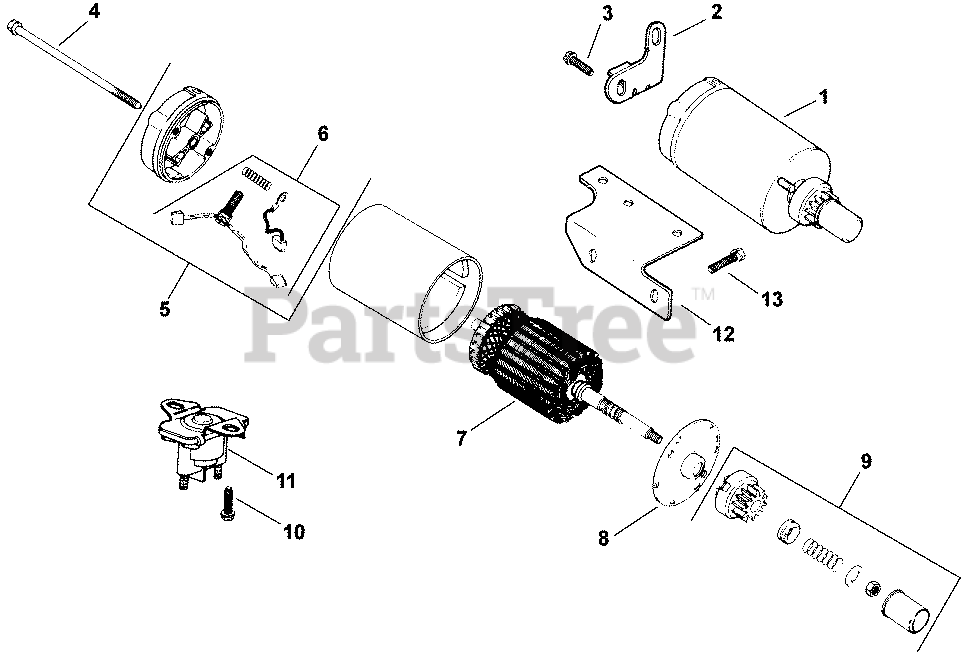

M10-461545 - Kohler Magnum Engine, Made for Wheel Horse, 10hp, 7.5kW Electric Start 11-10-78 Created 4/3/2006 Parts Diagram

Magnum Engine, Made for Wheel Horse, 10hp, 7.5kW

Electric Start 11-10-78 Created 4/3/2006 Parts Diagram

  • Title

1

Kohler 41 098 06-S

ELECTRIC STARTER-BENDIX DRIVE

Note: (includes 4-9)

$359.99

$

Usually ships in 2-5 days

0

2

Kohler 45 126 17-S

BRACKET-(#DSC)

$

$

Not available

3

Kohler 25 086 100-S

SCREW, WSH HD TAP 1/4-20X3/4"

$3.49

$

Usually ships in 2-5 days

0

4

Kohler 41 086 19-S

BOLT, STARTER 1/4-20X5-1/16"-(#DSC)

$

$

Not available

5

Kohler 41 227 05-S

CAP ASSY, COMMUTATOR END - DISCONTINUED

$

$

Not available

6

Kohler 82 755 28-S

KIT, BRUSH & SPRING - DISCONTINUED

$

$

Not available

7

Kohler 45 170 03-S

ARMATURE ASSY - DISCONTINUED

$

$

Not available

8

Kohler 41 081 05-S

HOUSING, DRIVE END CAP

$124.99

$

Usually ships in 2-5 days

0

9

Kohler 41 755 33-S

KIT, DRIVE

$239.99

$

Usually ships in 2-5 days

0

10

Kohler 25 086 106-S

SCREW, WSH HD TAP 1/4-20X7/16" - DISCONTINUED

$2.49

$

In Stock, only 1 left!

0

11

Kohler 25 435 02-S

SOLENOID - WATERPROOF (KM)-USE 25 435 08
(Superseded to 25 435 08-S)

$76.99

$

In Stock, only 2 left!

0

12

Kohler 47 126 29-S

BRACKET, SOLENOID

$41.99

$

Usually ships in 2-5 days

0

13

Kohler X-159-2-S

SCREW, SEMS 3/8-16-X1"

$4.49

$

Usually ships in 2-5 days

0

2545003-S

Kohler 25 450 03-S

TAG, CAUTION

Note: NOT ILLUSTRATED

$1.49

$

Usually ships in 2-5 days

0
