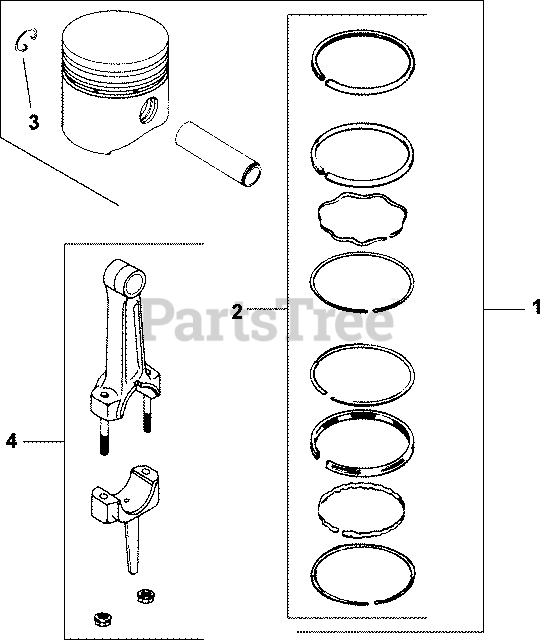

M10-461522 - Kohler Magnum Engine, Made for Hydralada, 10hp, 7.5kW Piston & Rod 22-8-1 Created 4/3/2006 Parts Diagram

Magnum Engine, Made for Hydralada, 10hp, 7.5kW

Piston & Rod 22-8-1 Created 4/3/2006 Parts Diagram

  • Title

1

Kohler 47 874 01-S

KIT, PISTON W/RING SET STD

Note: (includes 2,3)

$

$

Not available

4787402-S

Kohler 47 874 02-S

PISTON W/RING SET .003

$442.99

$

Usually ships in 2-5 days

0

4787403-S

Kohler 47 874 03-S

KIT, PISTON W/RING SET .010-(#DSC)

$358.99

$

Usually ships in 2-5 days

0

4787404-S

Kohler 47 874 04-S

KIT, PISTON W/RING SET .020

$406.99

$

Usually ships in 2-5 days

0

4787405-S

Kohler 47 874 05-S

PISTON W/RING SET .030

$406.99

$

Usually ships in 2-5 days

0

2

Kohler 235287-S

RINGS STD. - DISCONTINUED

$

$

Not available

235288-S

Kohler 235288-S

RINGS .010

$

$

Not available

235289-S

Kohler 235289-S

RINGS .020

$156.99

$

In Stock, only 1 left!

0

235290-S

Kohler 235290-S

RINGS .030

$156.99

$

Usually ships in 2-5 days

0

3

Kohler 47 018 01-S

RETAINER

$6.49

$

Usually ships in 2-5 days

0

4

Kohler 47 067 13-S

ROD STD. - DISCONTINUED

$111.99

$

In Stock, only 1 left!

0

4706714-S

Kohler 47 067 14-S

ROD .010 (KM) - DISCONTINUED

$

$

Not available
