M10-461522 - Kohler Magnum Engine, Made for Hydralada, 10hp, 7.5kW Ignition Created 4/3/2006 Parts Diagram

Magnum Engine, Made for Hydralada, 10hp, 7.5kW

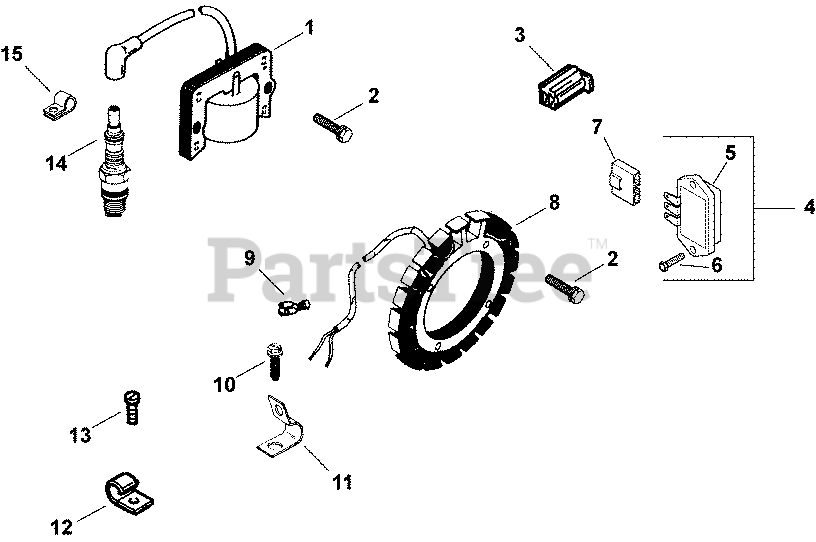

Ignition Created 4/3/2006 Parts Diagram

  • Title

1

Kohler 47 584 03-S

MODULE, IGNITION

$187.99

$

In Stock, only 1 left!

0

2

Kohler 25 086 97-S

SCREW, WSH HD TAP #10-24X3/4"

$3.49

$

Usually ships in 2-5 days

0

3

Kohler 41 155 03-S

CONNECTOR

$4.99

$

Usually ships in 2-5 days

0

4

Kohler 25 755 03-S

KIT, REGULATOR/RECTIFIER

Note: (includes 5,6) (Replaces 41 403 05-S)

$125.99

$

Usually ships in 2-5 days

0

5

Kohler 41 403 09-S

REG/RECT-15 AMP (KM)-USE 41 403 10-S
(Superseded to 41 403 10-S)

$

$

Not available

6

Kohler X-132-5-S

SCREW, SEMS 1/4-20X5/8" USE 25 086 539-S
(Superseded to 25 086 539-S)

$3.49

$

In Stock, only 1 left!

0

7

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$7.99

$

In Stock, only 1 left!

0

8

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

Note: (includes 2,9)

$149.99

$

In Stock, Qty 16

0

9

Kohler 25 452 01-S

TERMINAL

$5.49

$

Usually ships in 2-5 days

0

10

Kohler 25 086 99-S

DISCONTINUED - SCREW,WASHER HD TAP #8-32X3/8"

$2.49

$

Usually ships in 2-5 days

0

11

Kohler X-728-1-S

CLIP

$2.49

$

Usually ships in 2-5 days

0

12

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

13

Kohler X-132-6-S

SCREW, SEMS 1/4-20-1/2"

$3.49

$

Usually ships in 2-5 days

0

14

Kohler 25 132 10-S

PLUG, SPARK

$20.99

$

Usually ships in 2-5 days

0

15

Kohler 210281-S

CLIP

$7.49

$

Usually ships in 2-5 days

0

4751836-S

Kohler 47 518 36-S

LEAD

Note: NOT ILLUSTRATED

$23.99

$

Usually ships in 2-5 days

0

4751843-S

Kohler 47 518 43-S

LEAD

Note: NOT ILLUSTRATED

$120.99

$

Usually ships in 2-5 days

0
