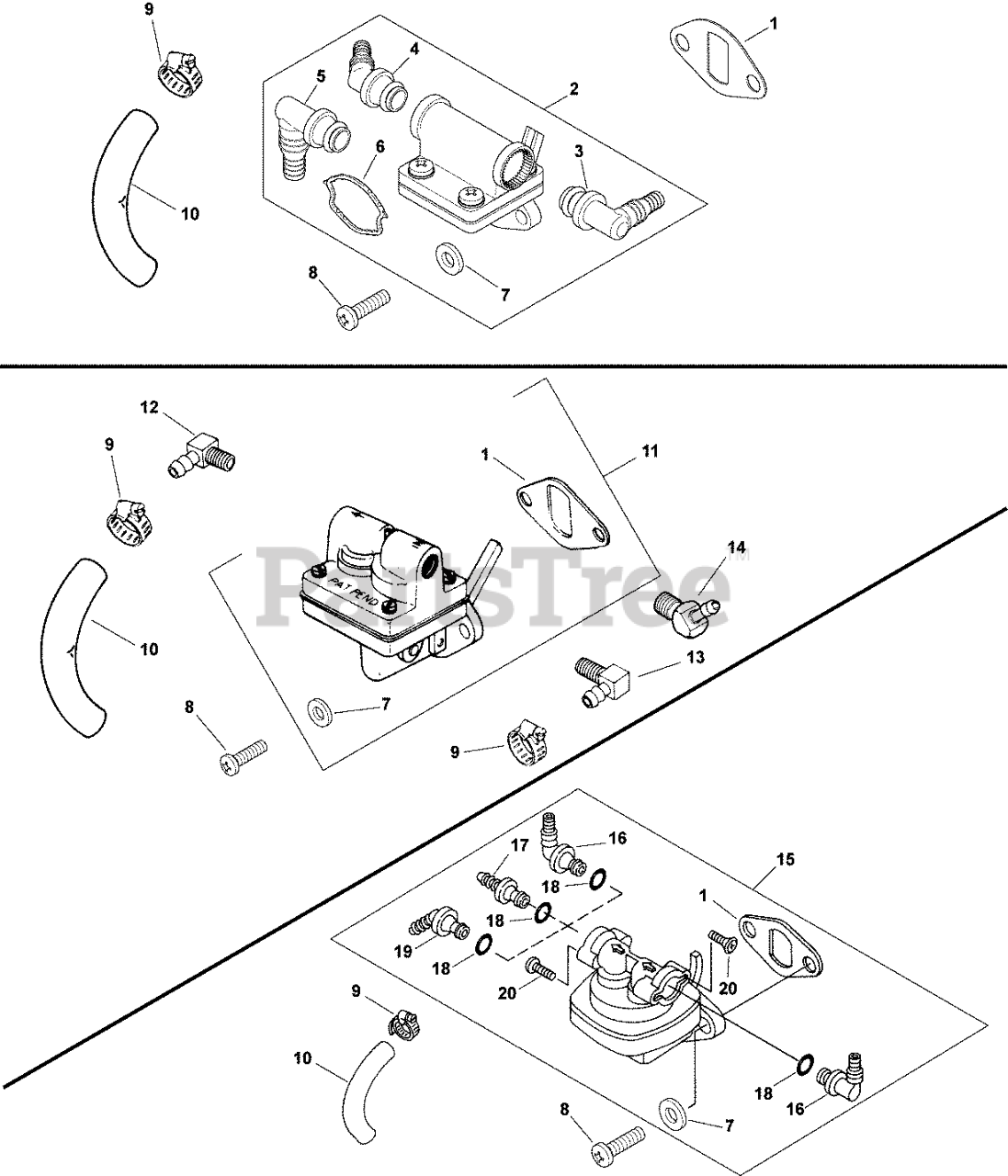

M10-461522 - Kohler Magnum Engine, Made for Hydralada, 10hp, 7.5kW Fuel Pump 14-8-69 Created 4/3/2006 Parts Diagram

Magnum Engine, Made for Hydralada, 10hp, 7.5kW

Fuel Pump 14-8-69 Created 4/3/2006 Parts Diagram

  • Title

1

Kohler 25 041 10-S

GASKET, FUEL PUMP

$3.49

$

Usually ships in 2-5 days

0

2

Kohler 47 559 11-S

KIT, FUEL PUMP

Note: (includes 3-7)

$272.99

$

In Stock, only 1 left!

0

3

Kohler 25 294 12-S

KIT, 3/16" FITTING, (90 DEG.)

$6.49

$

Usually ships in 2-5 days

0

4

Kohler 25 294 08-S

KIT, 3/16" FITTING, (45 DEG.)

$6.49

$

Usually ships in 2-5 days

0

5

Kohler 25 294 11-S

KIT, 90 DEG. FITTING

$11.99

$

In Stock, only 2 left!

0

6

Kohler 25 153 04-S

O-RING, FUEL PUMP

$2.99

$

In Stock, only 2 left!

0

7

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

8

Kohler X-174-2-S

SCREW, SEMS 1/4-20X3/4"

$3.49

$

In Stock, only 1 left!

0

9

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

10

Kohler 25 353 08-S

LINE, FLEXIBLE FUEL - DISCONTINUED

$

$

Not available

11

Kohler NOT AVAILABLE

FUEL PUMP

Note: (FOR REPLACMENT USE 47 559 11-S)

$

$

Not available

12

Kohler X-391-11-S

CONNECTOR, 90 DEG. - DISCONTINUED

$

$

Not available

13

Kohler 25 155 02-S

CONNECTOR, 90 DEG. HOSE

$14.99

$

In Stock, only 1 left!

0

14

Kohler 47 155 12-S

CONNECTOR, 45 DEG.

$15.99

$

Usually ships in 2-5 days

0

15

Kohler NOT AVAILABLE

FUEL PUMP

Note: (FOR REPLACMENT USE 47 559 11-S)

$

$

Not available

16

Kohler 25 294 01-S

CONNECTOR, 90 DEG. W/O-RING-DISC.

$

$

Not available

17

Kohler 25 294 03-S

CONNECTOR,STRAIGHT W/O-RING-DISC.

$

$

Not available

18

Kohler 25 153 01-S

O RING FITTING - DISCONTINUED

$

$

Not available

19

Kohler 25 294 02-S

CONNECTOR, 45 DEG. W/O-RING-DISC.

$

$

Not available

20

Kohler 25 086 35-S

SCREW, LBD SCKT PAN - DISC.

$1.49

$

Usually ships in 2-5 days

0
