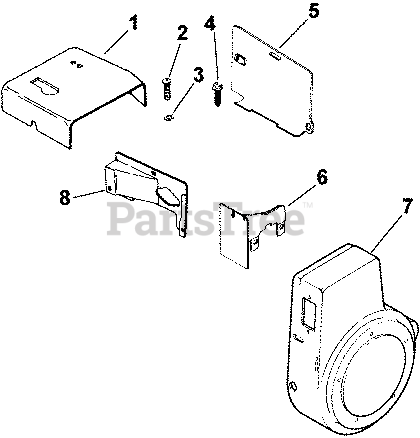

M10-461522 - Kohler Magnum Engine, Made for Hydralada, 10hp, 7.5kW Baffles & Shroud 2-8-181 Created 4/3/2006 Parts Diagram

Magnum Engine, Made for Hydralada, 10hp, 7.5kW

Baffles & Shroud 2-8-181 Created 4/3/2006 Parts Diagram

  • Title
1

Kohler 47 063 09-S

BAFFLE, HEAT - DISCONTINUED

$

$

Not available

2

Kohler 47 086 08-S

SCREW, POZ TRS HD 1/4-20X5/8" - DISCONTINUED

$4.49

$

In Stock, only 1 left!

0

3

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

$3.49

$

In Stock, only 3 left!

0

4

Kohler 52 086 11-S

SCREW, WSH HD TAP 1/4-20-5/8" - DISCONTINUED

$

$

Not available

5

Kohler 47 063 10-S

BAFFLE, CYLINDER

$29.99

$

Usually ships in 2-5 days

0

6

Kohler 47 063 07-S

BAFFLE, INNER - DISCONTINUED

$

$

Not available

7

Kohler 47 027 42-S

KIT, BLOWER HOUSING

$237.99

$

Usually ships in 2-5 days

0

8

Kohler 47 063 06-S

BAFFLE, SIDE AIR - DISCONTINUED

$

$

Not available
