M10-461520 - Kohler Magnum Engine, Made for Campbell Hausfeld, 10hp, 7.5kW Fuel Tank REV 3/15/2006 to show group description. Parts Diagram

Magnum Engine, Made for Campbell Hausfeld, 10hp, 7.5kW

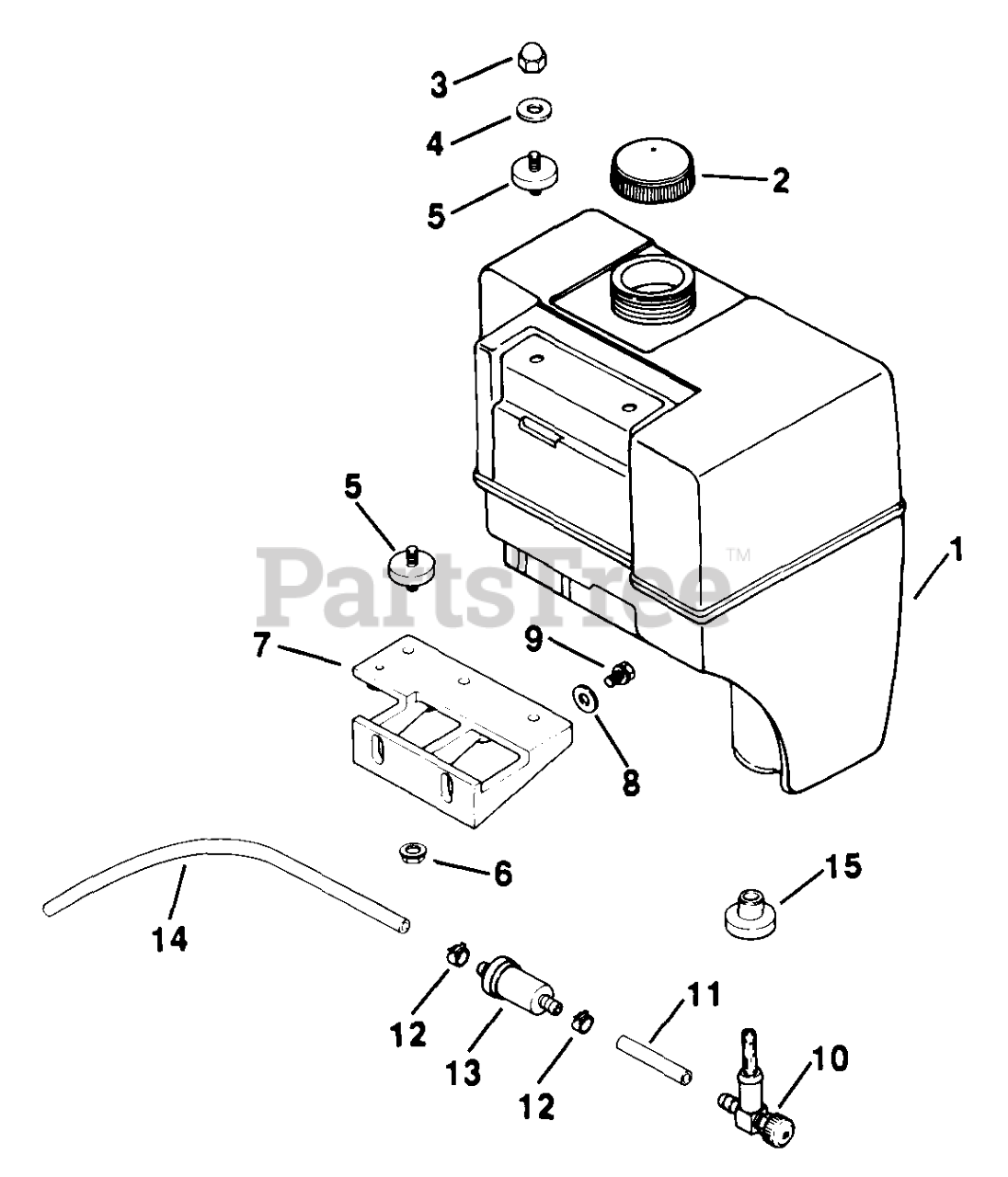

Fuel Tank REV 3/15/2006 to show group description. Parts Diagram

  • Title

1

Kohler 47 065 04

KIT - USE 47 755 39
(Superseded to 47 755 39)

Note: 1/2" high filler neck

$380.99

$

In Stock, only 1 left!

0

1

Kohler 47 755 39-S

KIT, FUEL TANK

Note: Includes cap 25 173 03-S 3/4" high filler neck

$380.99

$

In Stock, only 1 left!

0

2

Kohler 25 173 01

CAP - USE 25 173 02
(Superseded to 25 173 02)

Note: Use on tank with 1/2" high filler neck. Replaced by 25 173 02-S

$

$

Not available

3

Kohler 25 100 04-S

NUT - (#DSC)

$

$

Not available

4

Kohler X-25-78-S

WASHER, PLAIN 1/4"

$3.49

$

In Stock, only 2 left!

0

5

Kohler 47 366 01

KIT - USE 47 760 01
(Superseded to 47 760 01)

$19.99

$

Usually ships in 2-5 days

0

6

Kohler X-799-1-S

PALNUT, 1/4-20

$3.99

$

Usually ships in 2-5 days

0

7

Kohler 47 126 30-S

BRACKET

$91.99

$

Usually ships in 2-5 days

0

8

Kohler X-25-28-S

WASHER

$3.99

$

Usually ships in 2-5 days

0

9

Kohler X-159-3-S

SCREW, SEMS 3/8-16X1-1/4" - DISCONTINUED

$

$

Not available

10

Kohler 25 462 01-S

VALVE

Note: Replaced by 25 462 03-S

$40.99

$

In Stock, only 2 left!

0

11

Kohler 41 353 10-S

LINE - DISCONTINUED

$

$

Not available

13

Kohler 41 050 02

FILTER - USE 41 050 03
(Superseded to 41 050 03)

Note: Replaced by 41 050 03

$11.99

$

Usually ships in 2-5 days

0

14

Kohler 47 353 02-S

LINE

$13.99

$

Usually ships in 2-5 days

0

15

Kohler 25 313 01-S

BUSHING, FUEL TANK

$5.99

$

In Stock, only 3 left!

0
