M10-461520 - Kohler Magnum Engine, Made for Campbell Hausfeld, 10hp, 7.5kW Camshaft & Valves 4-10-26 REV 3/15/2006 to show group description. Parts Diagram

Magnum Engine, Made for Campbell Hausfeld, 10hp, 7.5kW

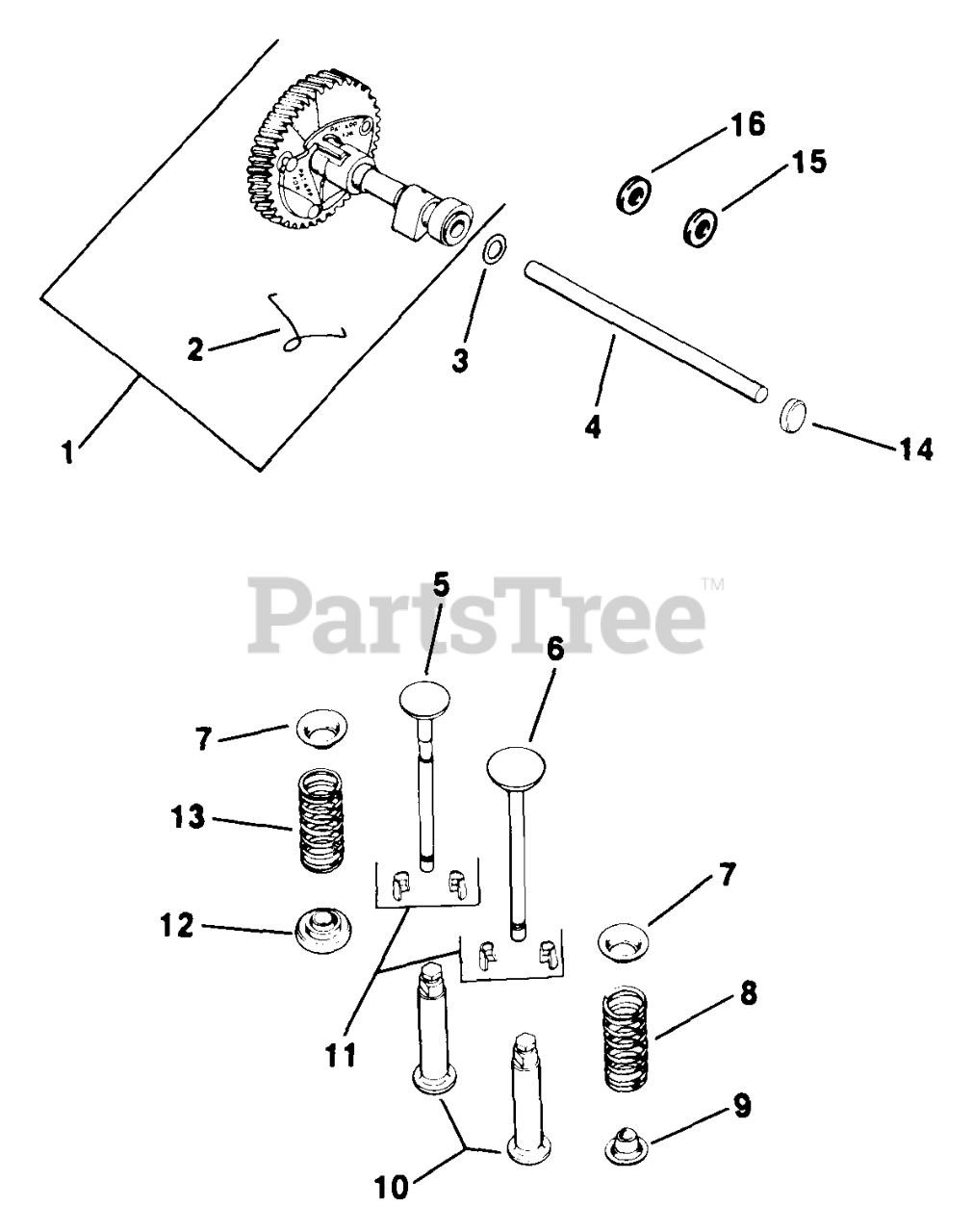

Camshaft & Valves 4-10-26 REV 3/15/2006 to show group description. Parts Diagram

  • Title

1

Kohler 47 010 11-S

CAMSHAFT ASSY - DISCONTINUED

Note: Includes 2

$

$

Not available

2

Kohler 47 089 01-S

SPRING, ACTUATING-DISCONTINUED

$

$

Not available

3

Kohler 275066-S

SPACER (.005")

$8.49

$

Usually ships in 2-5 days

0

3

Kohler 275067-S

SPACER (.010")

$8.49

$

In Stock, only 2 left!

0

4

Kohler 47 380 09-S

PIN, CAMSHAFT - DISCONTINUED

$

$

Not available

5

Kohler 235838-S

VALVE, EXHAUST

$113.99

$

Usually ships in 2-5 days

0

6

Kohler 235008-S

VALVE, INTAKE - DISCONTINUED

$

$

Not available

7

Kohler 235011-S

RETAINER, SPRING

$6.49

$

In Stock, only 2 left!

0

8

Kohler 235168-S

SPRING, INTAKE VALVE - DISCONTINUED

$

$

Not available

9

Kohler 230011-S

RETAINER, VALVE SPRING

$9.49

$

In Stock, Qty 6

0

10

Kohler D-235327-S

TAPPET

$

$

Not available

11

Kohler 41 755 10-S

KIT, RETAINER

$12.99

$

In Stock, Qty 5

0

12

Kohler 230020

ROTATOR - USE 52 413 01
(Superseded to 52 413 01)

Note: Replaced by 52 413 01-S

$35.99

$

Usually ships in 2-5 days

0

12

Kohler 52 413 01-S

ROTATOR

$35.99

$

Usually ships in 2-5 days

0

13

Kohler 235010-S

SPRING, EXHAUST VALVE-(#DSC)

$

$

Not available

14

Kohler X-702-3-S

PLUG, CUP 1/2" USE 25 139 50-S
(Superseded to 25 139 50-S)

$3.49

$

Usually ships in 2-5 days

0

15

Kohler X-25-91-S

WASHER, FLAT 7/32" - DISCONTINUED

$

$

Not available

16

Kohler X-25-92-S

WASHER, FLAT 3/16"

$2.49

$

In Stock, only 2 left!

0
