M10-461502 - Kohler Magnum Engine, Basic Version, 10hp, 7.5kW Baffles & Shroud 2-10-176 (TP-2097) Parts Diagram

Magnum Engine, Basic Version, 10hp, 7.5kW

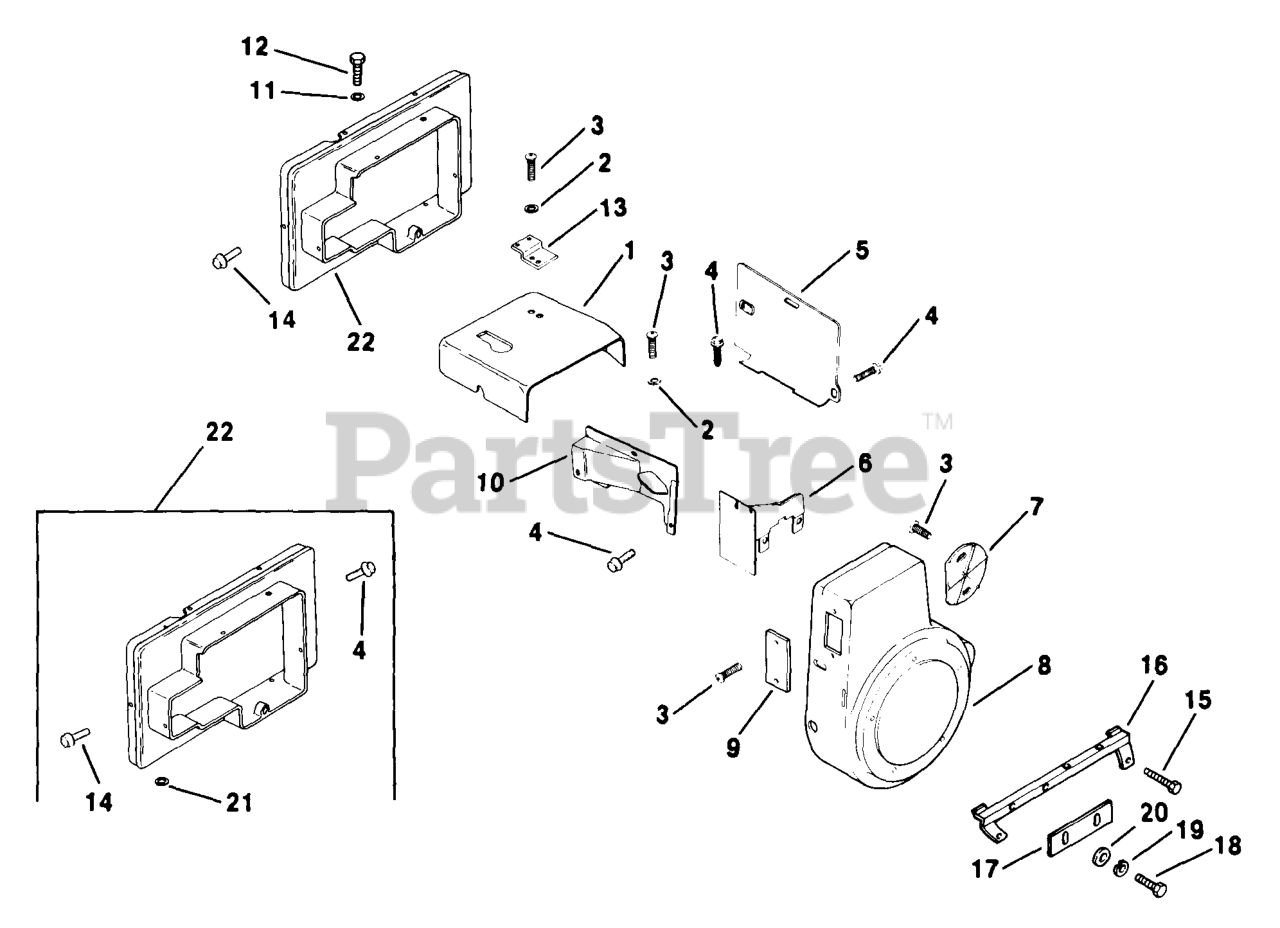

Baffles & Shroud 2-10-176 (TP-2097) Parts Diagram

  • Title

$

$

Not available

2

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

$3.49

$

Usually ships in 2-5 days

0

3

Kohler 47 086 08-S

SCREW, POZ TRS HD 1/4-20X5/8" - DISCONTINUED

$4.49

$

Usually ships in 2-5 days

0

3

Kohler 47 086 08-S

SCREW, POZ TRS HD 1/4-20X5/8" - DISCONTINUED

$4.49

$

Usually ships in 2-5 days

0

4

Kohler 52 086 11-S

SCREW, WSH HD TAP 1/4-20-5/8" - DISCONTINUED

$

$

Not available

5

Kohler 47 063 10-S

BAFFLE, CYLINDER

$29.99

$

Usually ships in 2-5 days

0

6

Kohler 47 063 07-S

BAFFLE, INNER - DISCONTINUED

$

$

Not available

8

Kohler 47 027 38

HOUSING - USE 47 027 44
(Superseded to 47 027 44-S)

Note: w/Retractable Starter holes - front

$

$

Not available

10

Kohler 47 063 06-S

BAFFLE, SIDE AIR - DISCONTINUED

$

$

Not available
