M1 - Simplicity Two-Wheeled Tractor, 3hp Cultivator Group (3738I04) Parts Diagram

Two-Wheeled Tractor, 3hp

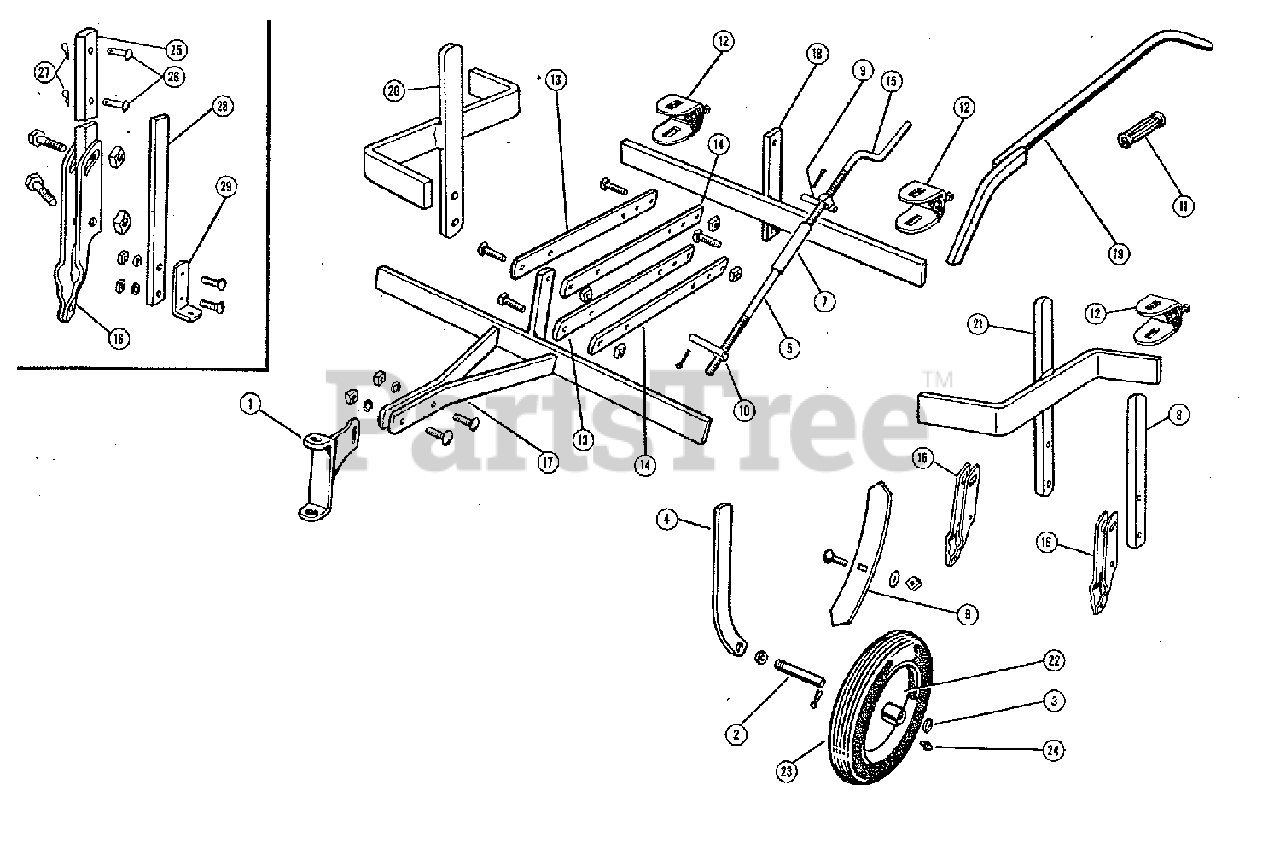

Cultivator Group (3738I04) Parts Diagram

  • Title

1

Simplicity SSA71

END, Draw Bar

$

$

Not available

2

Simplicity SSA54A

WHEEL SPINDLE, Guage

$

$

Not available

3

Simplicity SSA55

WHEEL WASHER, Guage

$

$

Not available

4

Simplicity SSA-A3

WHEEL STANDARD, Guage

$

$

Not available

5

Simplicity SSA-A9

MEMBER, Lower Screw

$

$

Not available

6

Simplicity SSA-A14A

CULTIVATOR STEEL, w/Bolt

$

$

Not available

7

Simplicity SSA-A17

COUPLING, Adjustment

$

$

Not available

8

Simplicity SSA-A18

TOOL STANDARD, Short

$

$

Not available

9

Simplicity SSA-A21

NUT, Upper Adjustment

$

$

Not available

10

Simplicity SSA-A22

NUT, Lower Adjustment

$

$

Not available

11

Simplicity DA-76

HANDLE, Rubber Grip

$

$

Not available

12

Simplicity S2A-A5C

CLAMP, Shank

$

$

Not available

13

Simplicity S2A-B2A

BAR, Parallel (Right), Unthreaded

$

$

Not available

14

Simplicity S2A-B3A

BAR, Parallel (Left), Threaded

$

$

Not available

15

Simplicity S2A-BB

MEMBER, Upper Screw

$

$

Not available

16

Simplicity S2A-AX3

TOOL HOLDER ASSEMBLY

$

$

Not available

17

Simplicity S2A-BX1A

DRAW BAR ASSEMBLY

$

$

Not available

18

Simplicity S2A-BX2A

TOOL BAR ASSEMBLY

$

$

Not available

19

Simplicity S2A-BX4A

TOOL HANDLE ASSEMBLY

$

$

Not available

20

Simplicity S2A-CX3

FRAME ASSEMBLY, R.H. Tool

$

$

Not available

21

Simplicity S2A-CX4

FRAME ASSEMBLY, L.H. Tool

$

$

Not available

22

Simplicity S1C4B

WHEEL, Complete (Less Tire)

$

$

Not available

23

TIRES, Juvenile, 10 x 2

$

$

Not available

24

FITTING, Grease, #1641

$

$

Not available

25

Simplicity SSA-B13

STANDARD

$

$

Not available

26

Simplicity SSA-A15

PIN

$

$

Not available

27

Simplicity S1-A45A

CLIP, Spring

$

$

Not available

28

Simplicity SSA25

STANDARD, Tool

$

$

Not available

29

Simplicity SSA105

HOLDER, Tool

$

$

Not available
