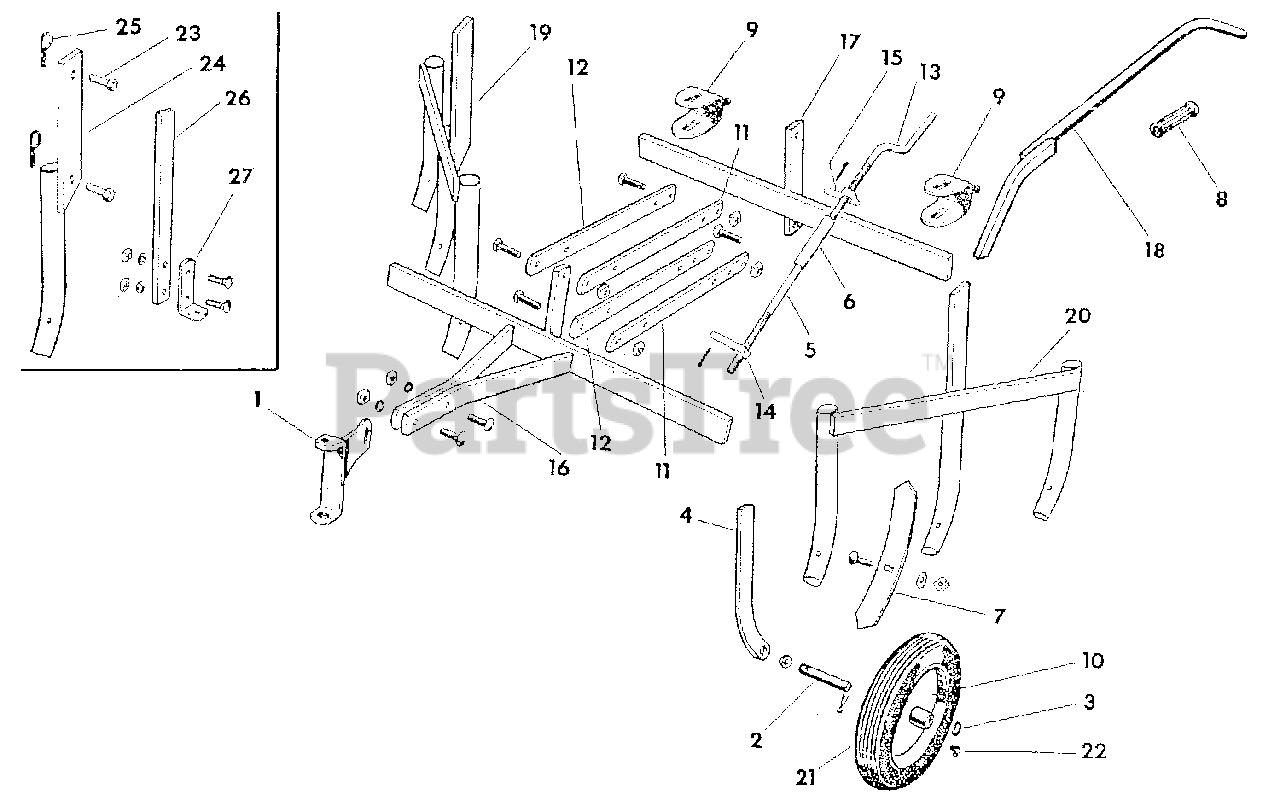

M - Simplicity Two-Wheeled Tractor, 3hp Cultivator Group (3739I04) Parts Diagram

Two-Wheeled Tractor, 3hp

Cultivator Group (3739I04) Parts Diagram

  • Title

1

Simplicity SSA7

END, Draw Bar

$

$

Not available

2

Simplicity SSA54A

WHEEL SPINDLE, Guage

$

$

Not available

3

Simplicity SSA55

WHEEL WASHER, Guage

$

$

Not available

4

Simplicity SSA-A3

WHEEL STANDARD, Guage

$

$

Not available

5

Simplicity SSA-A9

SCREW, Adjustment

$

$

Not available

6

Simplicity SSA-A10

COUPLING, Adjustment

$

$

Not available

7

Simplicity SSA-A14

CULTIVATOR, Steel w/Bolt

$

$

Not available

8

Simplicity S1A88

HANDLE, Rubber Grip

$

$

Not available

9

Simplicity S2A-A5B

SHANK CLAMP, Complete w/Nut

$

$

Not available

10

Simplicity S1C4A

WHEEL, Complete (Less Tire)

$

$

Not available

11

Simplicity SSA-2B

BAR, Parallel, Right

$

$

Not available

12

Simplicity SSA-B3

BAR, Parallel, Left

$

$

Not available

13

Simplicity SSA-B8

MEMBER, Upper Screw

$

$

Not available

14

Simplicity SSA-AX1

NUT, Adjusting, R.H.

$

$

Not available

15

Simplicity SSA-AX2

NUT, Adjusting, L.H.

$

$

Not available

16

Simplicity SSA-BX1

DRAW BAR ASSEMBLY

$

$

Not available

17

Simplicity SSA-BS2

TOOL BAR ASSEMBLY

$

$

Not available

18

Simplicity SSA-BX4

TOOL HANDLE ASSEMBLY

$

$

Not available

19

Simplicity SSA-CX1B

HOLDER FRAME, Right Tool

$

$

Not available

20

Simplicity SSA-CX2B

HOLDER FRAME, Left Tool

$

$

Not available

21

TIRES, Juvenile, 10 x 2

$

$

Not available

22

FITTING, Grease, #1637

$

$

Not available

23

Simplicity SSA-A15

PIN, For Extra Standard

$

$

Not available

24

Simplicity SSA-BX3

STANDARD ASSEMBLY, Extra Tool

$

$

Not available

25

Simplicity S1-A45A

CLIP, Spring

$

$

Not available

26

Simplicity SSA25

TOOL STANDARD

$

$

Not available

27

Simplicity SSA105

TOOL HOLDER

$

$

Not available
