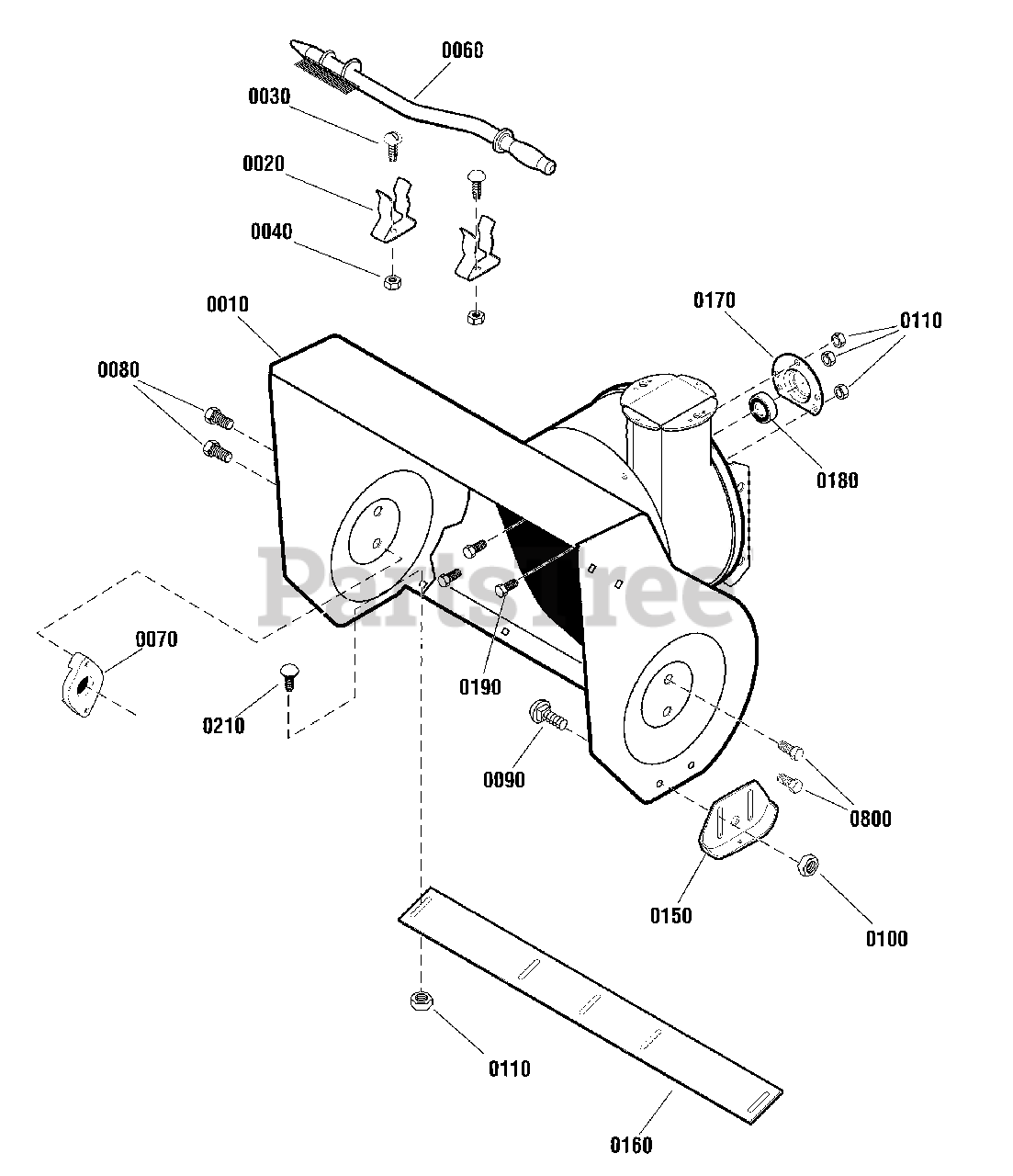

M 924E (1696172-01) - Snapper 24" Snow Thrower, 9hp Auger Housing Group Parts Diagram

24" Snow Thrower, 9hp

Auger Housing Group Parts Diagram

  • Title

0010

Snapper 1687756YP

AUGER HOUSING ASSEMBLY, 24"

$341.99

$

Usually ships in 2-12 days

0

0020

Snapper 1736620YP

CLIP, Retainer

$6.49

$

In Stock, only 2 left!

0

0030

Snapper 1960569SM

SCREW, Truss Head Torx, #10-24 x 3/8
(Superseded to 706144)

$4.49

$

Usually ships in 2-12 days

0

0040

Snapper 703412

NUT, Nylock, #10-24

$4.49

$

In Stock, only 2 left!

0

0060

Snapper 1736094YP

BRUSH, Cleanout

$34.99

$

In Stock, only 4 left!

0

0070

Snapper 53757MA

BEARING, Auger Shaft

$9.99

$

In Stock, only 2 left!

0

0080

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0090

Snapper 703448

BOLT, Carriage, 3/8-16 x 3/4, GR5

$4.49

$

In Stock, Qty 20+

0

0100

Snapper 703333

NUT, 3/8-16, Flanged Lock, GR5

$4.99

$

In Stock, Qty 20+

0

0110

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0150

Snapper 1727854BMYP

SHOE, Skid, Reversible

$16.99

$

In Stock, Qty 20+

0

0160

Snapper 1738335AYP

BLADE, Scraper, 24"

$

$

Not available

0170

Snapper 1756809YP

RETAINER, Ball Bearing

$10.99

$

In Stock, only 4 left!

0

0180

Snapper 1705897SM

BEARING, Ball

$8.49

$

In Stock, Qty 20+

0

0190

Snapper 761936MA

BOLT, Hex, 5/16-18 x 5/8

$107.99

$

Usually ships in 2-12 days

0

0210

Snapper 703447

BOLT, Carriage, 3/8-16 x 5/8, GR5

$4.49

$

In Stock, Qty 20+
