M 924E (1695678) - Snapper 24" Snow Thrower, 9hp (2009) Wheel & Tire Group - 2 Pin Parts Diagram

24" Snow Thrower, 9hp

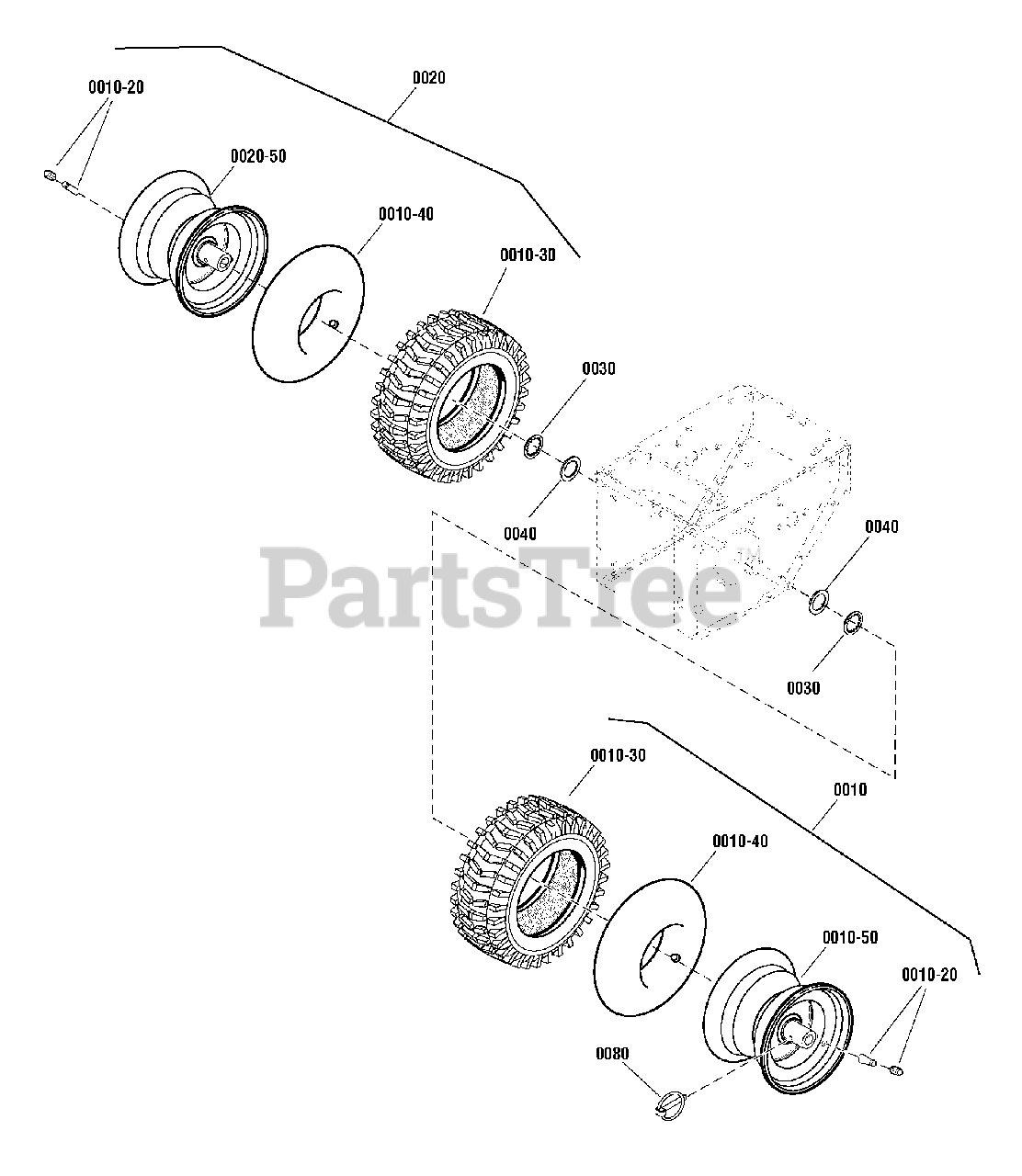

Wheel & Tire Group - 2 Pin Parts Diagram

  • Title

0010

Snapper 1738357

WHEEL ASSEMBLY, K467, 15 x 5-6 2P, L.H.
(Superseded to 1738357YP)

Note: (Includes Ref. Nos. 0010-20, 0010-30, 0010-40 & 0010-50)

$142.99

$

Usually ships in 2-12 days

0

0010-20

Snapper 2172353

VALVE STEM & CAP
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

0010-30

Snapper 1739104

TIRE, 15 x 5-6

$

$

Not available

0010-40

Snapper 1664090

TUBE, Tire 15 x 5-6
(Superseded to 1664090SM)

$26.99

$

In Stock, only 3 left!

0

0010-50

RIM, Tire, L.H.

Note: (Not a servicable part. Order complete assembly)

$

$

Not available

0020

Snapper 1738356

WHEEL ASSEMBLY, K467, 15 x 5-6 2P, R.H.
(Superseded to 1738356YP)

Note: (Includes Ref. Nos. 0010-20, 0010-30, 0010-40 & 0020-50)

$145.99

$

Usually ships in 2-12 days

0

0020-50

RIM, Tire, R.H.

Note: (Not a servicable part. Order complete assembly)

$

$

Not available

0080

Snapper 725431

PIN, Klik, 1/4 x 1-3/8
(Superseded to 500016MA)

$15.99

$

In Stock, only 1 left!

0

0090

Snapper 725394

WASHER, Flat, 3/4 ID x 1-1/8 OD
(Superseded to 712120MA)

$4.99

$

In Stock, Qty 20+

0

0100

Snapper 1657528

RING, Retaining
(Superseded to 1657528SM)

$4.49

$

In Stock, Qty 20+

0
