M 924 E (1696234-02) - Simplicity 24" Snow Thrower, 9hp Handles & Controls Group - Remote Parts Diagram

24" Snow Thrower, 9hp

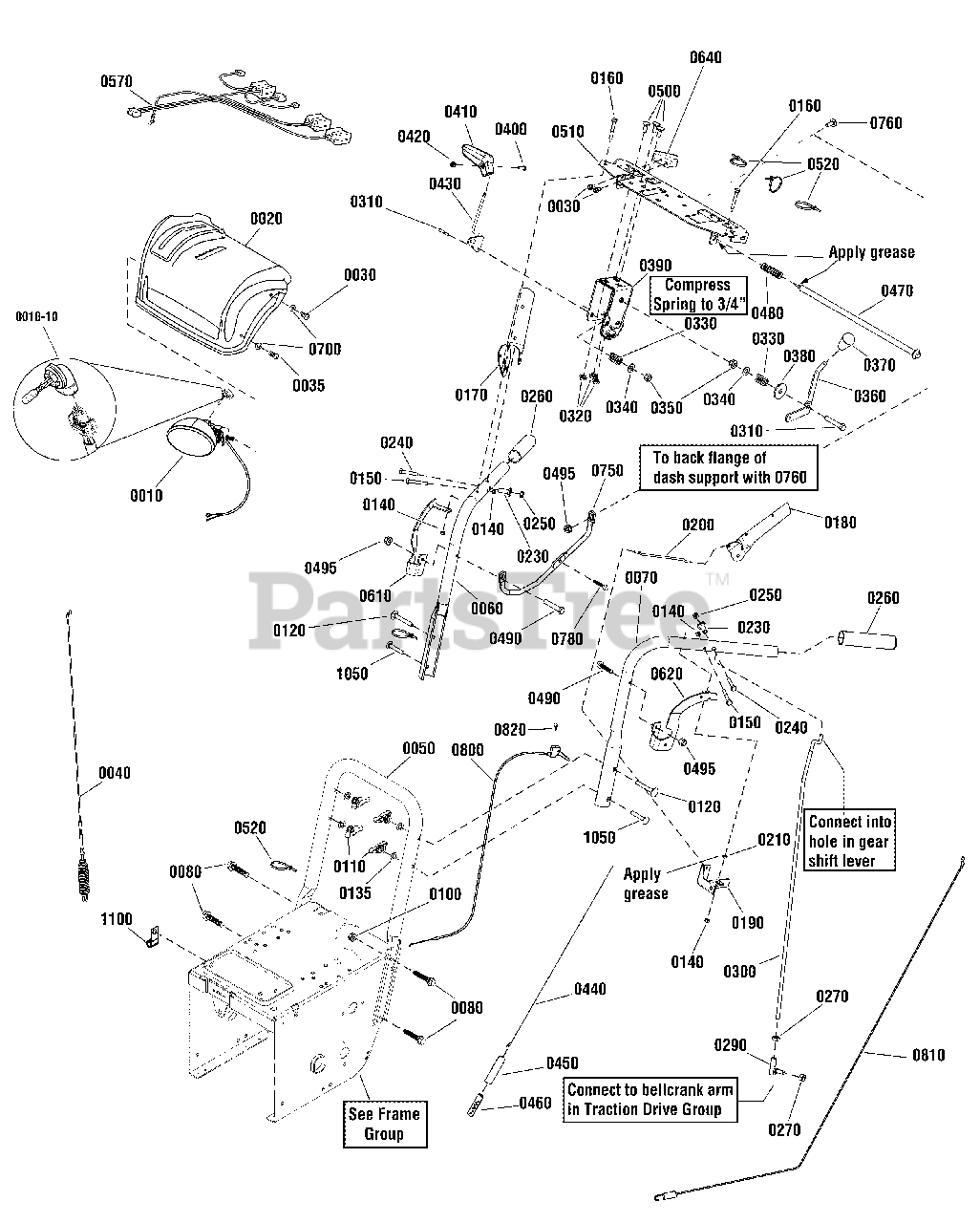

Handles & Controls Group - Remote Parts Diagram

  • Title

0010

Simplicity 1737965YP

HEADLIGHT, Oval
(Superseded to 1688087)

Note: (Includes Ref. No. 0010-10)

$

$

Not available

0010-10

* BULB, Headlight, Halogen, 881-12V 27W

$

$

Not available

0020

Simplicity 1750683CYP

COVER, Panel

$136.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1960556SM

SCREW, Pan Head Torx, 1/4-20 x 3/4

Note: (Qty 5 used on 1696235)

$4.49

$

Usually ships in 2-12 days

0

0035

Simplicity 1960715SM

SCREW, Truss Head Torx, 1/4-20 x 3/4
(Superseded to 770135)

Note: (Used on 1696235)

$3.99

$

In Stock, Qty 15

0

0040

Simplicity 703221

CABLE & SPRING ASSEMBLY

$24.99

$

In Stock, Qty 6

0

0050

Simplicity 1737274AYP

HANDLE, Lower

$107.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1734587ASM

HANDLE, Upper, RH

Note: (Used on 1696234)

$51.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1737531AYP

HANDLE, Upper, RH

Note: (Used on 1696235)

$59.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1734586ASM

HANDLE, Upper, LH

Note: (Used on 1696234)

$55.99

$

In Stock, only 1 left!

0

0070

Simplicity 1737532AYP

HANDLE, Upper, LH

Note: (Used on 1696235)

$53.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1737687YP

BOLT, Carriage, FH, 5/16-18 x 3/4, G5

$6.49

$

Usually ships in 2-12 days

0

0100

Simplicity 703222

NUT, Hex KEPS, 5/16-18

$5.99

$

In Stock, only 2 left!

0

0110

Simplicity 703065

KNOB, Wing, 5/16-18

$6.99

$

In Stock, Qty 20+

0

0120

Simplicity 703168

BOLT, Carriage, Curved Head, 5/16-18 x 2-1/4

$3.99

$

In Stock, only 4 left!

0

0135

Simplicity 7090391SM

WASHER, Internal Lock, 5/16
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

0140

Simplicity 15X145MA

NUT, Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0150

Simplicity 703045

BOLT, Shoulder, Hex Head, 1/4-20 x 1-3/4, G5

$3.49

$

Usually ships in 2-12 days

0

0160

Simplicity 7091003YP

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, G5

Note: (Qty 3 used on 1696235)

$3.49

$

Usually ships in 2-12 days

0

0170

Simplicity 1739783AYP

LEVER, Clutch, RH

$28.99

$

In Stock, only 1 left!

0

0180

Simplicity 1739782AYP

LEVER, Clutch, LH

$

$

Not available

0190

Simplicity 1733505BM

BRACKET, Pivot, Free Hand
(Superseded to 1733505BMYP)

$14.99

$

Usually ships in 2-12 days

0

0200

Simplicity 1736360YP

ROD, Hold Down

$11.99

$

Usually ships in 2-12 days

0

0210

Simplicity 703124

SPACER, 1/4 x .118, G5

$3.99

$

Usually ships in 2-12 days

0

0230

Simplicity 703223

SPACER, Stepped

$4.49

$

Usually ships in 2-12 days

0

0240

Simplicity 1753529YP

SCREW, Hex Washer Head, Shoulder 1/4-20

$3.99

$

Usually ships in 2-12 days

0

0250

Simplicity 703412

NUT, Nylock, #10-24

$4.49

$

In Stock, only 2 left!

0

0260

Simplicity 1726317SM

GRIP

$8.49

$

In Stock, only 1 left!

0

0270

Simplicity 703331

NUT, 5/16-24, GR5

$3.99

$

In Stock, Qty 20+

0

0290

Simplicity 703224

BALL JOINT

$21.99

$

In Stock, only 2 left!

0

0300

Simplicity 1751543YP

ROD, Speed Control, 25.5"
(Superseded to 704085)

Note: (Used on 1696234)

$22.99

$

Usually ships in 2-12 days

0

0300

Simplicity 1737331YP

ROD, Speed Control, 22.4"

Note: (Used on 1696235)

$19.99

$

In Stock, only 1 left!

0

0310

Simplicity 703589

CAPSCREW, Hex Head, 3/8-16 x 2, G5

$4.49

$

In Stock, only 1 left!

0

0320

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.49

$

In Stock, Qty 20+

0

0330

Simplicity 50786MA

SPRING, 3/4"

$5.49

$

Usually ships in 2-12 days

0

0340

Simplicity 1918266SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

0350

Simplicity 1919439SM

NUT, Hex Lock, ESNA, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

0360

Simplicity 1736192YP

LEVER, Deflector Control

$13.99

$

Usually ships in 2-12 days

0

0370

Simplicity 1732470SM

KNOB, 3/8-16

$19.99

$

In Stock, Qty 8

0

0380

Simplicity 703591

WASHER, .406

$5.49

$

In Stock, Qty 20+

0

0390

Simplicity 1737684YP

BRACKET, Controls

$16.99

$

Usually ships in 2-12 days

0

0400

Simplicity 1960589SM

SCREW, Phillips, #10-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0410

Simplicity 1733192SM

KNOB, Speed

$8.49

$

Usually ships in 2-12 days

0

0420

Simplicity 703412

NUT, Nylock, #10-24

$4.49

$

In Stock, only 2 left!

0

0430

Simplicity 703047

LEVER, Speed

$56.99

$

Usually ships in 2-12 days

0

0440

Simplicity 1502113MA

CABLE, Drive

Note: (Used on 1696234)

$22.99

$

In Stock, Qty 20+

0

0450

Simplicity 308146MA

BOOT, Spring End Cover

$6.49

$

In Stock, only 2 left!

0

0460

Simplicity 313441MA

BRACKET, Cable Adjuster

$

$

Not available

0470

Simplicity 1736363YP

ROD & SPRING ASSEMBLY

$33.99

$

Usually ships in 2-12 days

0

0480

Simplicity 2108360SM

SPRING, Compression, 2-1/4"

$5.49

$

In Stock, only 1 left!

0

0490

Simplicity 703054

CAPSCREW, Hex Head, 1/4-20 x 5/8

Note: (Used on 1696234)

$4.49

$

In Stock, Qty 5

0

0495

Simplicity 703463

NUT, Flange Nylock, 1/4-20, G5

Note: (Qty 1 used on 1696234)

$4.49

$

In Stock, Qty 20+

0

0500

Simplicity 703225

BOLT, Carriage, 5/16-18 x 3/4, G5

$3.99

$

In Stock, Qty 20+

0

0510

Simplicity 1739500BMYP

SUPPORT, Dash

$54.99

$

Usually ships in 2-12 days

0

0520

Simplicity 1701011SM

CABLE TIE

$5.49

$

In Stock, only 2 left!

0

0570

Simplicity 1755059YP

HARNESS, Wiring

$59.99

$

Usually ships in 2-12 days

0

0570

Simplicity 708159

HARNESS, Wiring with Remote Rectifier

Note: (use with Engine Model: 15C107-0034-F8 before Serial No. 2017202381)

$56.99

$

Usually ships in 2-12 days

0

0570

Simplicity 709958

HARNESS, Wiring with Remote Rectifier

Note: (use with Engine Model: 15C107-0034-F8 after Serial No. 2017202381)

$70.99

$

Usually ships in 2-12 days

0

0610

Simplicity 1750522BMYP

BRACKET, Mounting, RH

$13.99

$

Usually ships in 2-12 days

0

0620

Simplicity 1750521BMYP

BRACKET, Mounting, LH

$19.99

$

Usually ships in 2-12 days

0

0640

Simplicity 1739483AYP

POD, Chute Rotation

$35.99

$

Usually ships in 2-12 days

0

0700

Simplicity 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0750

Simplicity 1737552YP

BRACE

Note: (used on 1696235)

$22.99

$

In Stock, only 1 left!

0

0760

Simplicity 703576

BOLT, Carriage, 1/4-20 x 3/4, G5
(Superseded to 703101)

Note: (used on 1696235)

$3.99

$

In Stock, only 3 left!

0

0780

Simplicity 1925592SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/4
(Superseded to 703466)

Note: (used on 1696235)

$3.99

$

In Stock, Qty 11

0

0800

Simplicity 1737510YP

CABLE, Steering Control

Note: (used on 1696235)

$33.99

$

Usually ships in 2-12 days

0

0810

Simplicity 1737511YP

CABLE, Traction Drive

Note: (used on 1696235)

$24.99

$

In Stock, only 1 left!

0

0820

Simplicity 703134

BOLT, Oval Head, 10-24 x 1-1/2

Note: (used on 1696235)

$3.49

$

Usually ships in 2-12 days

0

1050

Simplicity 703059

BOLT, Carriage, 5/16-18 x 2

$4.49

$

In Stock, Qty 15

0

1100

Simplicity 7012652YP

CLIP, Wire

$3.99

$

Usually ships in 2-12 days

0
