M 924 E (1696234-01) - Simplicity 24" Snow Thrower, 9hp Engine & Frame Group - 9TP Parts Diagram

24" Snow Thrower, 9hp

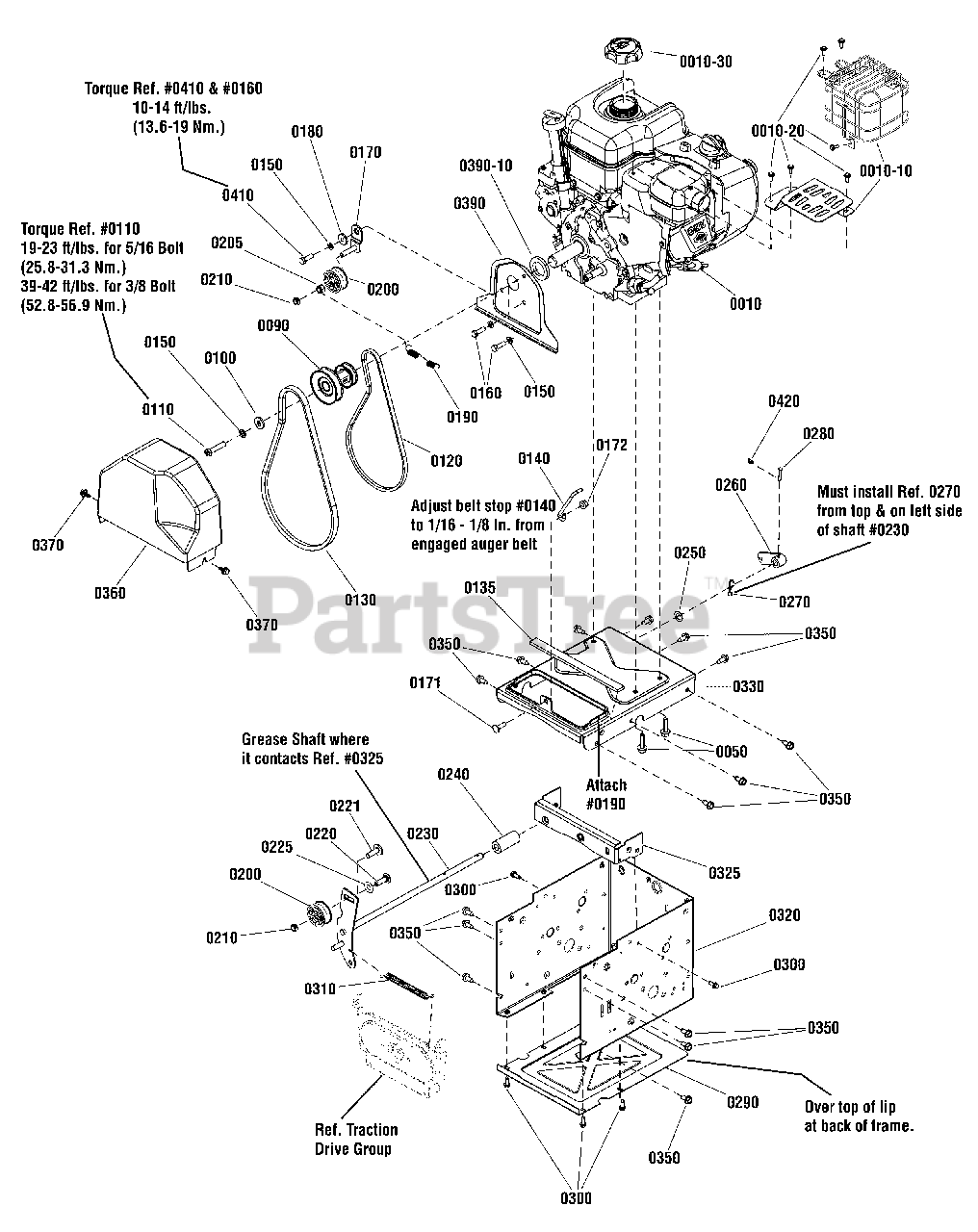

Engine & Frame Group - 9TP Parts Diagram

  • Title

0010

Simplicity 12D107-0166-F8

* ENGINE, 900 Series Briggs & Stratton, Export

$

$

Not available

0010

Simplicity 12D107-0163-F8

* ENGINE, 900 Series Briggs & Stratton, North America

$

$

Not available

0010-10

Simplicity 793193

* GUARD, Muffler, Wire

$55.99

$

Usually ships in 2-12 days

0

0010-10

Simplicity 797003

* GUARD, Muffler, Plate

Note: (Use on Domestic Models Only)

$45.99

$

Usually ships in 2-12 days

0

0010-20

Simplicity 699854

* SCREW, Muffler Guard

$3.99

$

In Stock, Qty 7

0

0010-30

Simplicity 795027

* CAP, Fuel

$10.99

$

In Stock, Qty 20+

0

0010-30

Simplicity 792647

* CAP, Fuel
(Superseded to 795027)

Note: (Use on Domestic Models Only)

$10.99

$

In Stock, Qty 20+

0

0050

Simplicity 75246GS

SCREW, Hex Head, Trilobular, 3/8-16 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

0090

Simplicity 1739514YP

PULLEY ASSEMBLY

$42.99

$

In Stock, only 2 left!

0

0100

Simplicity 703298

WASHER, Flat, 5/16, G5

$4.49

$

Usually ships in 2-12 days

0

0110

Simplicity 7091513YP

CAPSCREW, Hex Head, 5/16-24 x 1-3/4 G5

$4.49

$

In Stock, Qty 13

0

0120

Simplicity 1733324SM

V-BELT, Traction Drive, 3L, 33.13

$19.99

$

In Stock, Qty 20+

0

0130

Simplicity 585416MA

BELT, Auger, V4L 38.10 MF 05-10B

$22.99

$

In Stock, Qty 20+

0

0135

Simplicity 1750314YP

SEAL, Strip

$8.99

$

Usually ships in 2-12 days

0

0140

Simplicity 1737377YP

STOP, Belt

$11.99

$

In Stock, only 1 left!

0

0150

Simplicity 703116

LOCKWASHER, Split, 5/16

$3.49

$

In Stock, Qty 20+

0

0160

Simplicity 703336

CAPSCREW, Hex Head, 5/16-24 x 3/4, G5

$4.49

$

In Stock, Qty 5

0

0170

Simplicity 1739846YP

BRACKET, Idler

$8.99

$

Usually ships in 2-12 days

0

0171

Simplicity 1931335SM

BOLT, Carriage, 5/16-18 x 1, G5
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

0172

Simplicity 703222

NUT, Hex KEPS, 5/16-18

$5.99

$

In Stock, only 2 left!

0

0180

Simplicity 1501065MA

BUSHING, Idler Bracket

$5.49

$

In Stock, only 2 left!

0

0190

Simplicity 165X164MA

SPRING, Extension, Idler

$7.49

$

In Stock, only 3 left!

0

0200

Simplicity 1502120MA

IDLER

$21.99

$

In Stock, Qty 6

0

0205

Simplicity 1919439SM

NUT, Nylock, 3/8-16,G5
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

0210

Simplicity 703230

NUT, Center Lock, 3/8-16

$4.99

$

In Stock, Qty 9

0

0220

Simplicity 703227

BOLT, Carriage, 3/8-16 x 1-1/4

$4.99

$

Usually ships in 2-12 days

0

0221

Simplicity 1960032SM

SCREW, Hex Head, 3/8-16 x 1

$5.49

$

In Stock, only 1 left!

0

0225

Simplicity 1670971SM

WASHER, Thrust, 1/2 ID x 1 OD

Note: (Use with Ref# 220 bolt only)

$4.49

$

In Stock, Qty 6

0

0230

Simplicity 1739574YP

AUGER IDLER

$38.99

$

Usually ships in 2-12 days

0

0240

Simplicity 1739964YP

SPACER, Auger Bracket

$9.49

$

Usually ships in 2-12 days

0

0250

Simplicity 1960027SM

WASHER, 1/2 ID x 7/8 OD
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0260

Simplicity 1733451SM

ARM, Control

$20.99

$

In Stock, only 3 left!

0

0270

Simplicity 703300

PIN, Hair, 3/32 x 1.60, G5

$3.99

$

In Stock, Qty 20+

0

0280

Simplicity 703313

PIN, Clevis

$4.99

$

In Stock, Qty 5

0

0290

Simplicity 1737221BMYP

PANEL, Bottom

$43.99

$

Usually ships in 2-12 days

0

0300

Simplicity 703054

SCREW, Hex Washer Head, Thread Roll, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 5

0

0310

Simplicity 165X159MA

SPRING, Extension, Auger, 5.13"

$6.99

$

In Stock, Qty 9

0

0320

Simplicity 1739107CYP

FRAME BOX

$90.99

$

Usually ships in 2-12 days

0

0325

Simplicity 1739093AYP

ANGLE, Auger & Traction
(Superseded to 1739093BMYP)

$19.99

$

Usually ships in 2-12 days

0

0330

Simplicity 1754138CYP

PLATE, Engine Mount

$42.99

$

Usually ships in 2-12 days

0

0350

Simplicity 703228

SCREW, 5/16-18 X .750, Washer Head Taptite

$4.49

$

In Stock, Qty 20+

0

0360

Simplicity 1750551YP

COVER, Belt

$26.99

$

Usually ships in 2-12 days

0

0370

Simplicity 1751355YP

SCREW, Hex Washer Head, Tap, 1/4-20 x 3/4

$6.49

$

Usually ships in 2-12 days

0

0390

Simplicity 1733868BMYP

PLATE, Seal

$13.99

$

In Stock, only 1 left!

0

0390-10

Simplicity 1733898SM

SEAL, Foam

$6.49

$

Usually ships in 2-12 days

0

0410

Simplicity 703301

BOLT, Hex, 5/16-24 x 1.

$3.99

$

In Stock, only 2 left!

0

0420

Simplicity 7023590SM

PIN, Cotter, Self Lock, 1/4

$3.99

$

In Stock, Qty 20+
