M 924 E (1696234-00) - Simplicity 24" Snow Thrower, 9hp Wheels & Tires Group Parts Diagram

24" Snow Thrower, 9hp

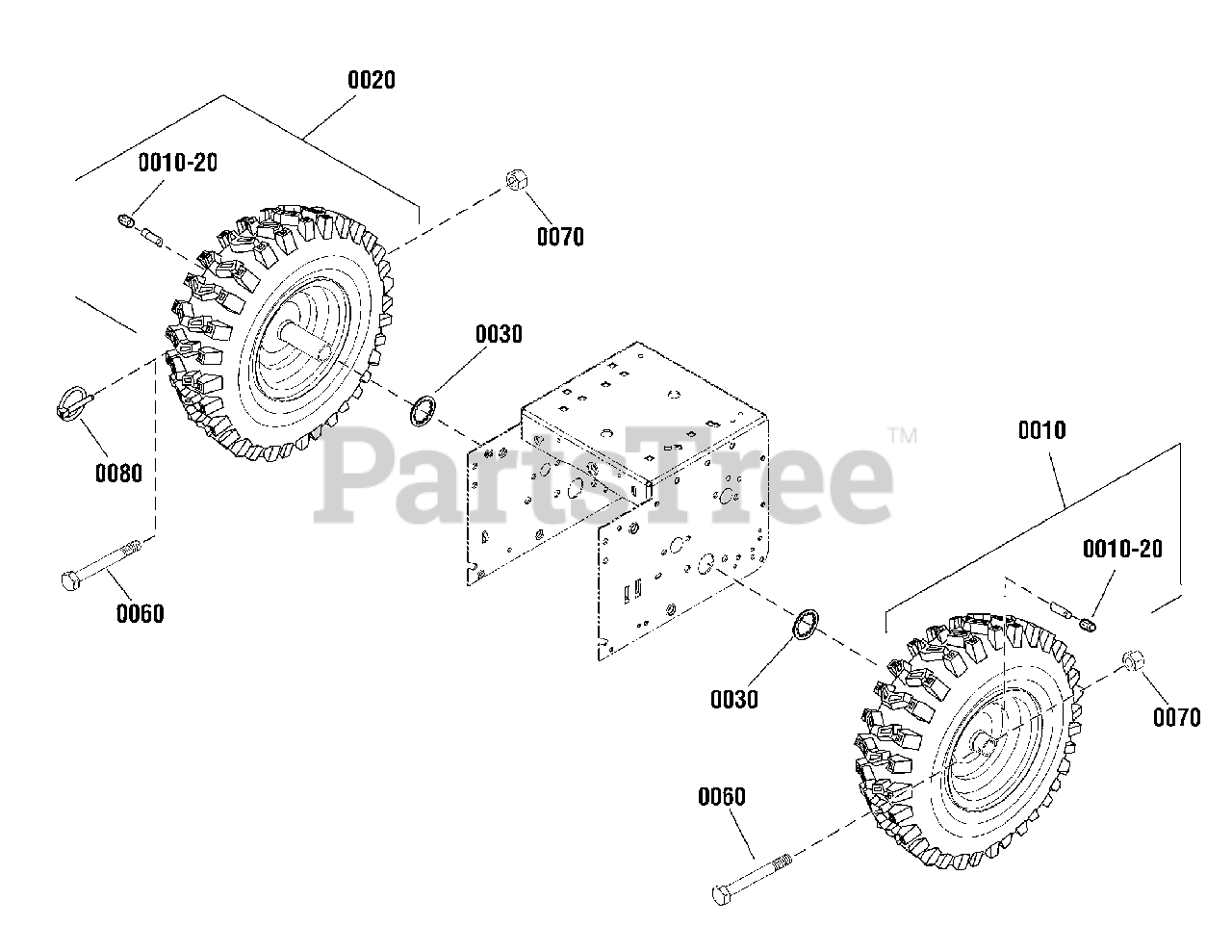

Wheels & Tires Group Parts Diagram

  • Title
0010

Simplicity 1754486YP

WHEEL ASSEMBLY, 15 x 5, LH

Note: (Includes Ref. No. 0010-20)

$165.99

$

Usually ships in 2-12 days

0

0010-20

Simplicity 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

0020

Simplicity 1754487YP

WHEEL ASSEMBLY, 15 x 5, RH
(Superseded to 706971)

Note: (Includes Ref. No. 0010-20)

$128.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1657528SM

RING, Retaining

Note: (Used on 24" Models only)

$4.49

$

In Stock, Qty 20+

0

0060

Simplicity 577015MA

BOLT, Hex Head, 1/4-20 x 1-3/4, G5

Note: (Qty 2 used on 1696235)

$4.99

$

In Stock, only 3 left!

0

0070

Simplicity 703232

NUT, Nylock, 1/4-20

Note: (Qty 2 used on 1696235)

$4.49

$

In Stock, Qty 20+

0

0080

Simplicity 703226

PIN, Klik

Note: (Used on 1696202 & 1696234 only)

$9.99

$

In Stock, only 2 left!

0
