M 530 (CMXGMAM201212) (12A-N2M7791) - Craftsman Walk-Behind Mower (2020) Control Bails Parts Diagram

Walk-Behind Mower

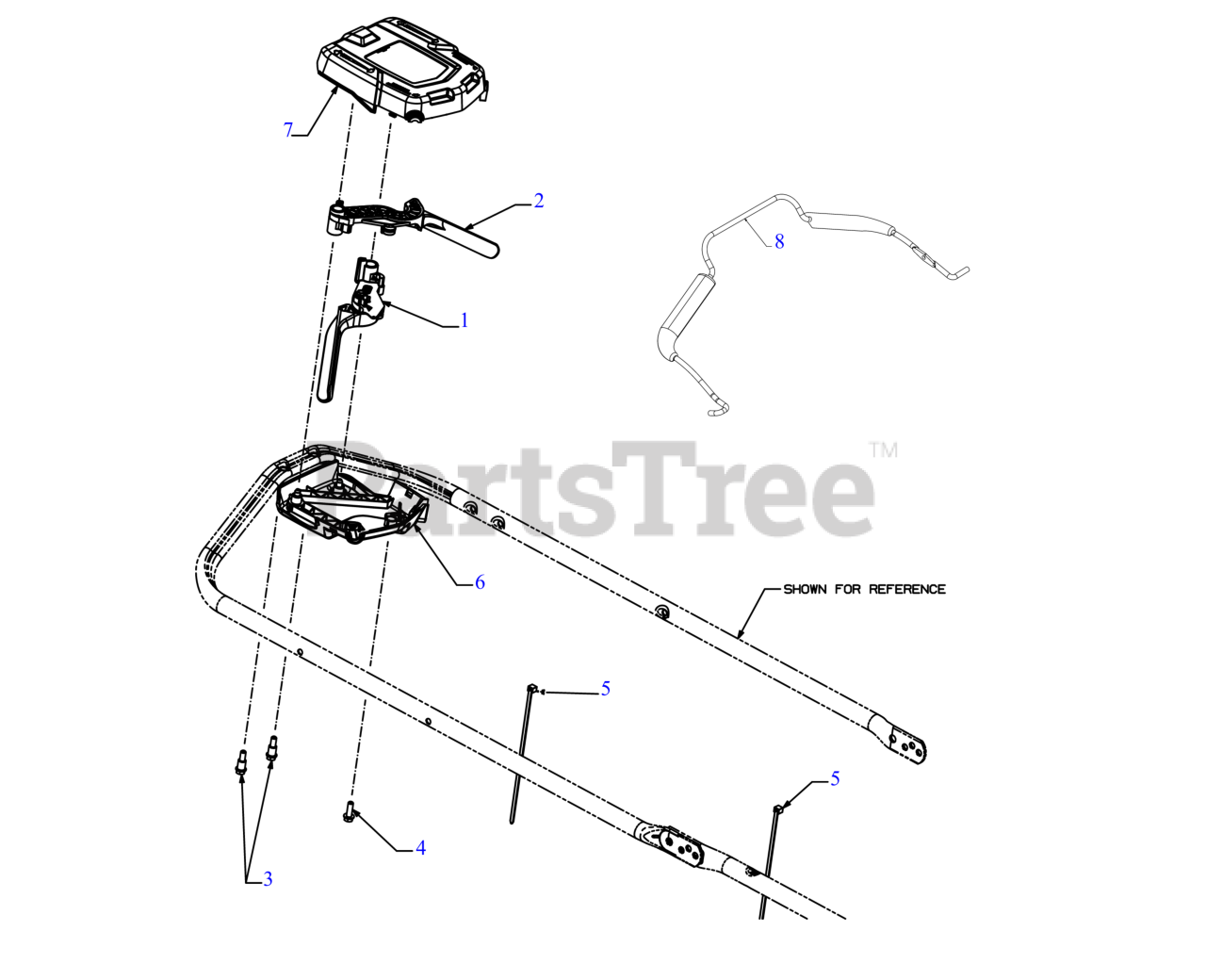

Control Bails Parts Diagram

  • Title

1

MTD 631-07640

CONTROL LEVER (ERGO AWD) (RH)
(Superseded to 631Z07640)

$53.99

$

Usually ships in 3-6 days

0

2

MTD 631-07641

CONTROL LEVER (ERGO AWD) (LH)
(Superseded to 631Z07641)

$53.99

$

Usually ships in 3-6 days

0

3

MTD 710-05204

SHOULDER SCREW 1/4-15 x .970

$3.99

$

In Stock, Qty 18

0

4

MTD 710-0895

SCREW 1/4-15 x .750

$6.49

$

In Stock, Qty 6

0

5

MTD 725-0157

7" CABLE TIE

$3.99

$

In Stock, Qty 20+

0

6

MTD 731-12360

LOWER CONTROL HOUSING

$20.99

$

In Stock, only 1 left!

0

7

MTD 731-12361

UPPER CONTROL HOUSING

$23.99

$

Usually ships in 3-6 days

0

8

MTD 631-07639

OPERATOR BAIL (AWD) (LIBERTY RED)

$46.99

$

Usually ships in 3-6 days

0
