M 53 S Pro (953534801) - Husqvarna Walk-Behind Mower (2007-01) WHEELS & TIRES Parts Diagram

Walk-Behind Mower

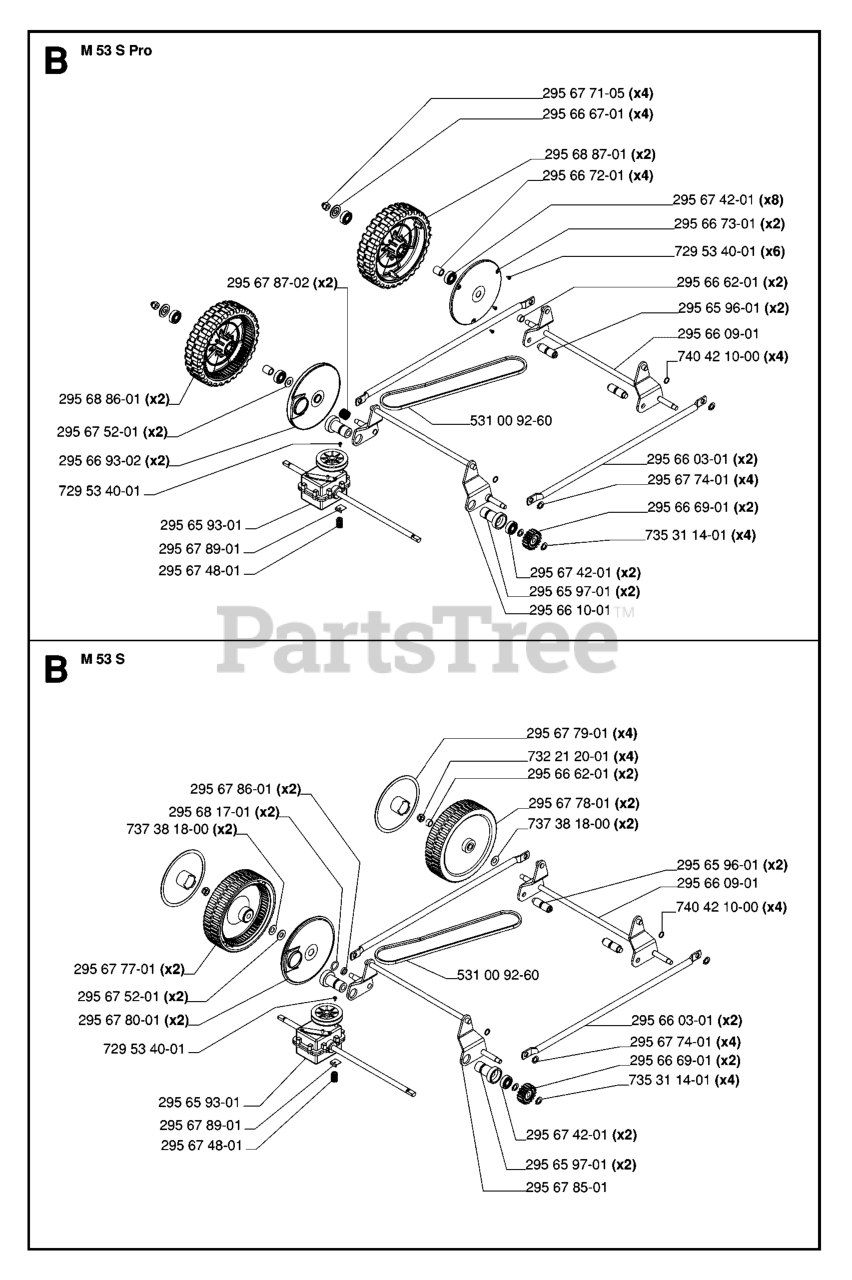

WHEELS & TIRES Parts Diagram

  • Title

295 67 77-01

Husqvarna 295677701

WHEEL DRIVING

$

$

Not available

295 66 62-01

Husqvarna 295666201

SPACER M53 L=9

$

$

Not available

735 31 14-01

Husqvarna 735311401

NEEDS DESCRIPTION

$

$

Not available

295 68 17-01

Husqvarna 295681701

O-RING BS 4518

$

$

Not available

729 53 40-01

Husqvarna 729534001

SCREW RXS B8X9.5

$3.49

$

In Stock, Qty 11

0

295 67 79-01

Husqvarna 295677901

HUB CAP DRIVING

$

$

Not available

531 00 92-60

Husqvarna 531009260

NEEDS DESCRIPTION

$

$

Currently unavailable

729 53 40-01

Husqvarna 729534001

SCREW RXS B8X9.5

$3.49

$

In Stock, Qty 11

0

740 42 10-00

Husqvarna 740421000

RETAINING RING

$6.49

$

In Stock, only 1 left!

0

295 66 69-01

Husqvarna 295666901

PINION PRO

$

$

Not available

295 66 09-01

Husqvarna 295660901

AXLE ASSY M53 PRO

$

$

Not available

295 67 89-01

Husqvarna 295678901

BRACKET M53 / M48

$

$

Not available

295 67 42-01

Husqvarna 295674201

BALL BEARING 6201-2RS/C3 W10

$

$

Not available

295 67 80-01

Husqvarna 295678001

SHIELD DRIVING

$

$

Not available

295 67 71-05

Husqvarna 295677105

NUT M53S / M48S

$

$

Not available

732 21 20-01

Husqvarna 732212001

NUT

$4.99

$

Usually ships in 3-10 days

0

295 65 93-01

Husqvarna 295659301

GEAR BOX M53S

$

$

Not available

295 68 87-01

Husqvarna 295688701

WHEEL ASSY PRO

$

$

Not available

295 66 10-01

Husqvarna 295661001

AXLE ASSY M53S PRO

$

$

Not available

295 66 03-01

Husqvarna 295660301

ROD M53

$

$

Not available

295 67 48-01

Husqvarna 295674801

SPRING M53S / M48S

$

$

Not available

295 67 52-01

Husqvarna 295675201

SPACER WASHER M53S / M48S

$

$

Not available

295 65 97-01

Husqvarna 295659701

SHAFT M53S / M48S

$

$

Not available

295 65 96-01

Husqvarna 295659601

SHAFT M53 / M48

$

$

Not available

295 67 74-01

Husqvarna 295677401

RING M53S / M48S

$

$

Not available

295 67 87-02

Husqvarna 295678702

SPRING M53 / M48

$

$

Not available

295 68 86-01

Husqvarna 295688601

WHEEL ASSY PRO, DRIVING

$

$

Not available

737 38 18-00

Husqvarna 737381800

NEEDS DESCRIPTION

$

$

Currently unavailable

295 67 85-01

Husqvarna 295678501

AXLE ASSY M53

$

$

Not available

295 67 42-01

Husqvarna 295674201

BALL BEARING 6201-2RS/C3 W10

$

$

Not available

295 66 93-02

Husqvarna 295669302

SHIELD PRO

$

$

Not available

295 66 67-01

Husqvarna 295666701

WASHER M48

$

$

Not available

295 66 73-01

Husqvarna 295667301

SHIELD PRO

$

$

Not available

295 66 72-01

Husqvarna 295667201

SPACER PRO

$

$

Not available

295 67 78-01

Husqvarna 295677801

WHEEL DRIVING

$

$

Not available

295 67 86-01

Husqvarna 295678601

SPACER M53

$

$

Not available
