M 430 (CMGM231204) (12ABW6T6793) - Craftsman Walk-Behind Mower (2023) Grassbag Parts Diagram

Walk-Behind Mower

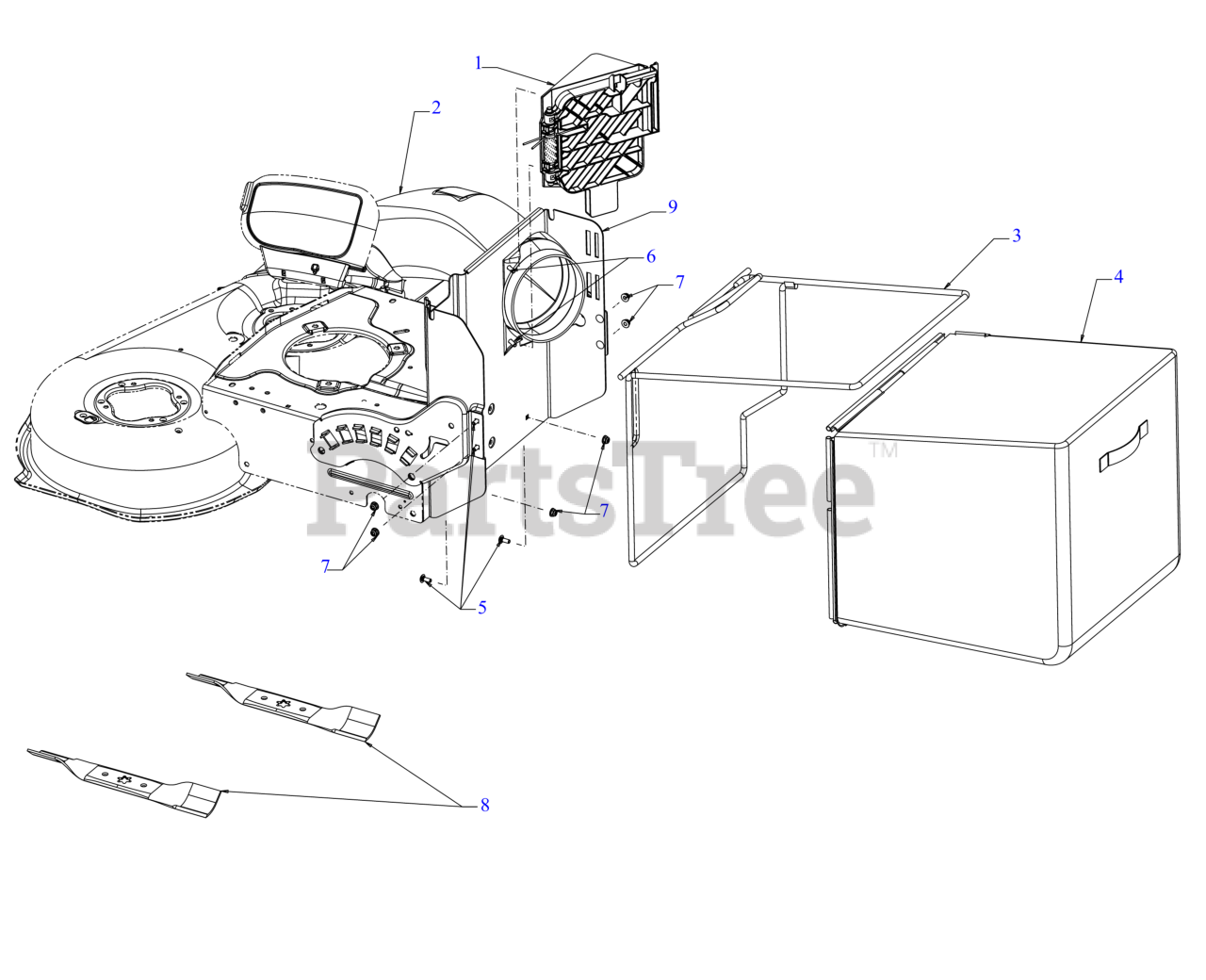

Grassbag Parts Diagram

  • Title

1

MTD 631-05335B

GRASSBAG DOOR ASSEMBLY

$53.99

$

Usually ships in 3-6 days

0

1

MTD 747-06290B

CHUTE HINGE PIN

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

1

MTD 750-0885A

SPACER

Note: (Not Shown)

$11.99

$

Usually ships in 3-6 days

0

1

MTD 726-0135

SPEED NUT

Note: (Not Shown)

$6.99

$

In Stock, only 1 left!

0

2

MTD 931-05337

CHUTE ASSEMBLY

$135.99

$

Usually ships in 3-6 days

0

2

MTD 712-04064

FLANGE LOCK NUT

Note: (Not Shown)

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-0751

SCREW 1/4-20 x .620 GR5

Note: (Not Shown)

$3.99

$

In Stock, Qty 20+

0

2

MTD 736-0173

FLAT WASHER .28 ID x .74 OD x .063

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

3

MTD 647-05065-0637

GRASSBAG FRAME (POWDER BLACK)

$81.99

$

In Stock, only 1 left!

0

4

MTD 664-05701

28" GRASSBAG

$57.99

$

In Stock, only 1 left!

0

5

MTD 710-0134

CARRIAGE BOLT 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-05108

SCREW 1/4 x .750

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

8

MTD 942-05235

BLADE (HI LIFT) (14.2)

$28.99

$

In Stock, only 2 left!

0

9

MTD 787-03589-0637

GRASSBAG SUPPORT BRACKET (POWDER BLACK)

$112.99

$

Usually ships in 3-6 days

0
