M 380 (12ABR27B791) - Craftsman Walk-Behind Mower (2022) Drive Parts Diagram

Walk-Behind Mower

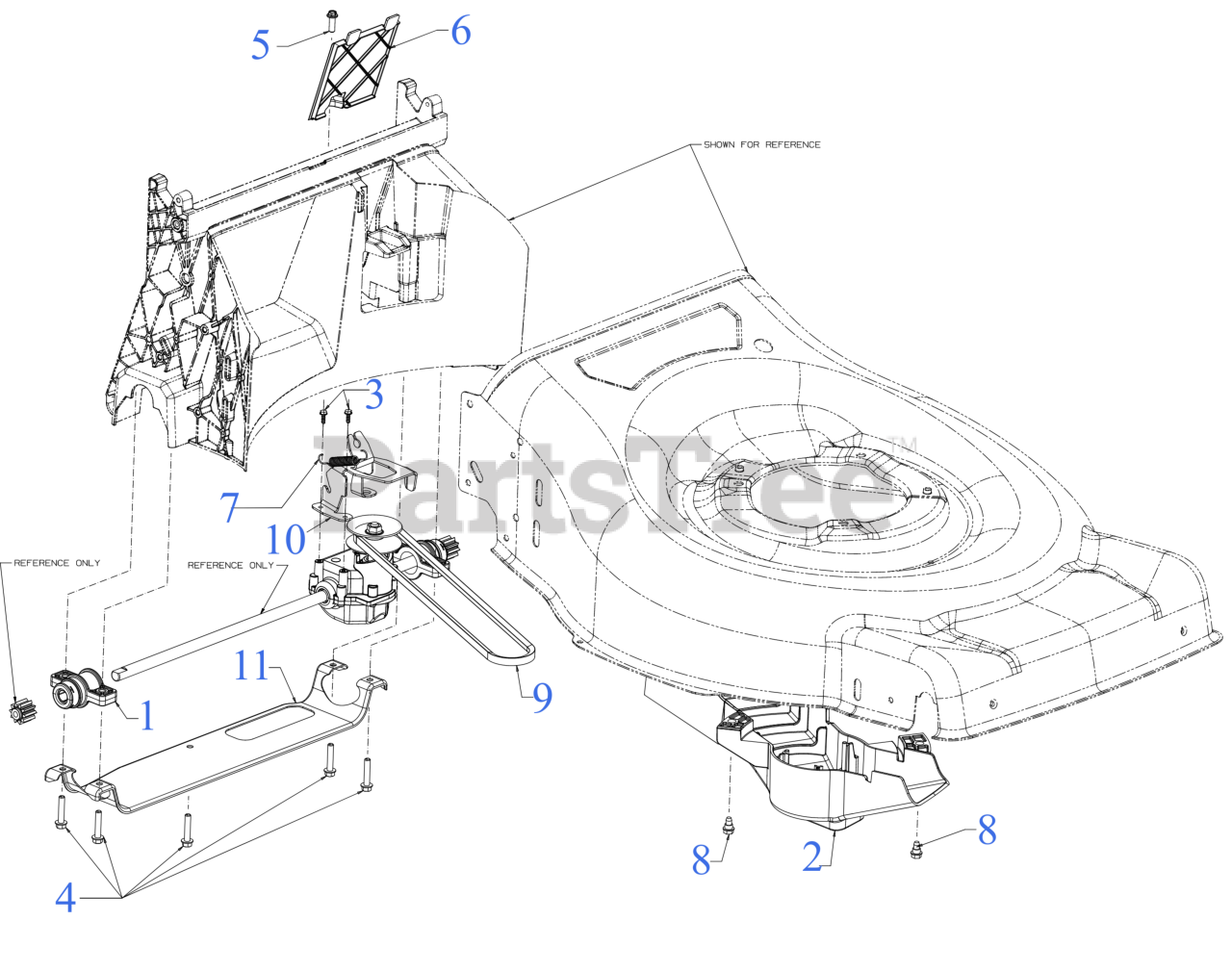

Drive Parts Diagram

  • Title
1

MTD 631-04501A

BEARING ASSEMBLY

$6.99

$

In Stock, only 1 left!

0

2

MTD 631P05940

23" BAFFLE (CENTER)

$40.99

$

Usually ships in 3-6 days

0

3

MTD 710-04374

SCREW .159 x .43

$3.99

$

In Stock, Qty 11

0

4

MTD 710-04774

SCREW 1/4-15 x 1.250

$4.99

$

Usually ships in 3-6 days

0

5

MTD 710-05108

SCREW 1/4 x .750

$3.99

$

In Stock, Qty 20+

0

6

MTD 731-14171

23" BAFFLE DOOR

$5.99

$

Usually ships in 3-6 days

0

7

MTD 732-05150A

EXTENSION SPRING 2.675"

$4.49

$

In Stock, Qty 10

0

8

MTD 738-04502

SHOULDER SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

9

MTD 754P05934

V-BELT 3L x 33.25"

$28.99

$

Usually ships in 3-6 days

0

10

MTD 787-01868B

TRANSMISSION BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$7.49

$

Usually ships in 3-6 days

0

11

MTD 787-04124

23" SUPPORT BRACKET

$20.99

$

Usually ships in 3-6 days

0
